DeskPi Super4C Raspberry Pi CM5 Cluster Mini-ITX Board, ESP32-WROOM-32E-N4 Module, Supports 2.4GHz Wi-Fi + Bluetooth, Power Supply Included

Description:

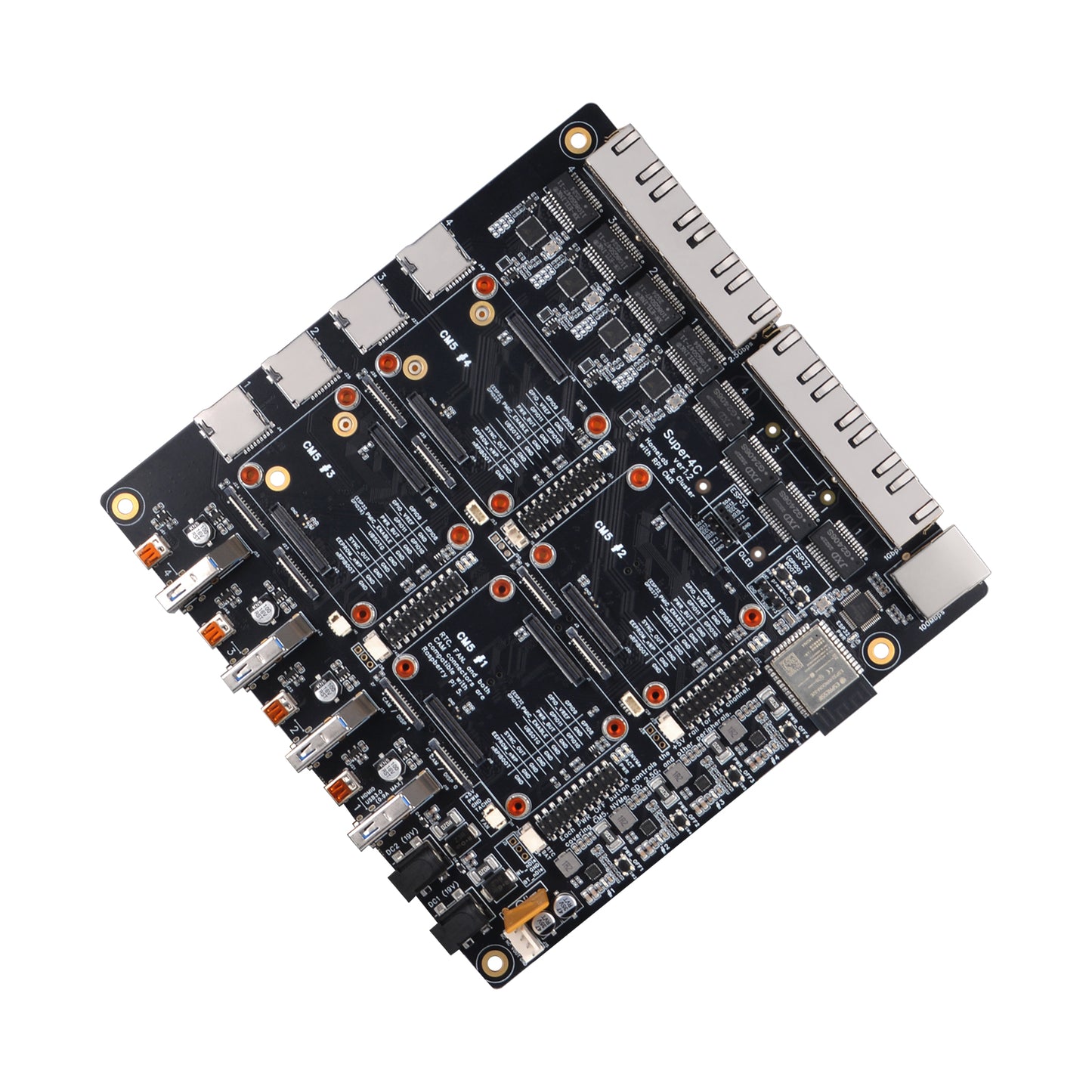

Super4C is a cluster-based hardware built on the Raspberry Pi CM5. This hardware supports four channels of CM5 and extends almost all interfaces of the CM5, providing users with powerful device connectivity. Additionally, the hardware integrates an ESP32 processing module, offering remote management capabilities for the entire cluster device.

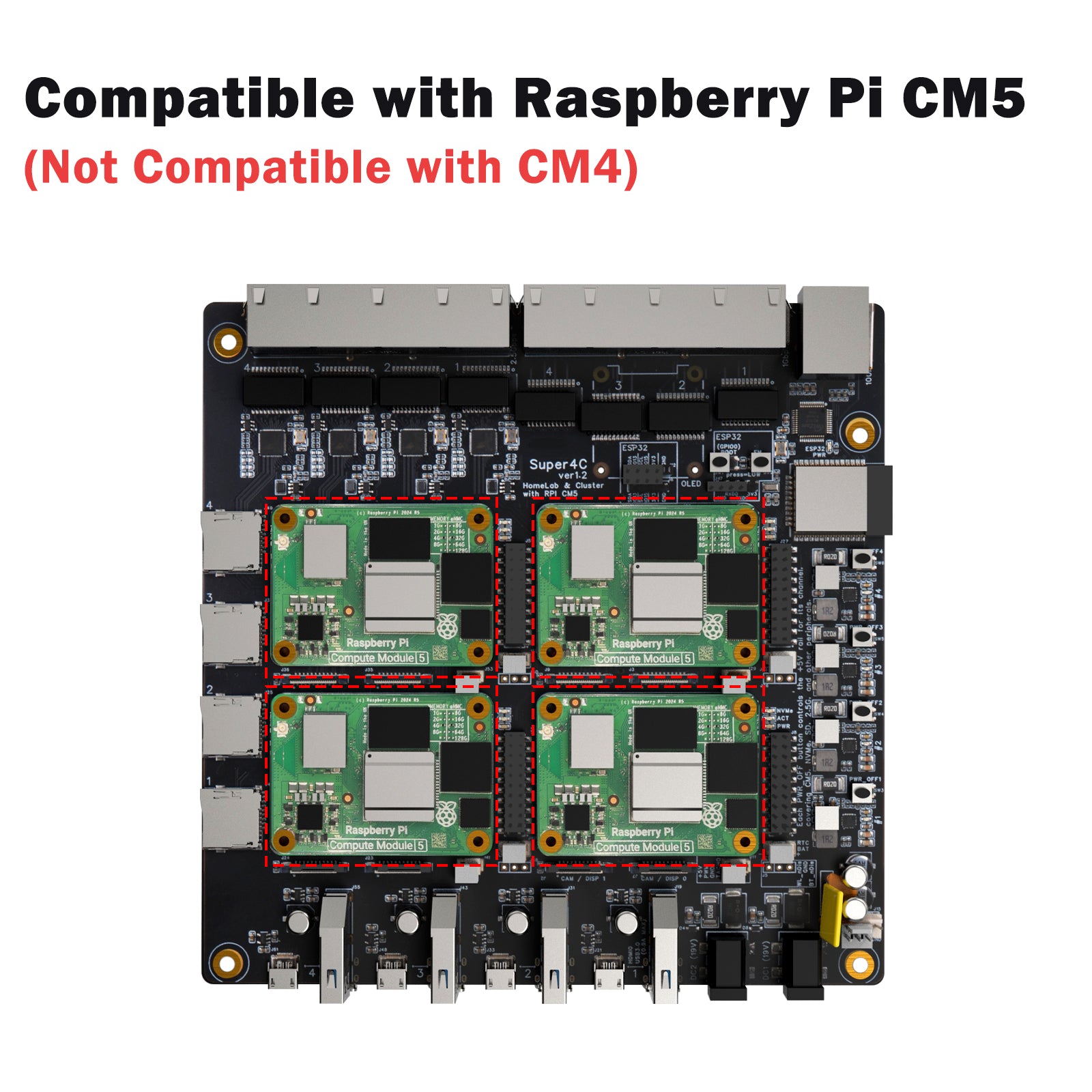

It is compatible with Raspberry Pi CM5 ONLY.

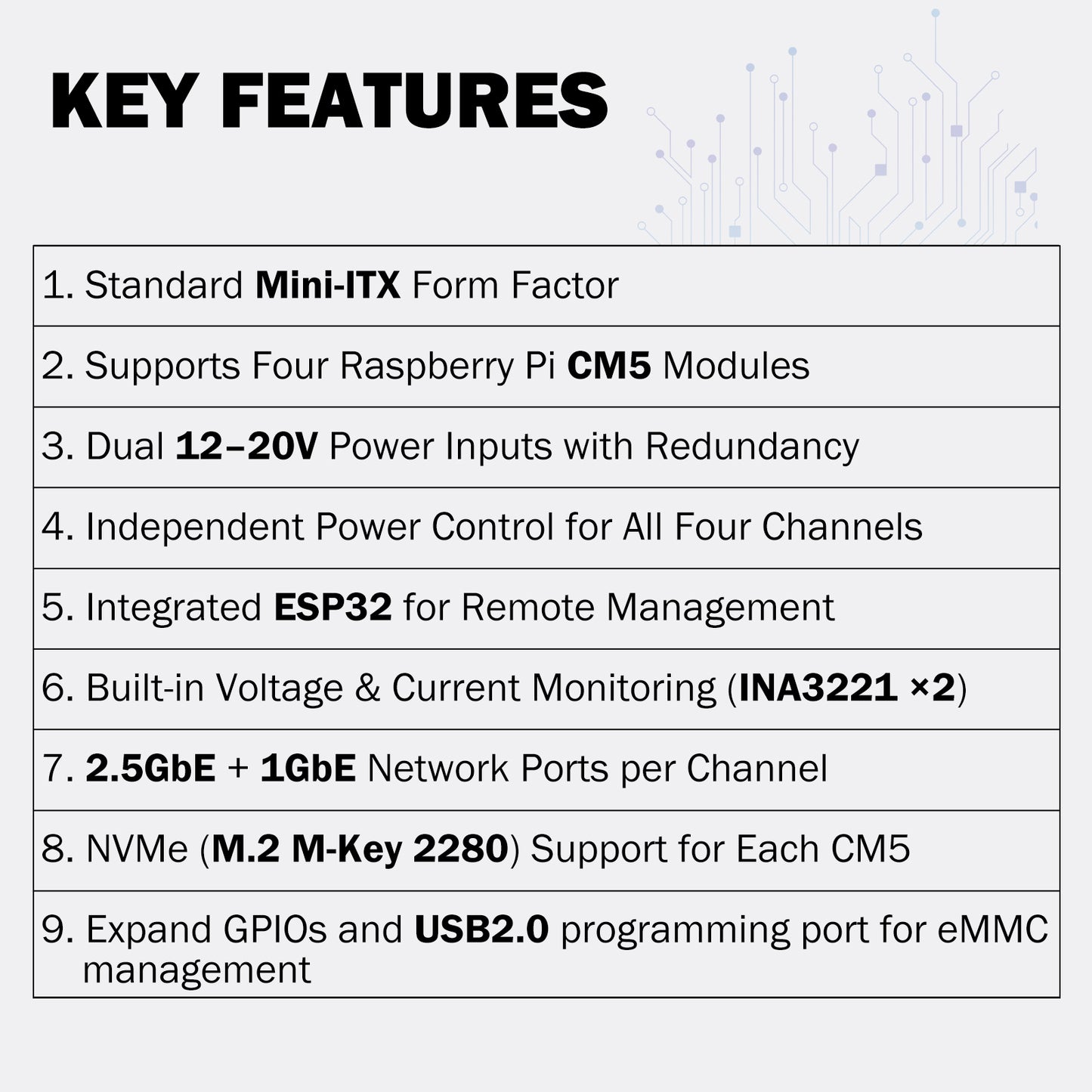

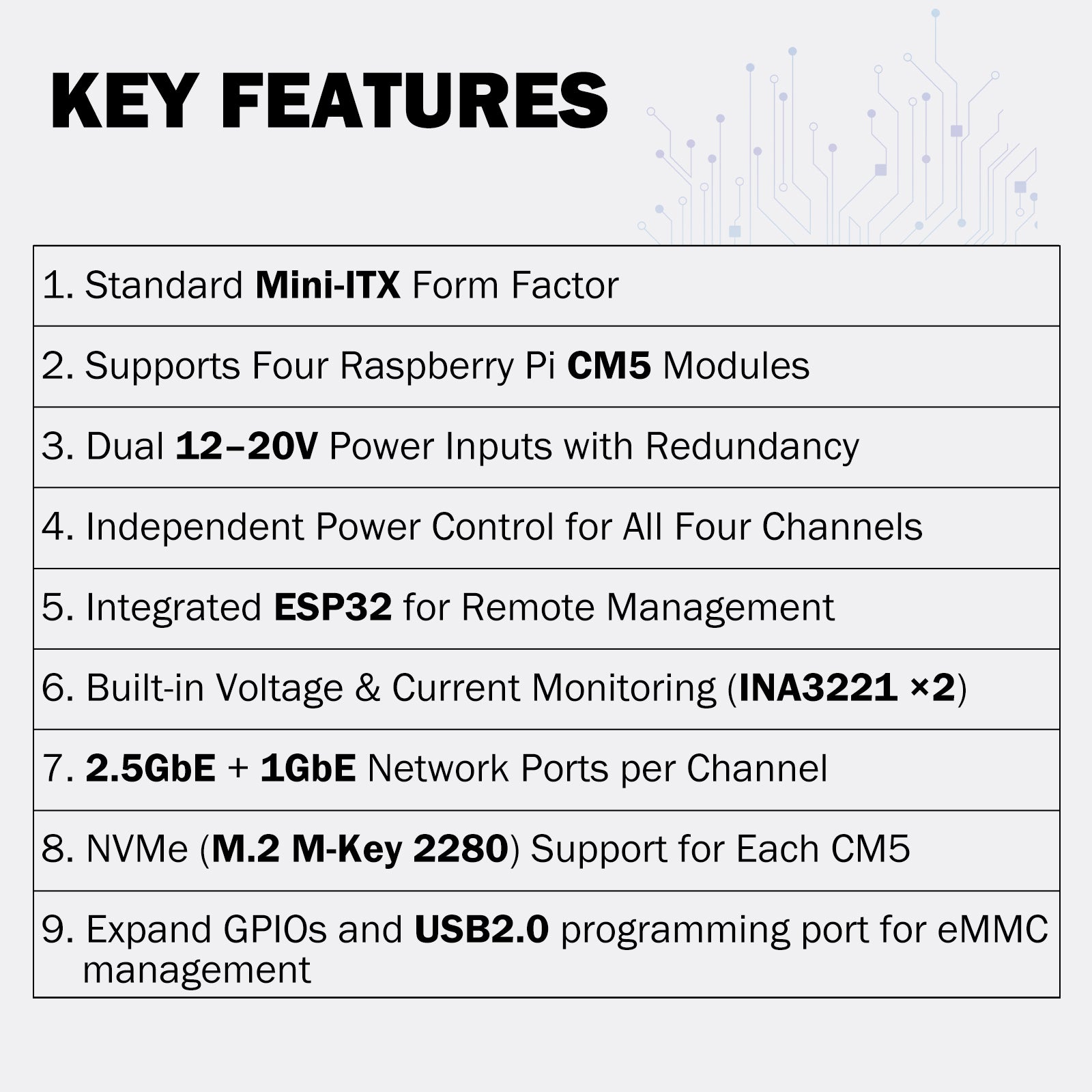

Features:

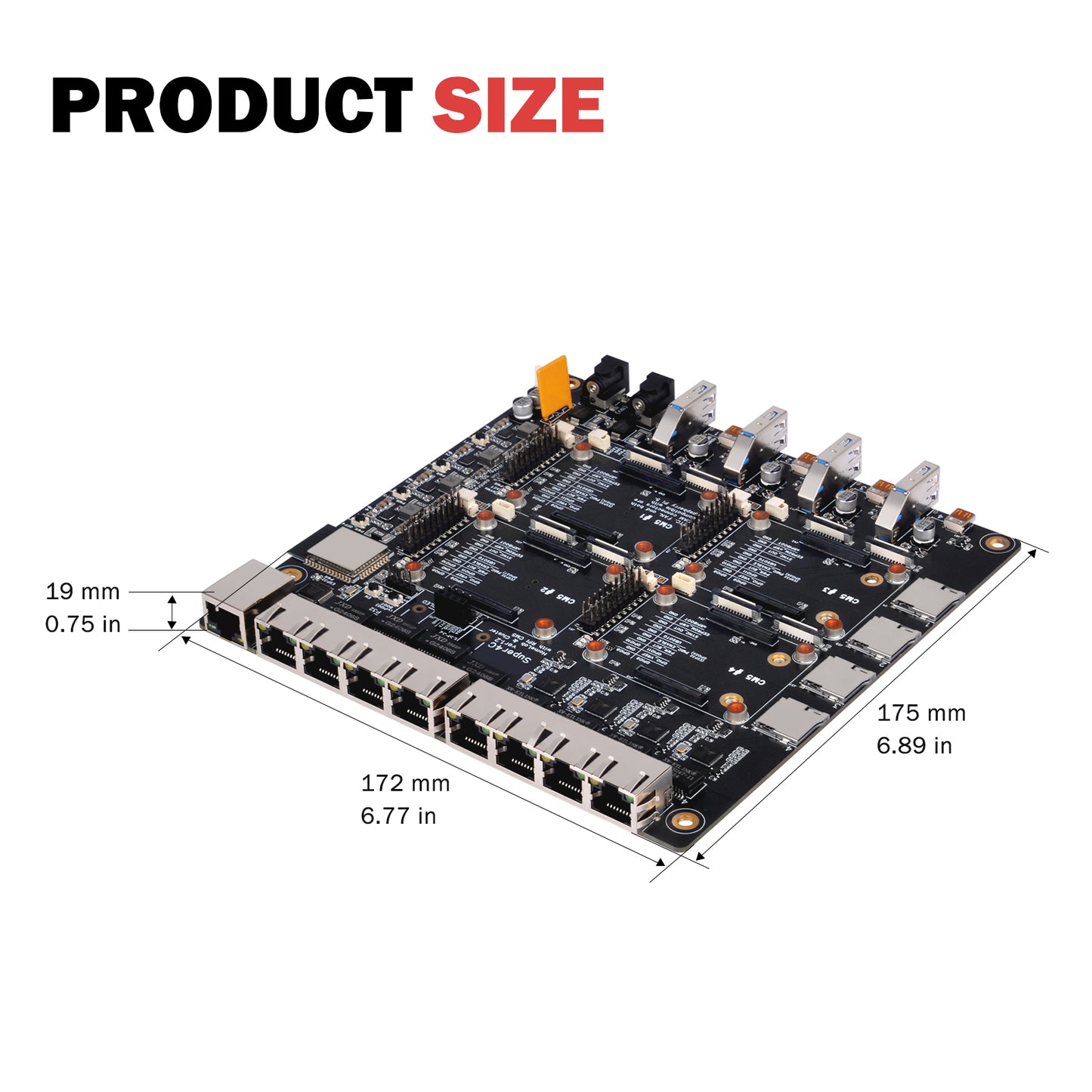

• Standard mini ITX form factor, supports all Raspberry Pi CM5 modules

• External DC 19V/4.73A power input with redundant interface support and reverse polarity protection
• Four-channel independent DC/DC conversion to provide power for following two parts:
• Independent power reset button (simultaneously resets CM5, NVMe, 2.5Gbps, 1Gbps, SD card, CAM0/1, etc.)
• Hardware power - on delay (approximately 0.5 seconds each) to avoid inrush current from simultaneous power on

• Jumper interface (to disable eMMC, EEPROM, etc.)
• Integrated ESP32-WROOM-32E-N4 module
• Supports 2.4GHz Wi - Fi + Bluetooth with integrated antenna

• 4-pin UART download interface; 4-pin I2C expansion interface (for expanding OLED screens, etc.)
• Expanded W5500 100Mbps wired network

• Two integrated INA3221 chips for measuring voltage and current of six channels on the board
• ESP32 pins can individually control the power switch for each channel and the PMIC_EN signal switch for CM5

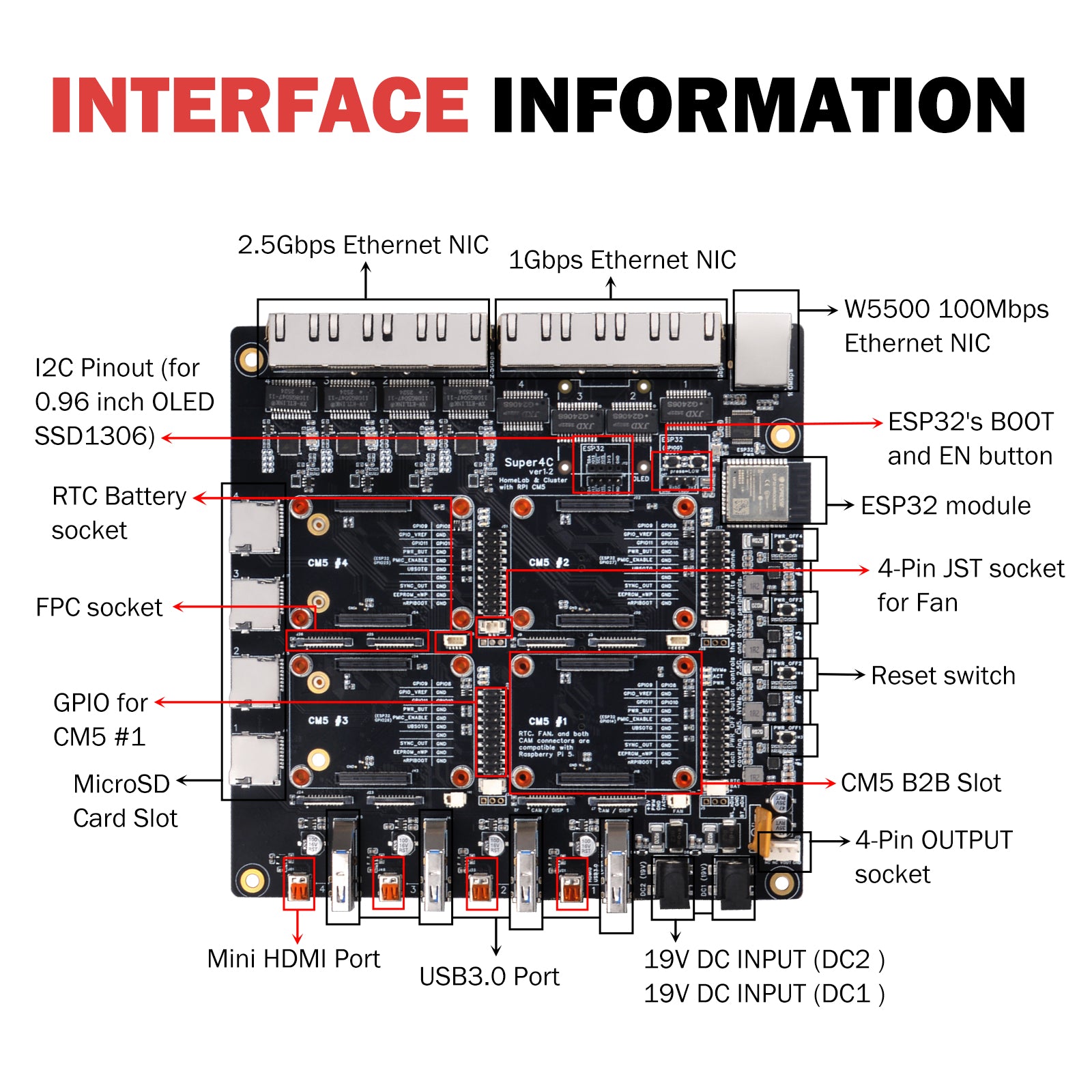

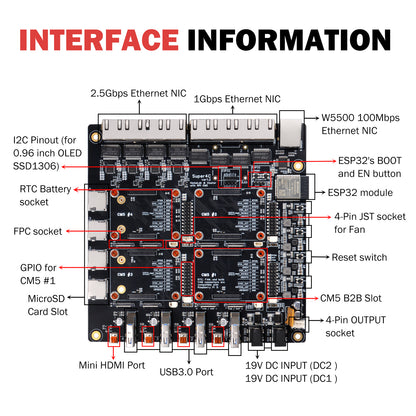

Supports up to four CM5 modules per channel, each with:

• 1x micro HDMI interface
• 1x USB 3.0 interface

• 1x USB 2.0 interface (Type-C connector, no VBUS output)

• 1x 1Gbps Ethernet interface

• 1x microSD card interface

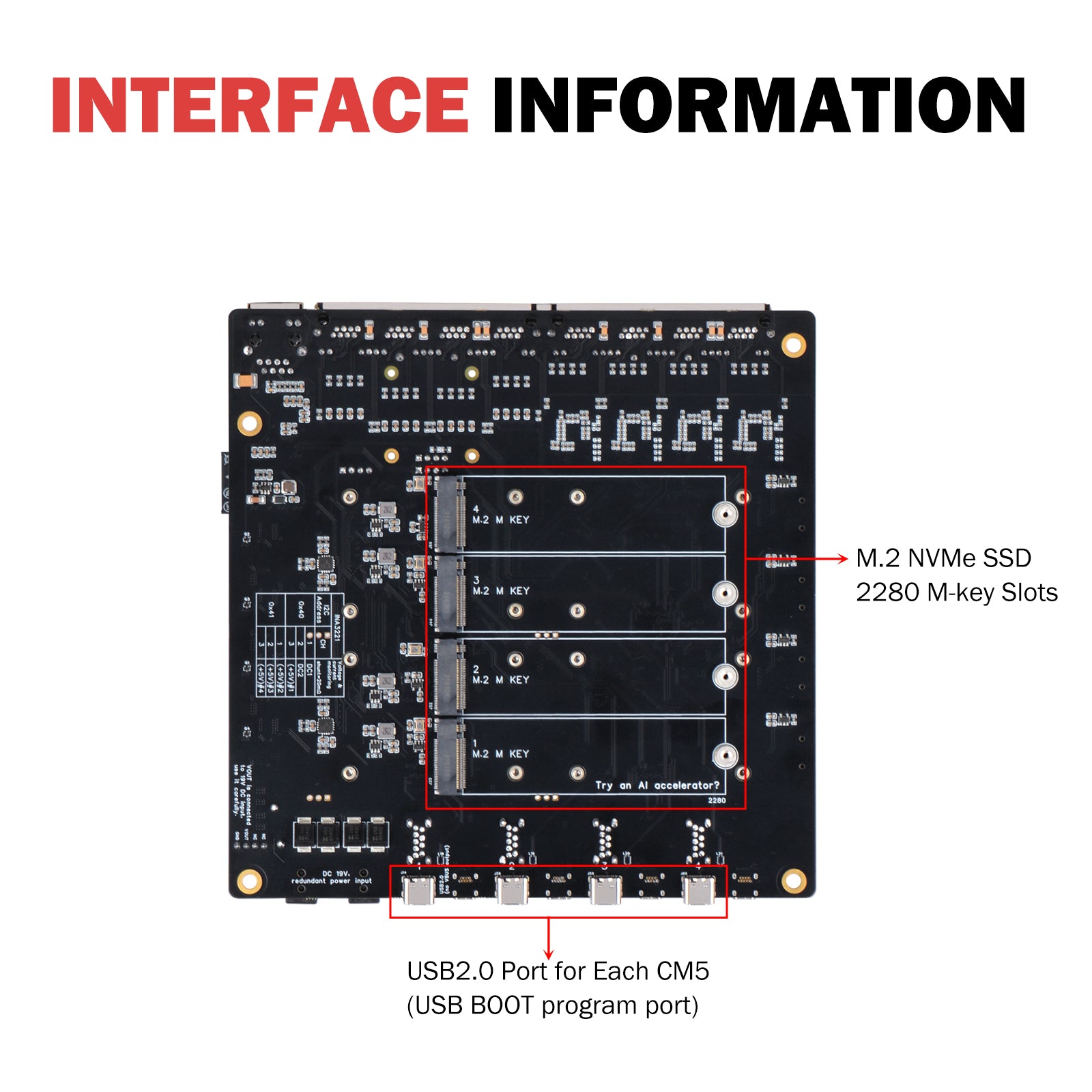

• 1x M.2 M-key PCIe interface

• 1x 4-pin JST-SH PWM fan interface

• 1x RTC battery interface

• 2x MIPI DSI/CSI - 2 interfaces

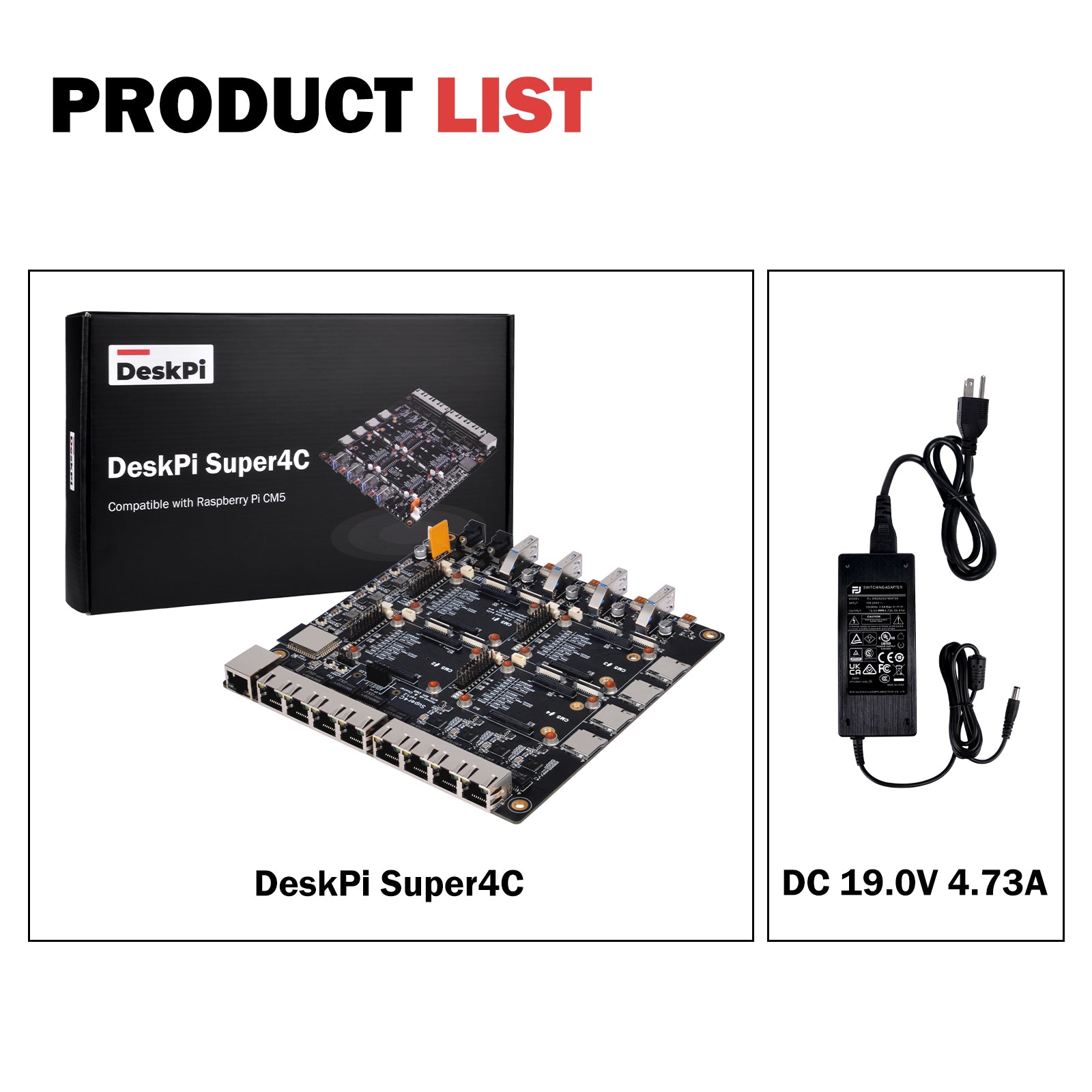

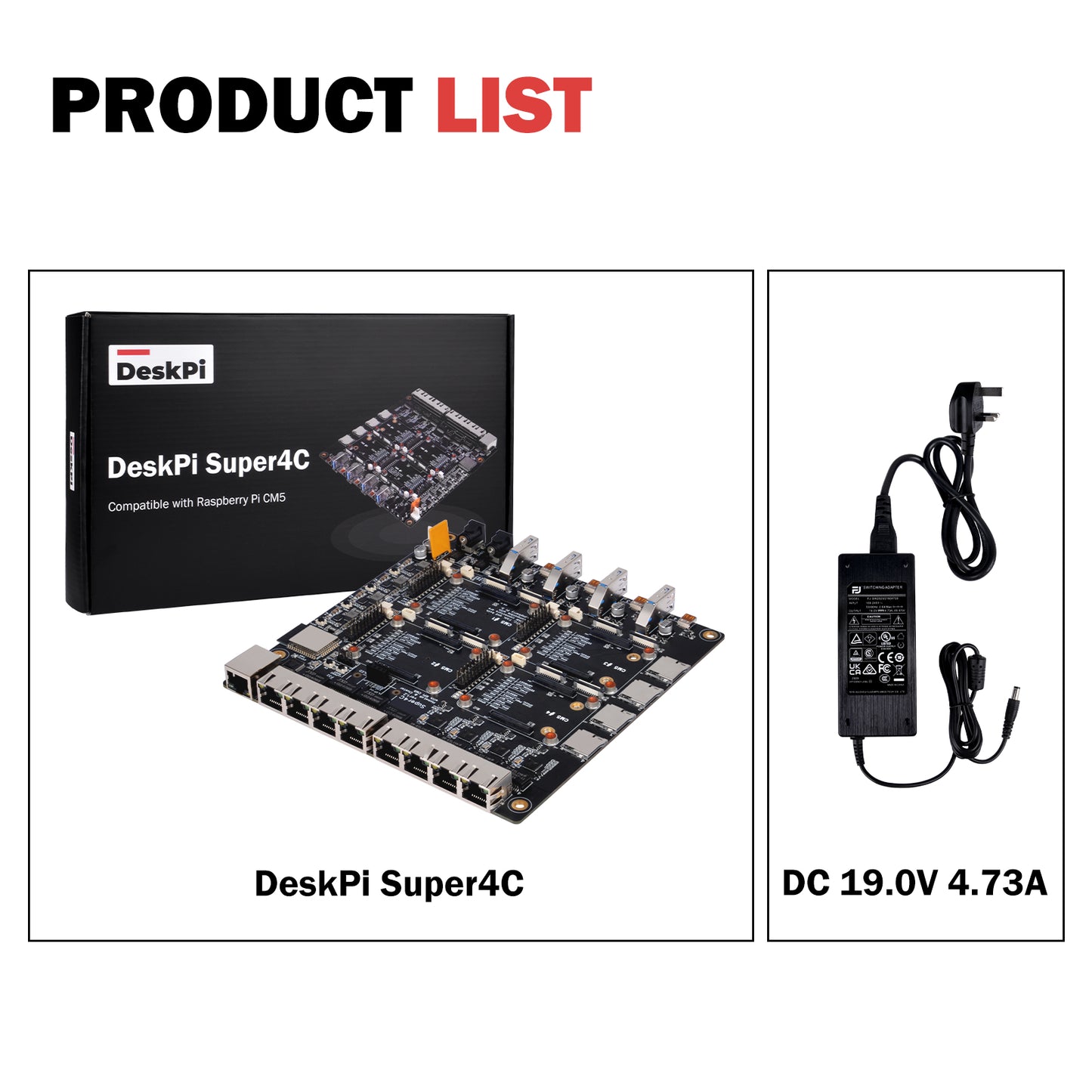

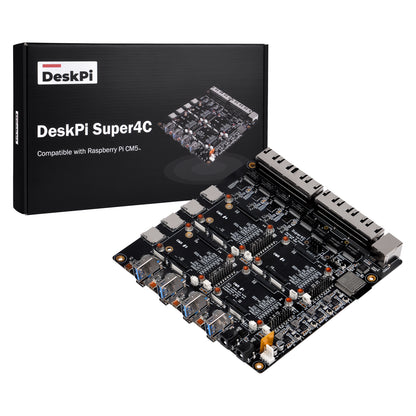

Package Includes:

Note:  Raspberry Pi CM5 board are not included

Wiki:

https://wiki.deskpi.com/super4c/
