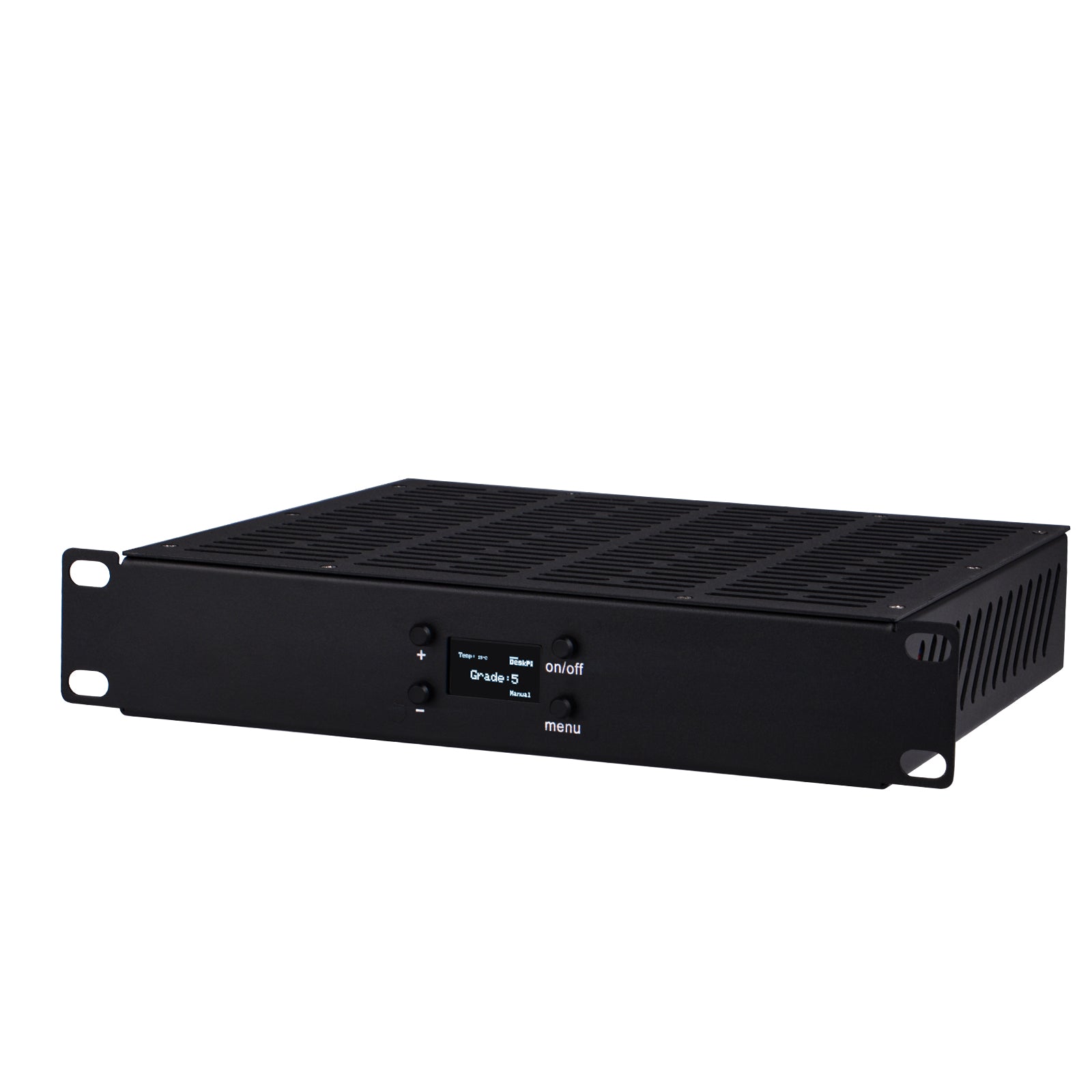

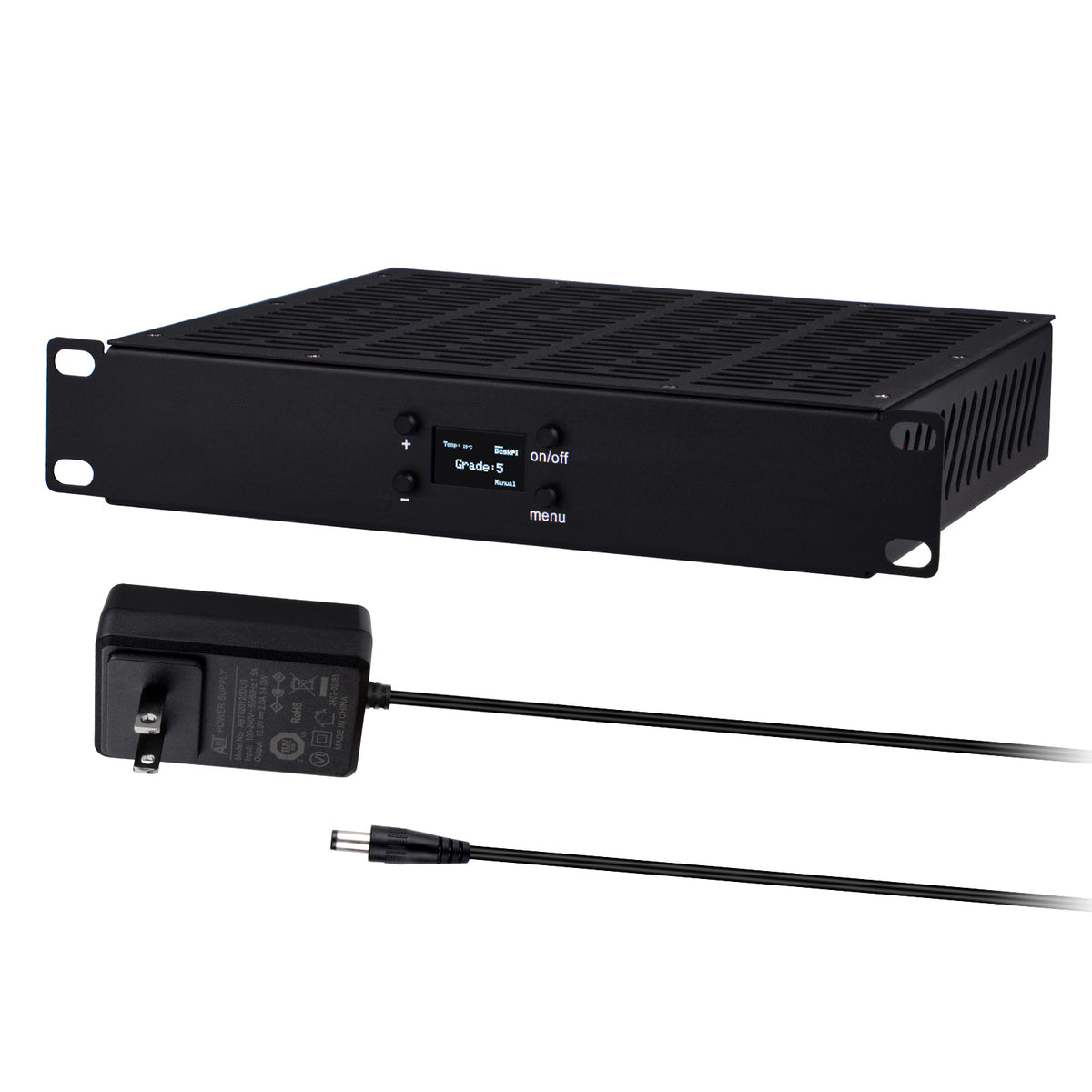

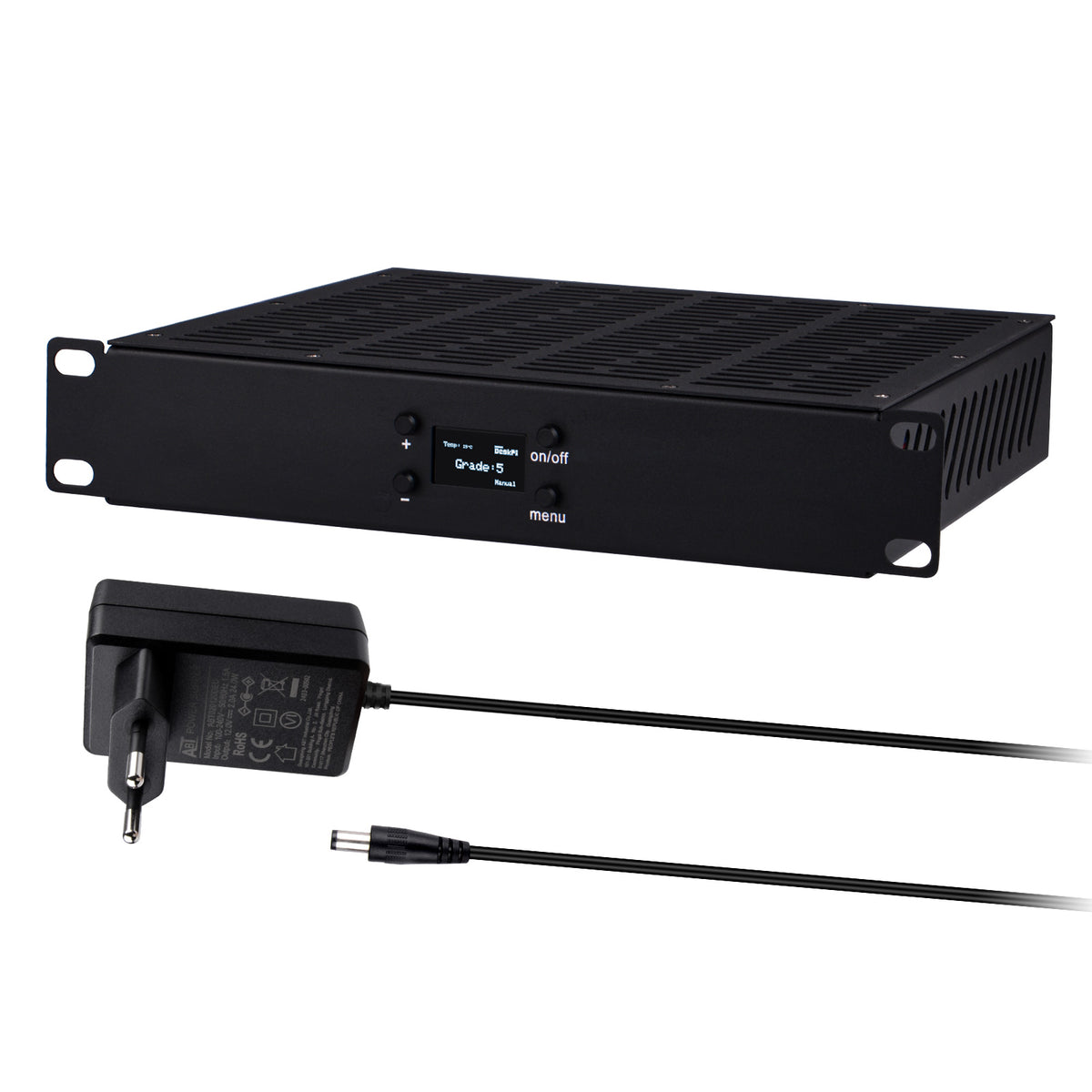

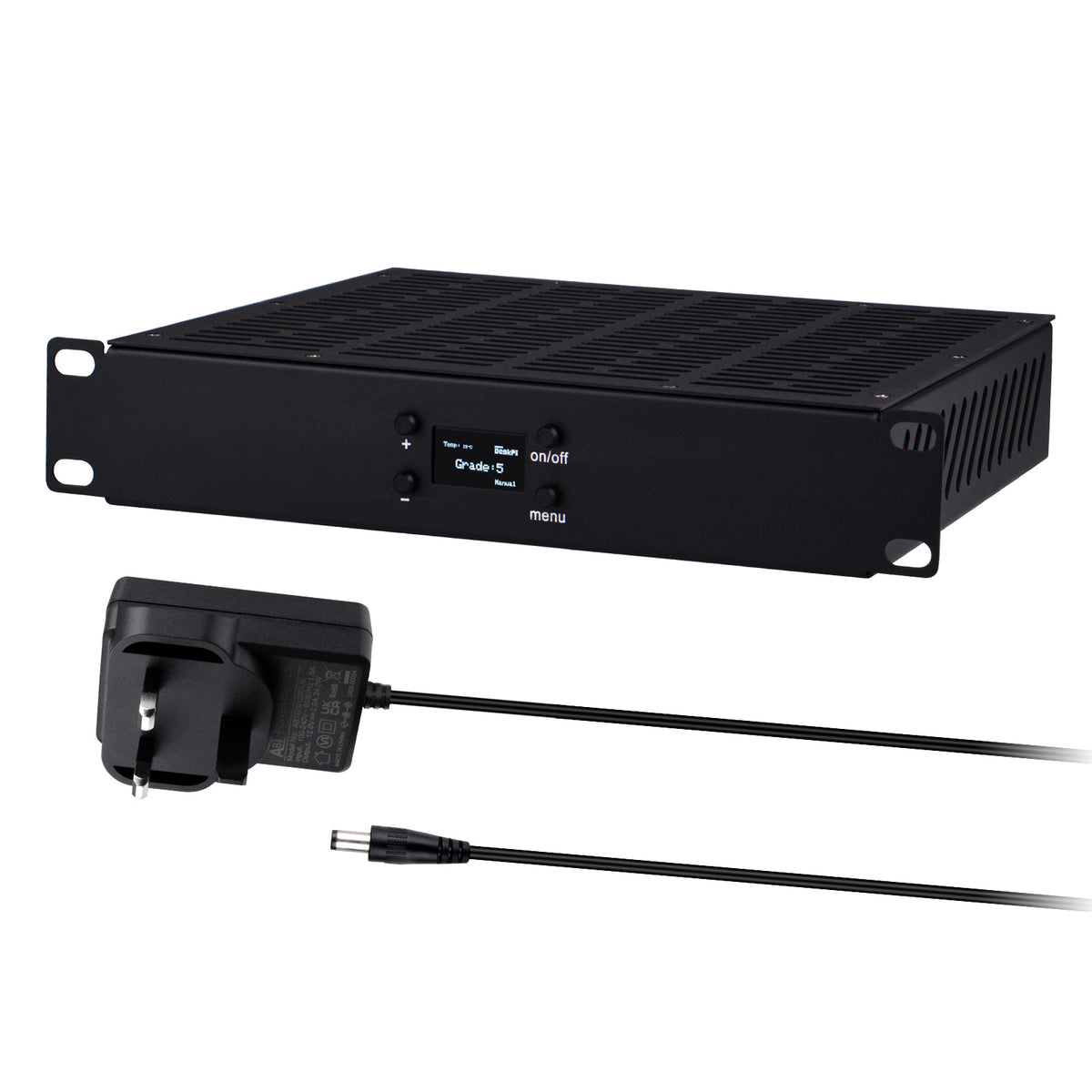

DeskPi RackMate Accessories 10-Inch 1U Quad Cooling Fan Panel

Descriptions:

The 10-Inch 1U Rackmount Quad Fan Cooling Panel is a 1U-height active cooling module designed specifically for 10-inch rack systems.

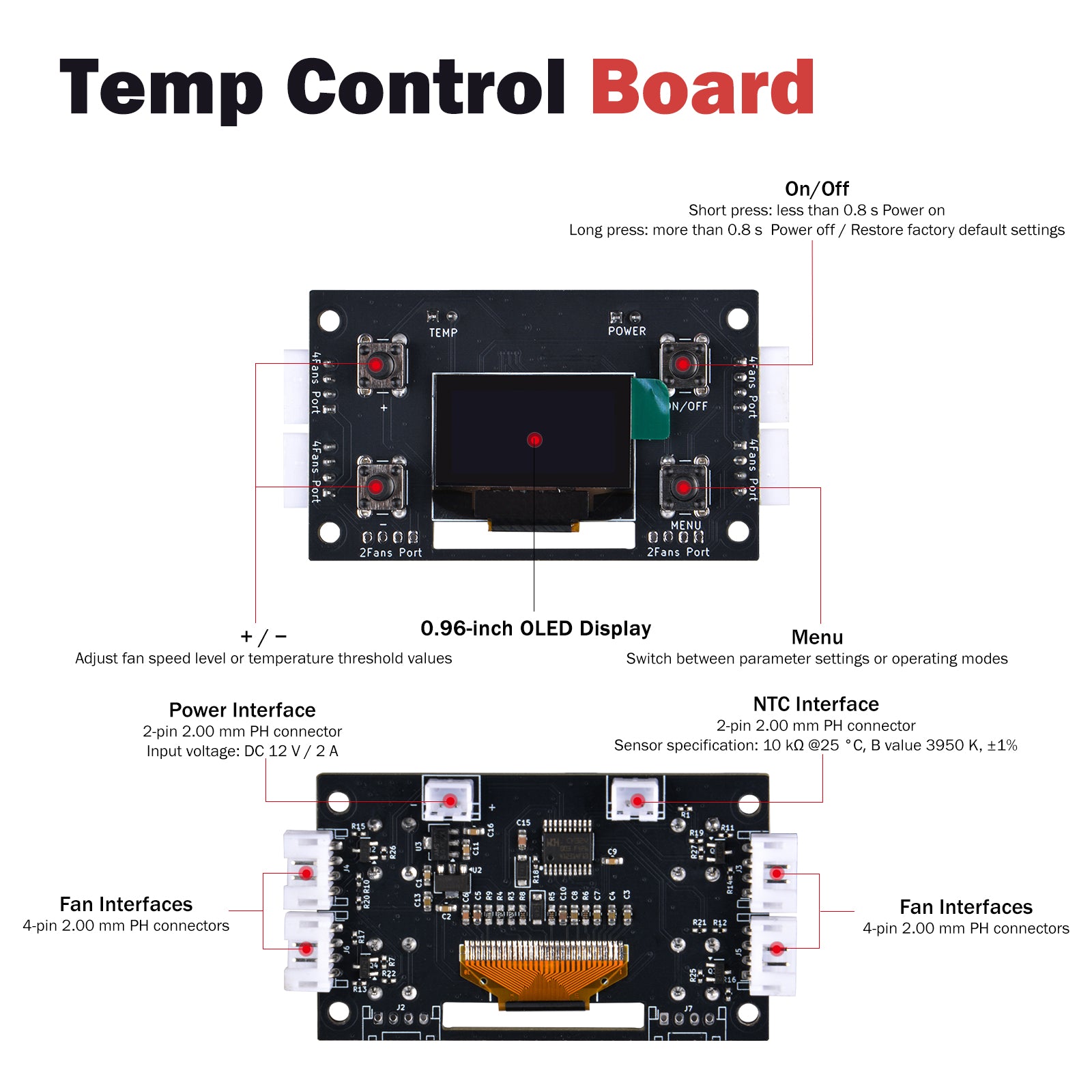

The product is equipped with four 80 mm axial cooling fans and integrates a temperature-sensing and intelligent control circuit. It supports both Automatic and Manual fan control modes, automatically adjusting airflow based on the operating temperature of the equipment to improve airflow inside the rack enclosure, reduce operating temperatures, and enhance overall system stability and reliability.

Compatibility:

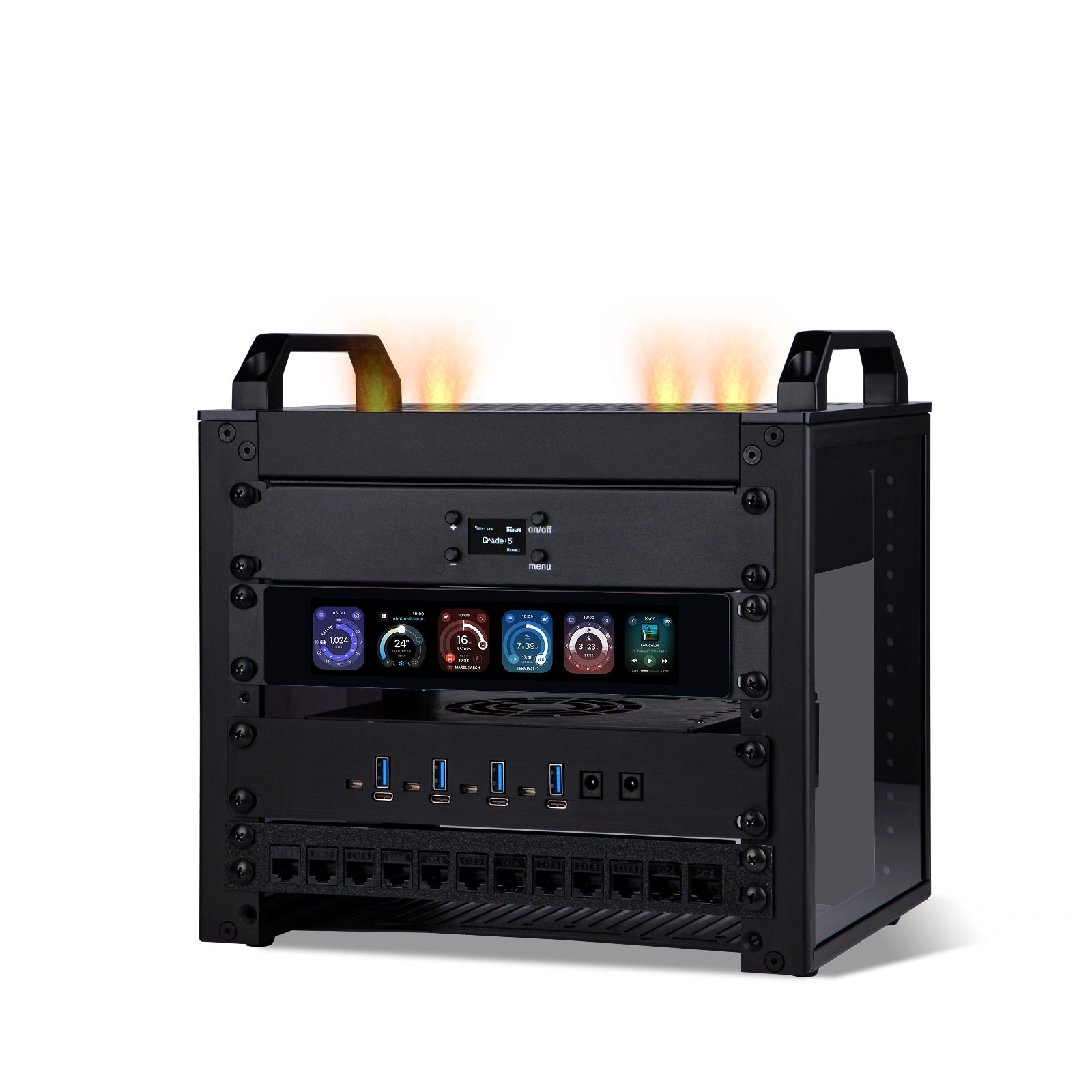

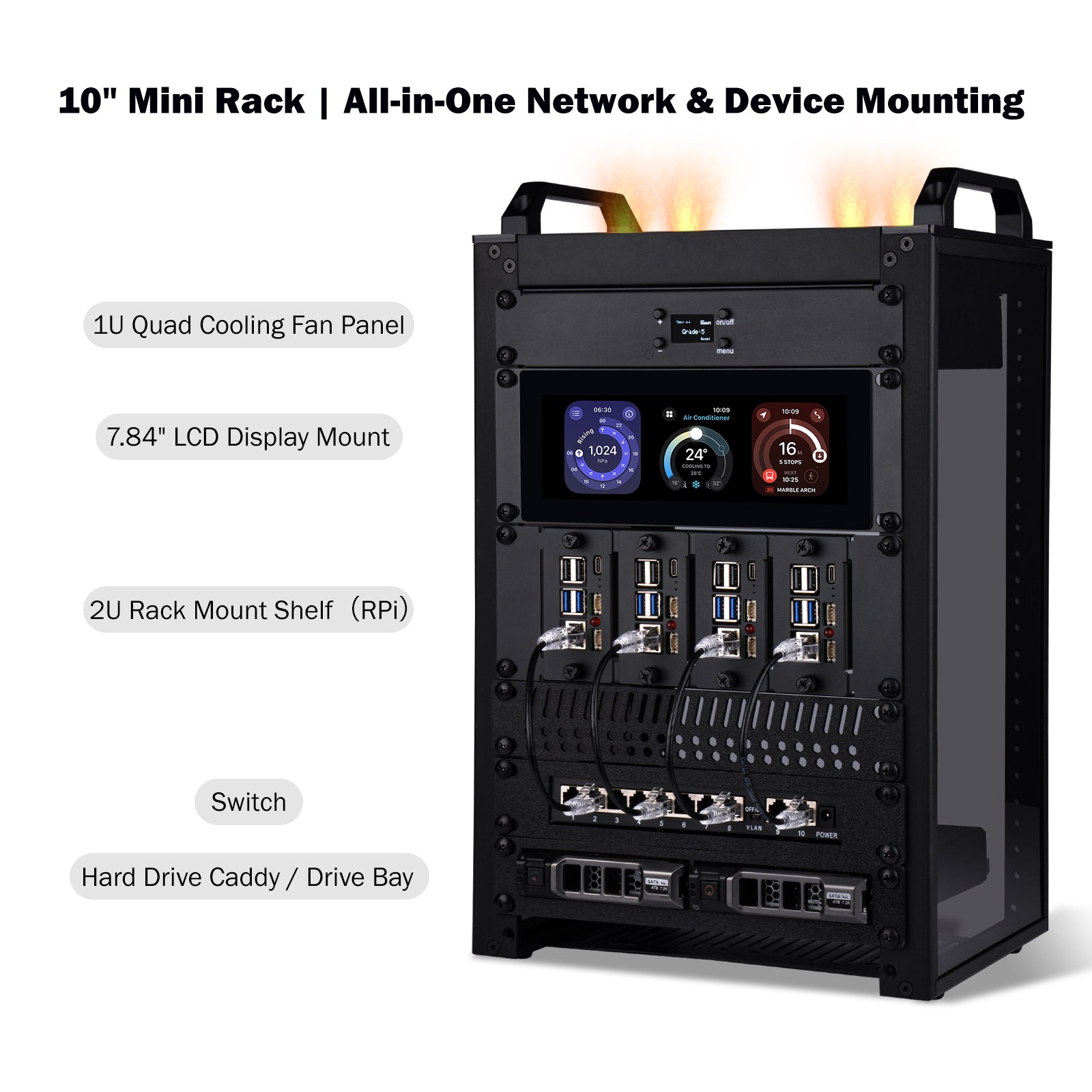

The panel dimensions are fully compatible with the DeskPi RackMate 10-inch rack series T1 and T0. Due to the greater depth of the T2 and TL1 racks, it is recommended to install a 3D-printed rear support bracket to provide additional support.

With the front panel securely fastened using rack screws, stable and reliable installation can be achieved. A dedicated fan panel for T2/TL1 racks is planned for a future release.

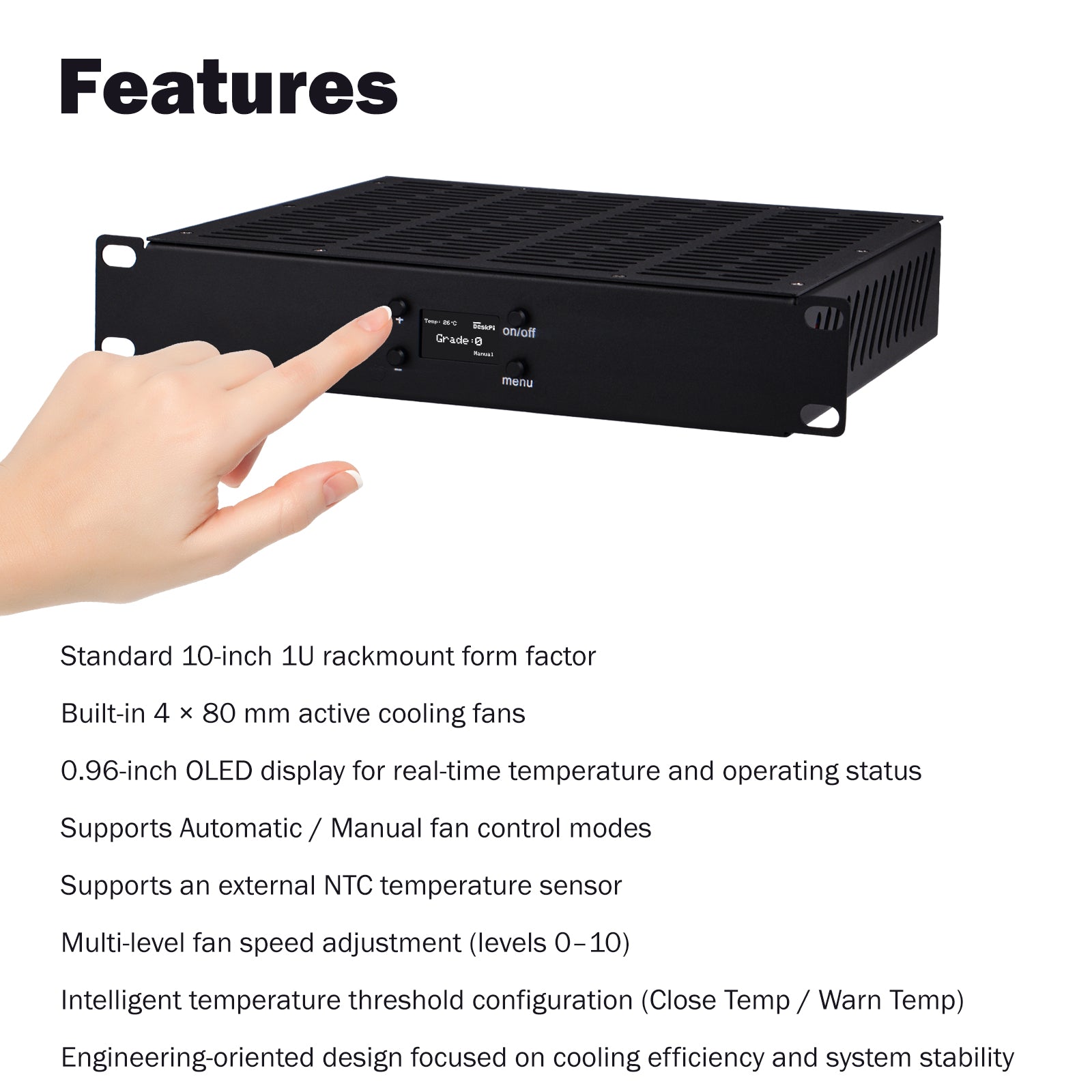

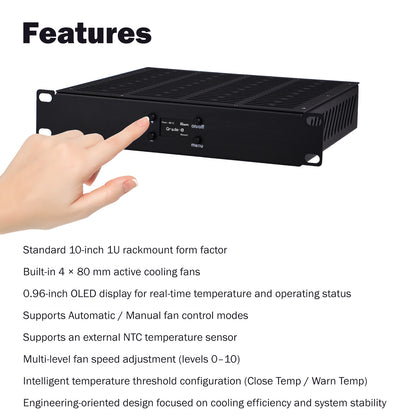

Feature:

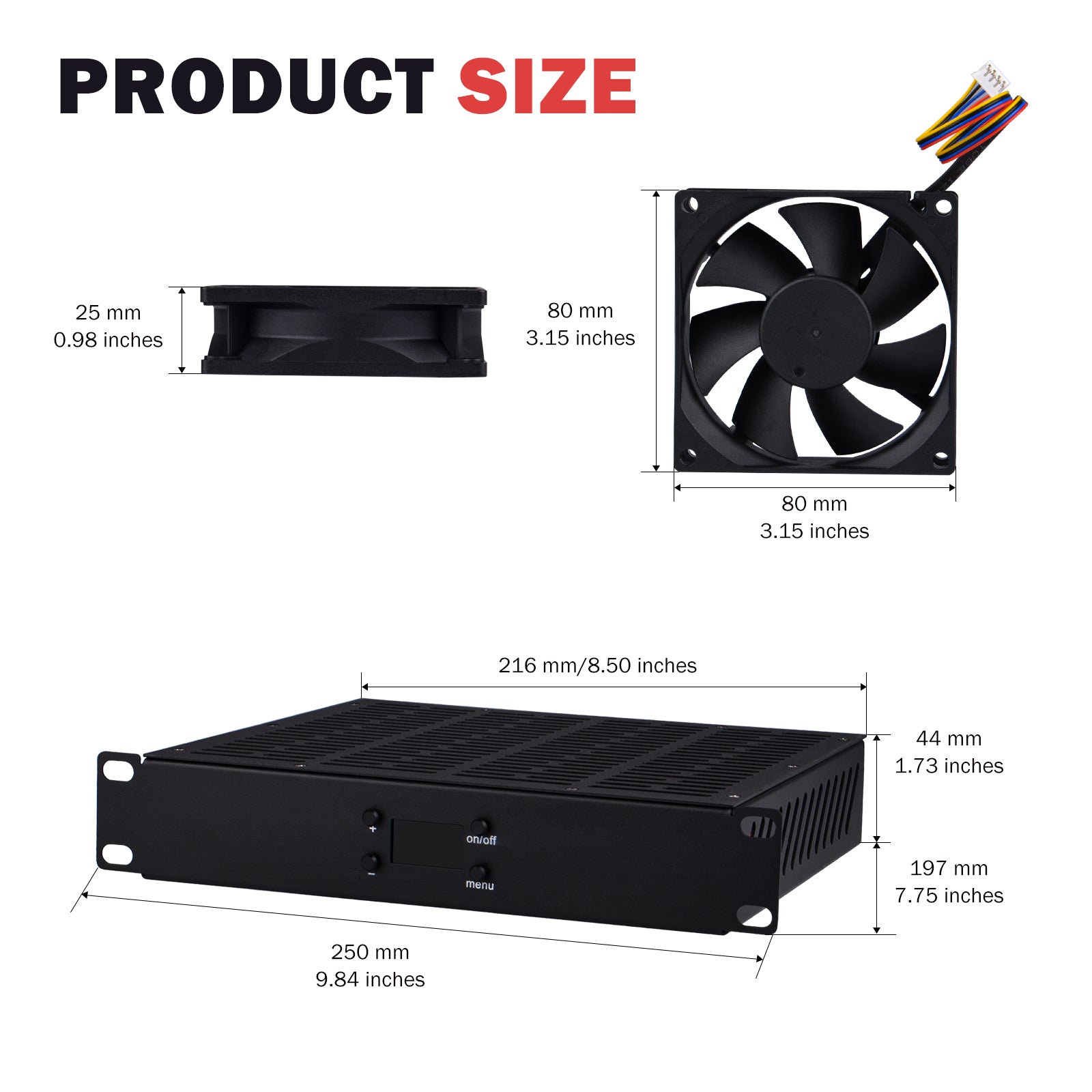

• Standard 10-inch 1U rackmount form factor

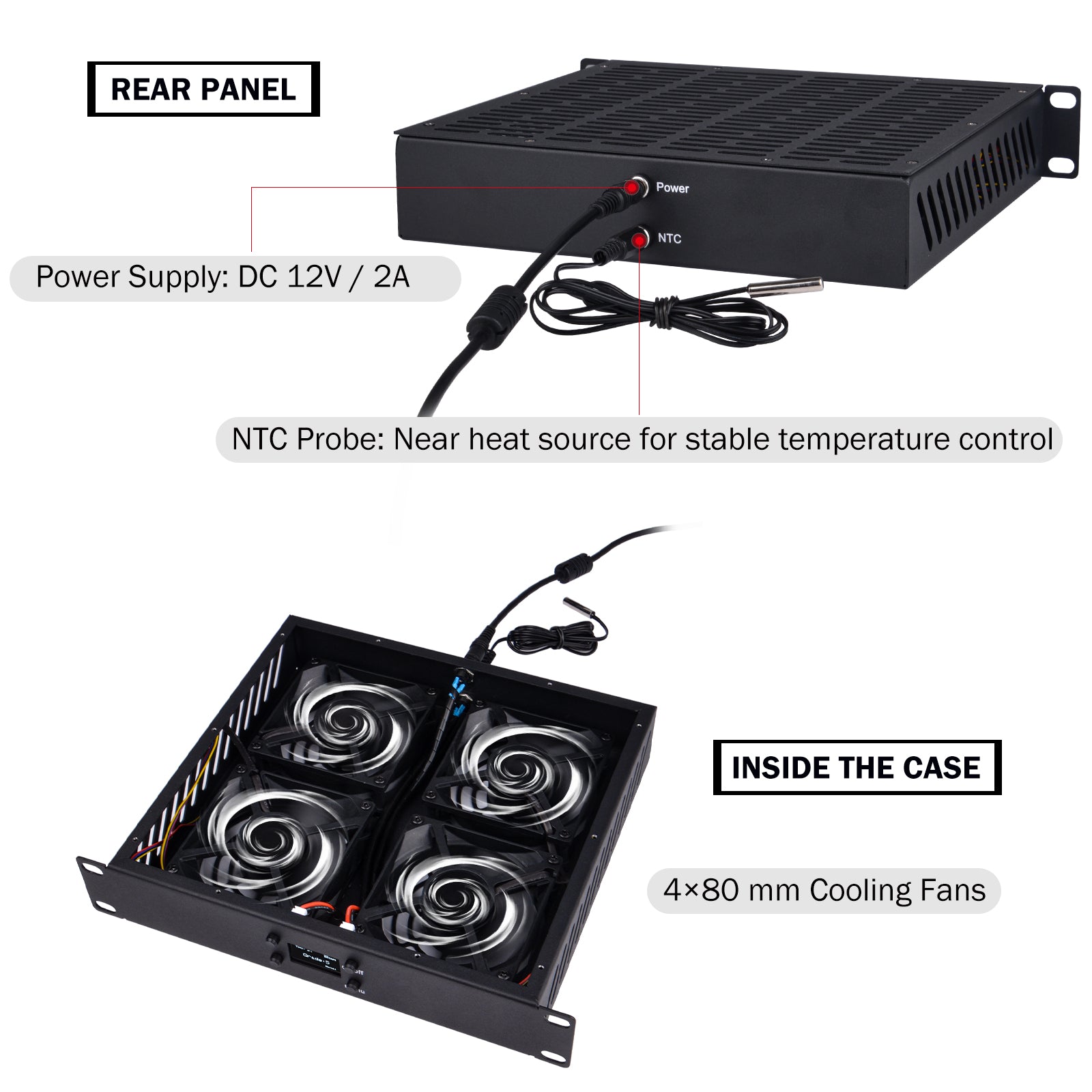

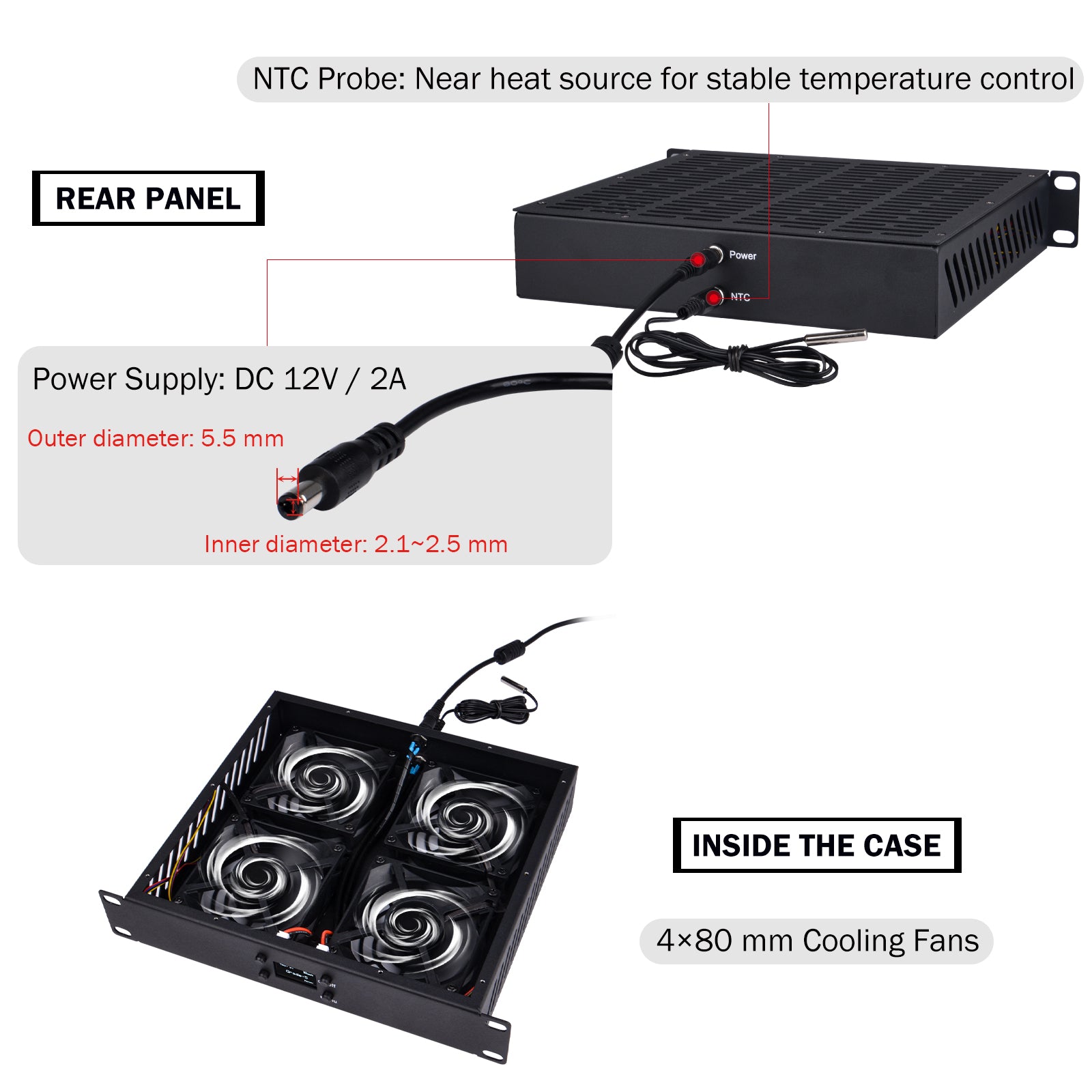

• Built-in 4 x 80 mm active cooling fans

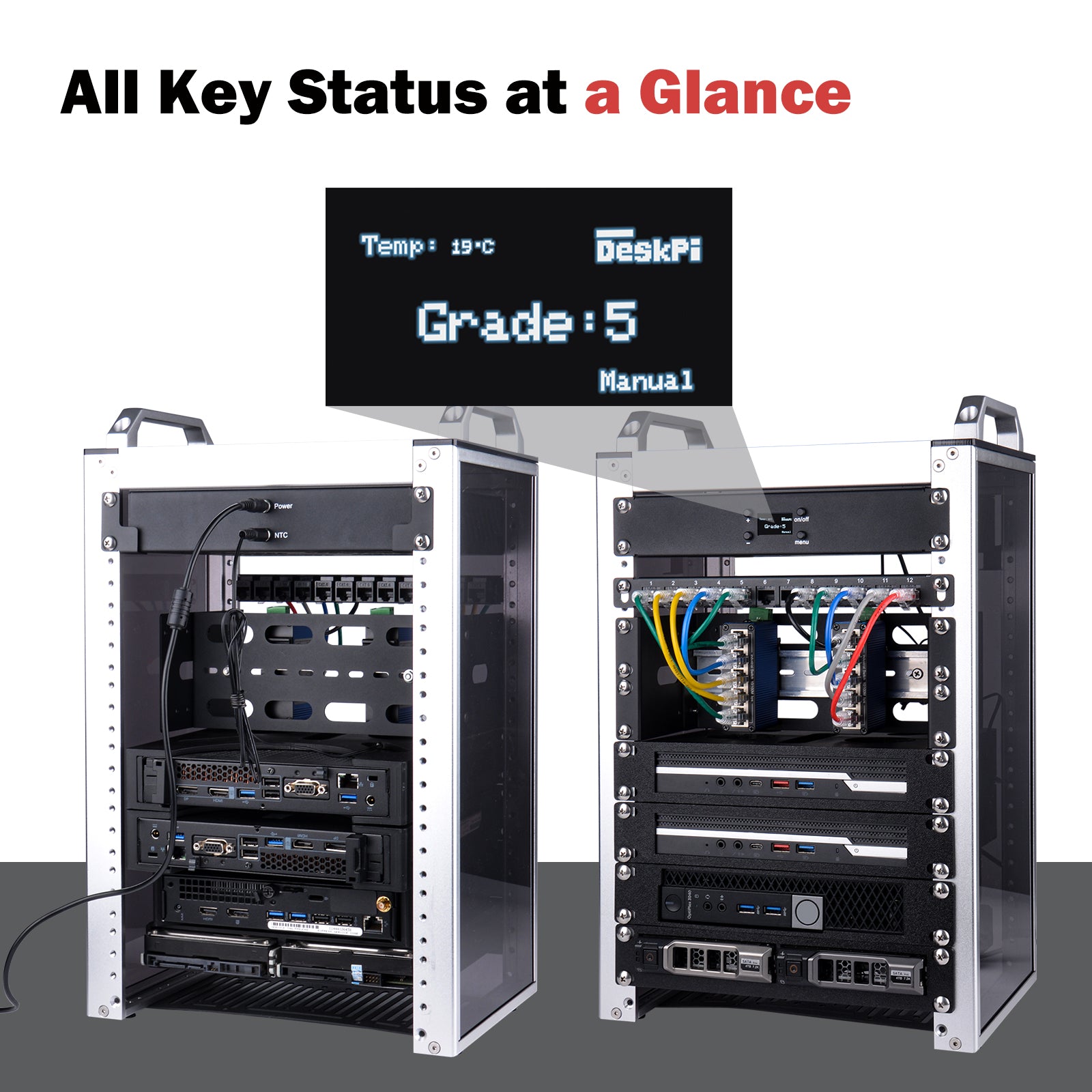

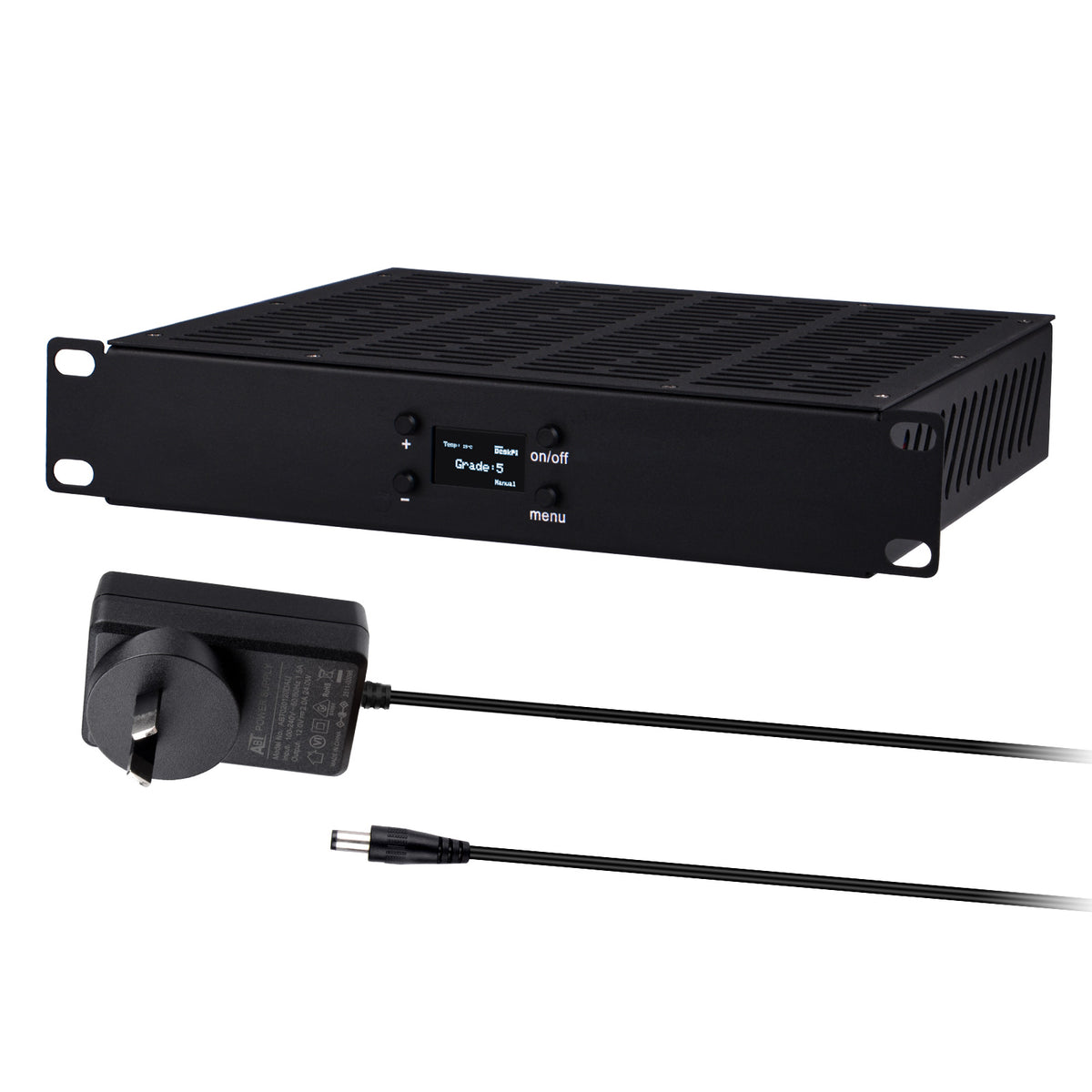

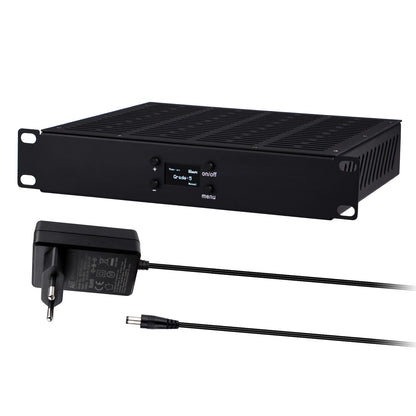

• 0.96-inch OLED display for real-time temperature and operating status

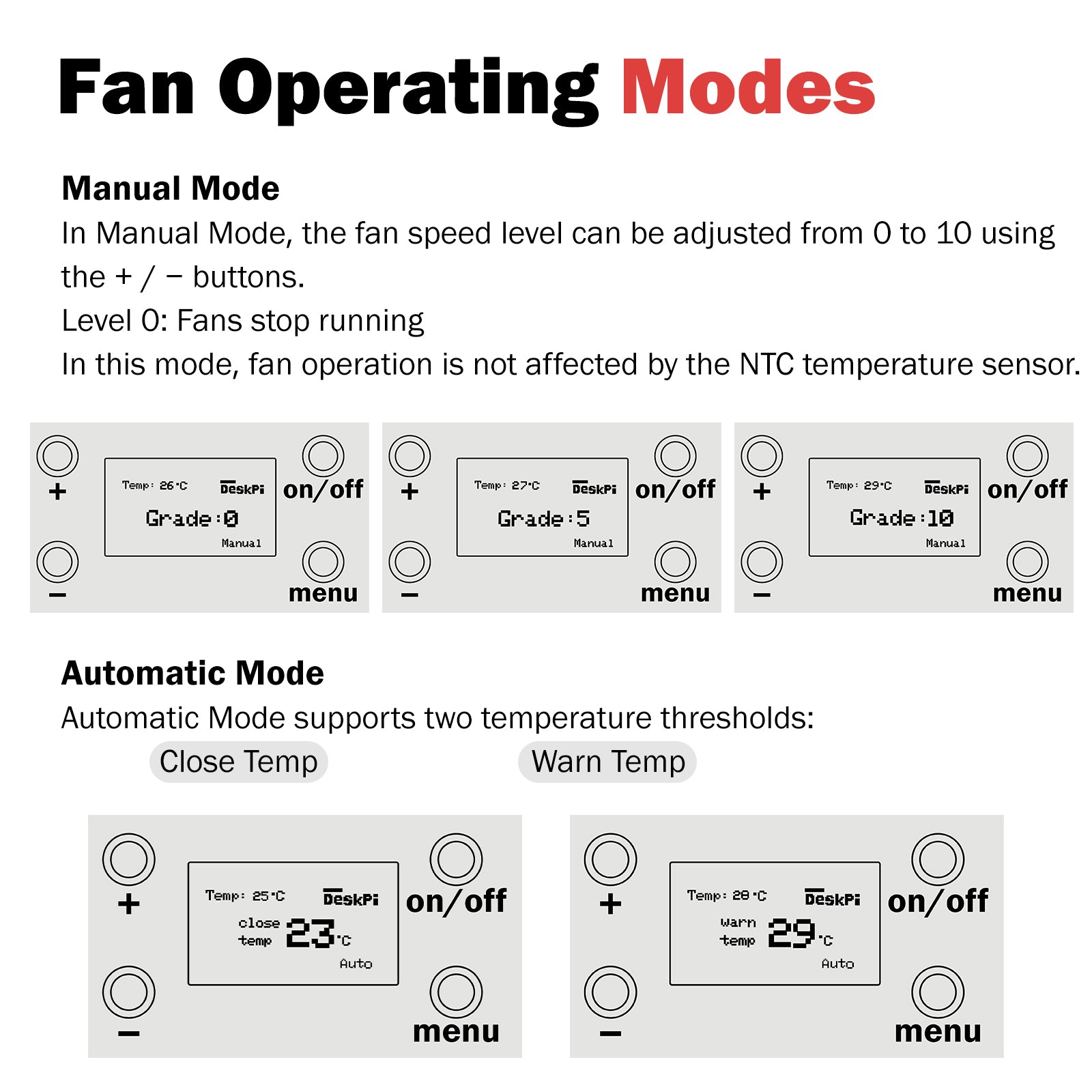

• Supports Automatic / Manual fan control modes

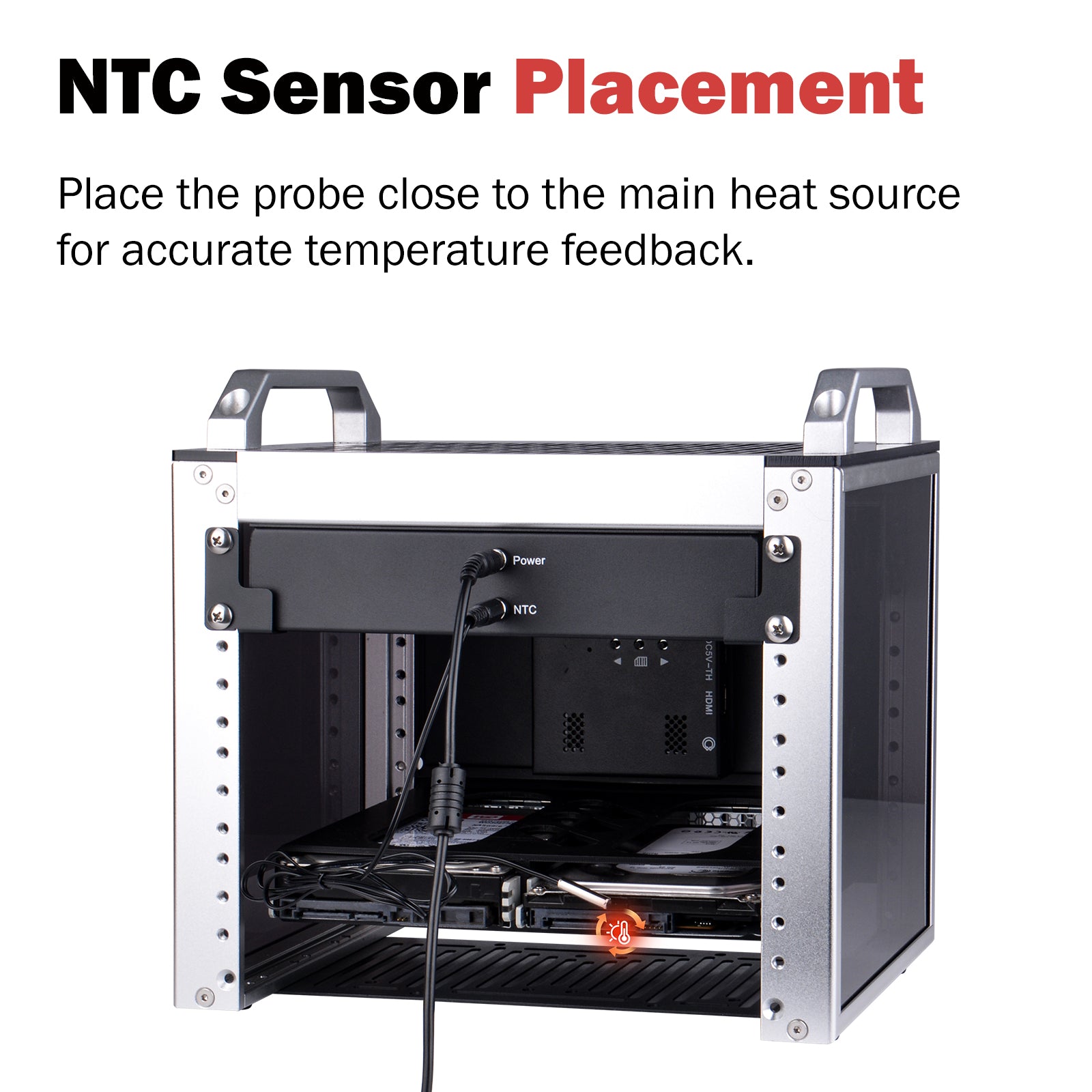

• Supports an external NTC temperature sensor

• Multi-level fan speed adjustment (levels 0-10)

• Intelligent temperature threshold configuration (Close Temp/ Warn Temp)

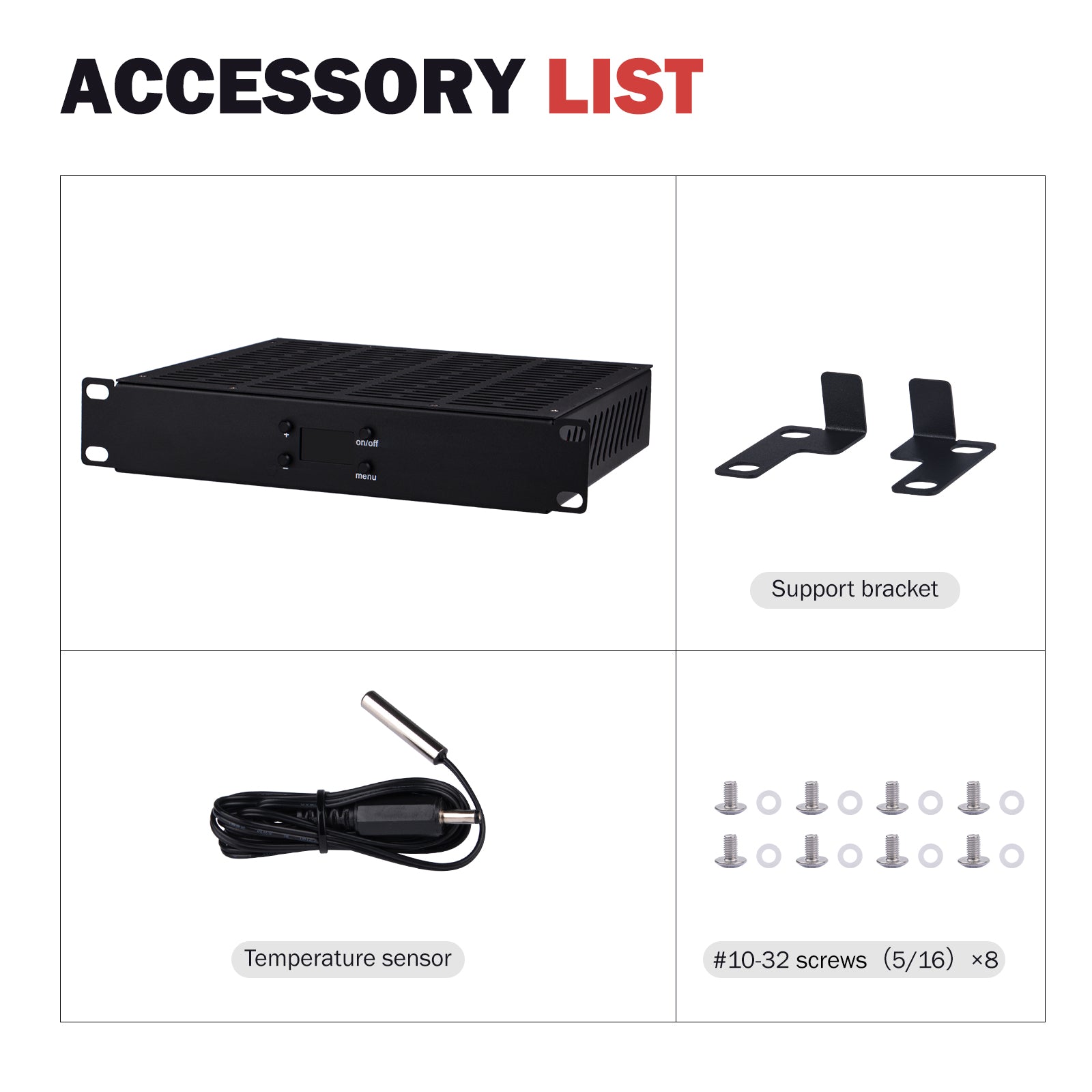

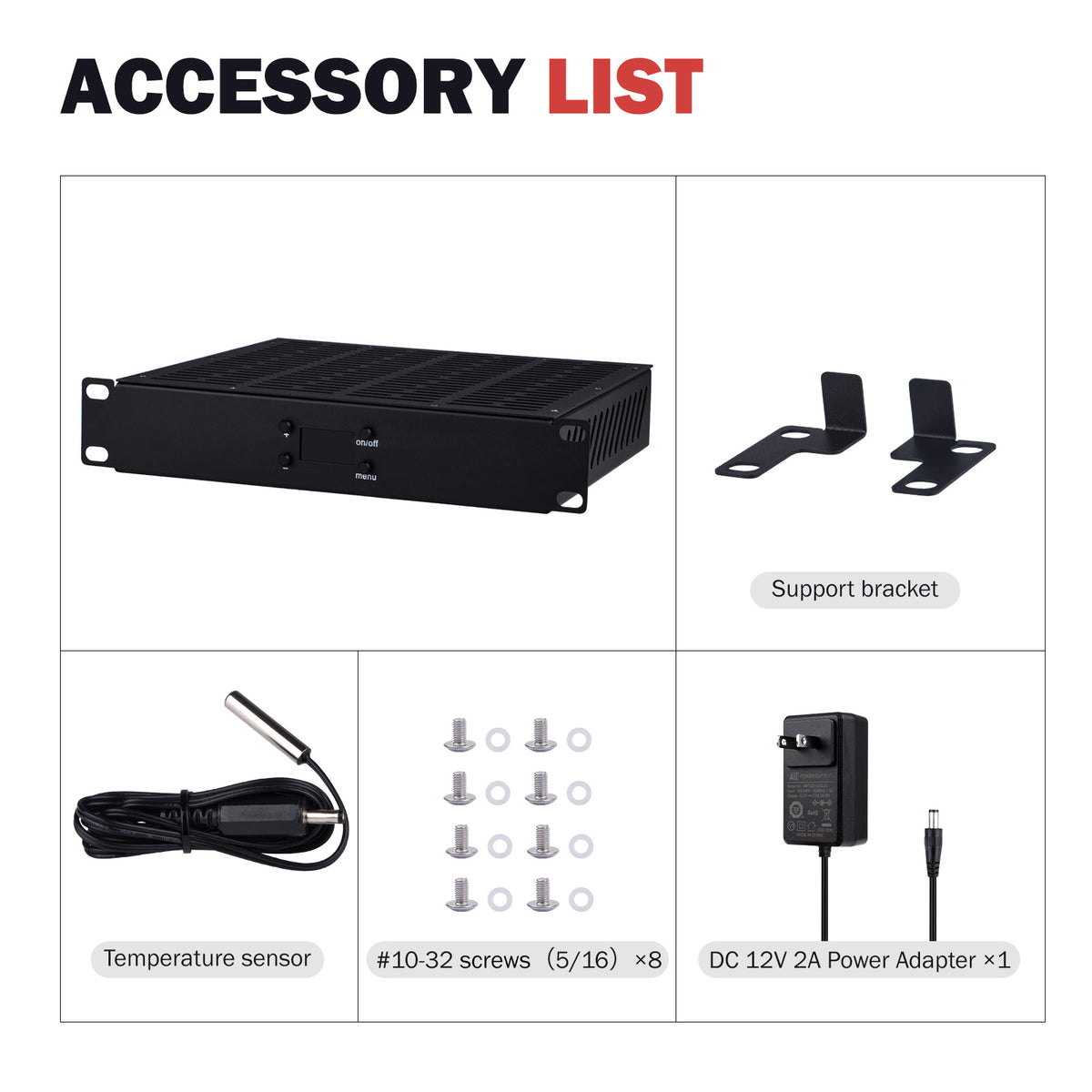

Product Includes:

DeskPi Wiki:

10-Inch 1U Quad Cooling Fan Panel - DeskPi Products Wiki
