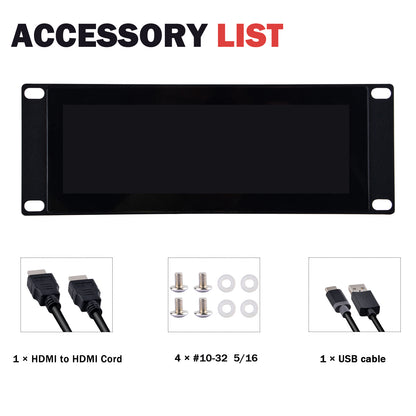

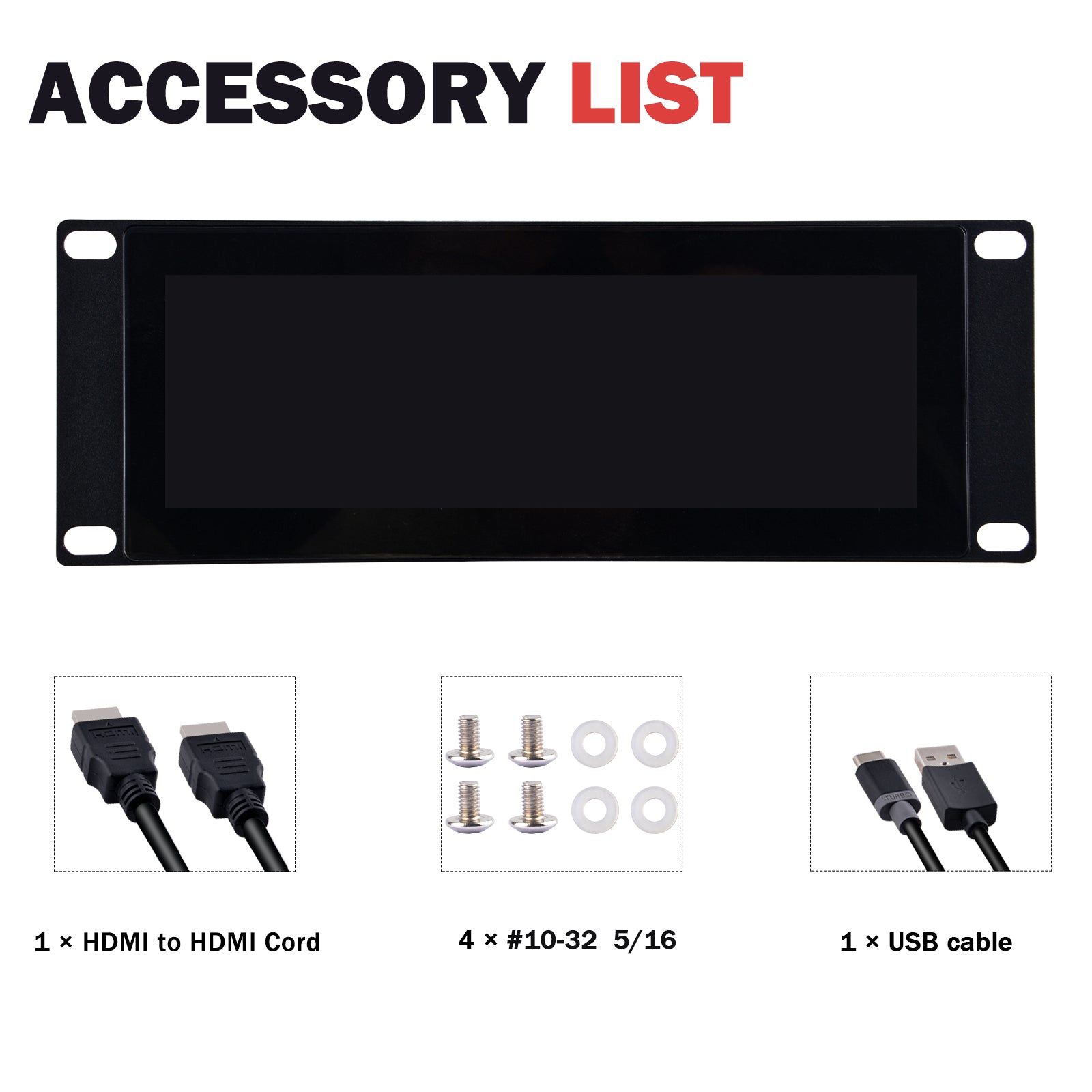

Description Features Product Includes

Good news! This product can be shipped from the US overseas warehouse, and the shipping fee for US orders will be reduced. If you have any questions, please contact us.

Descriptions:

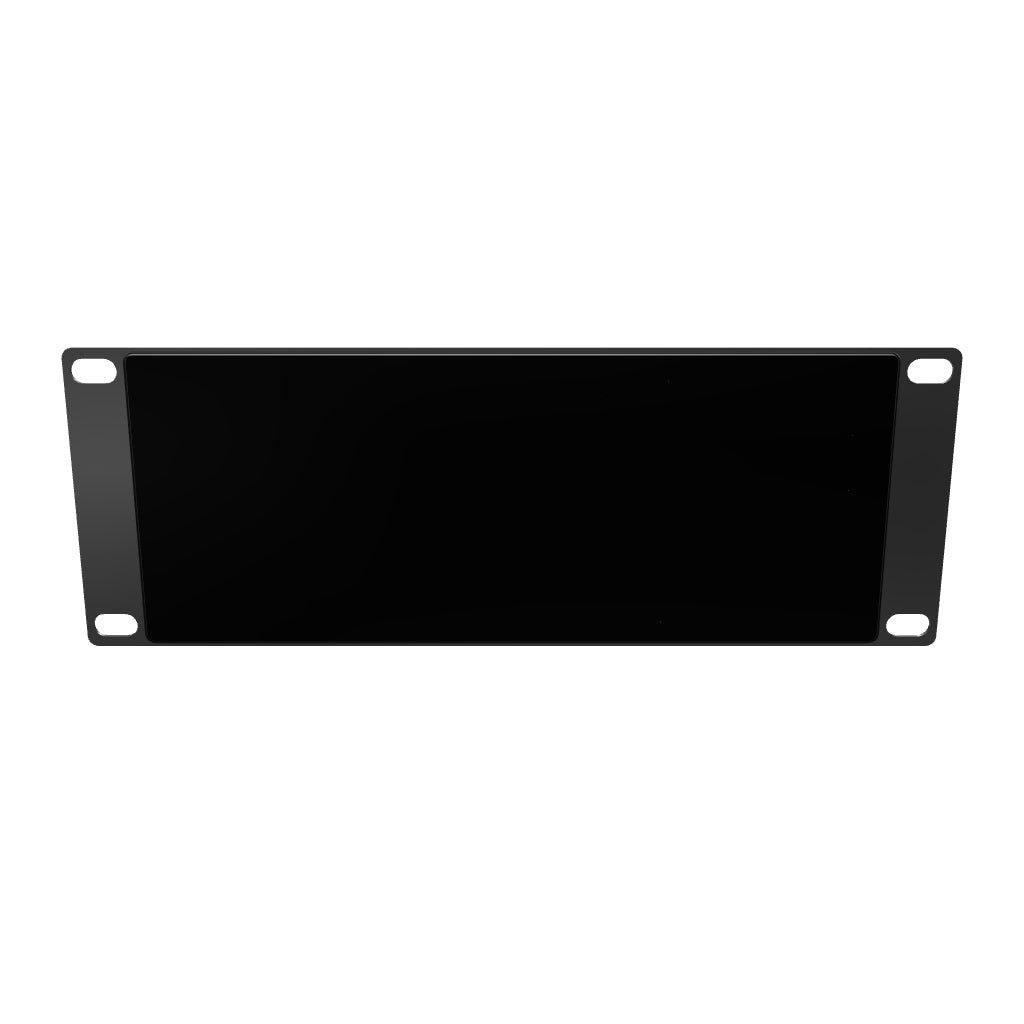

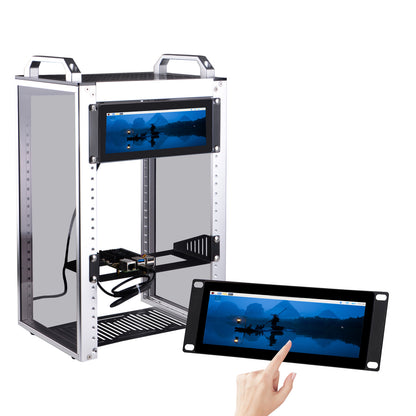

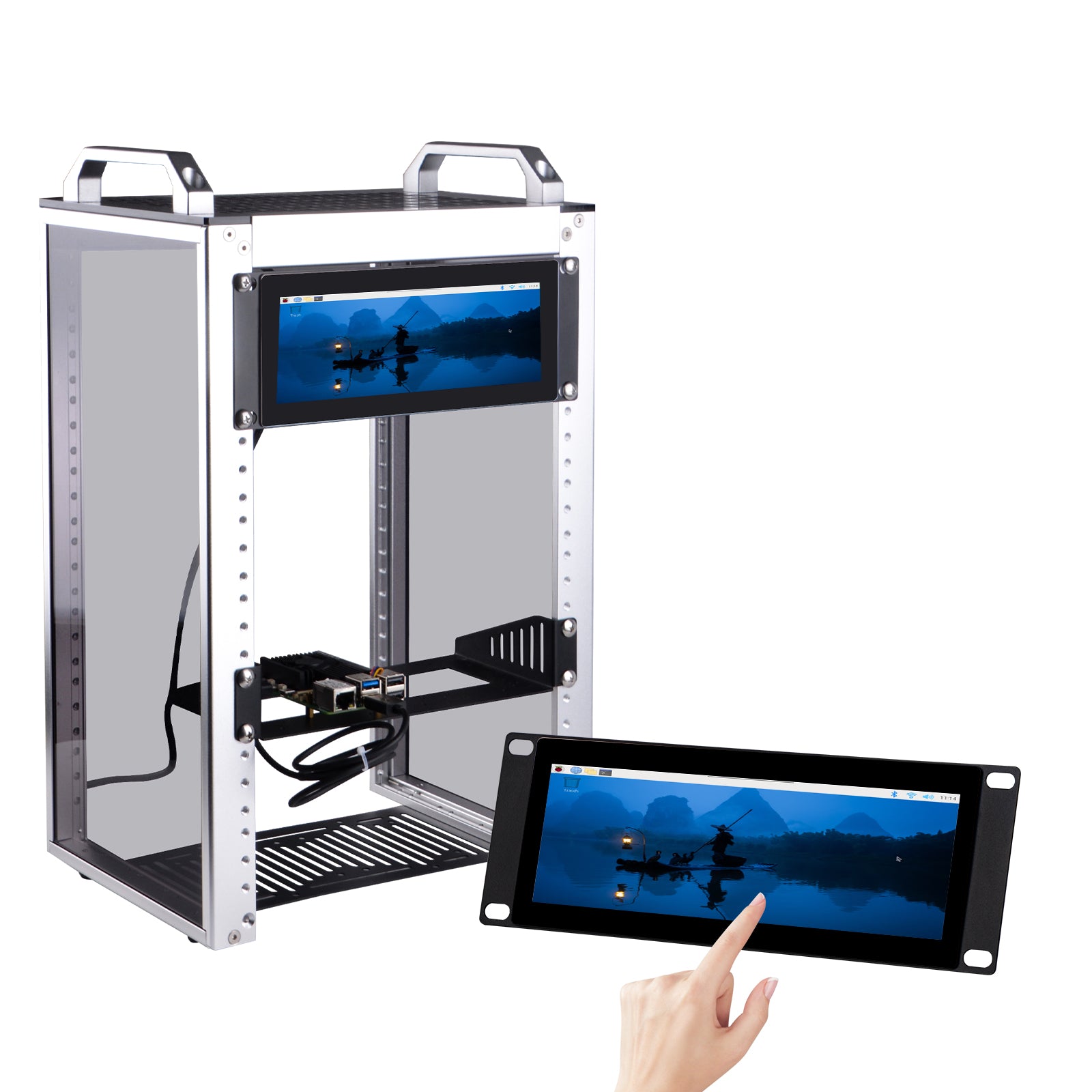

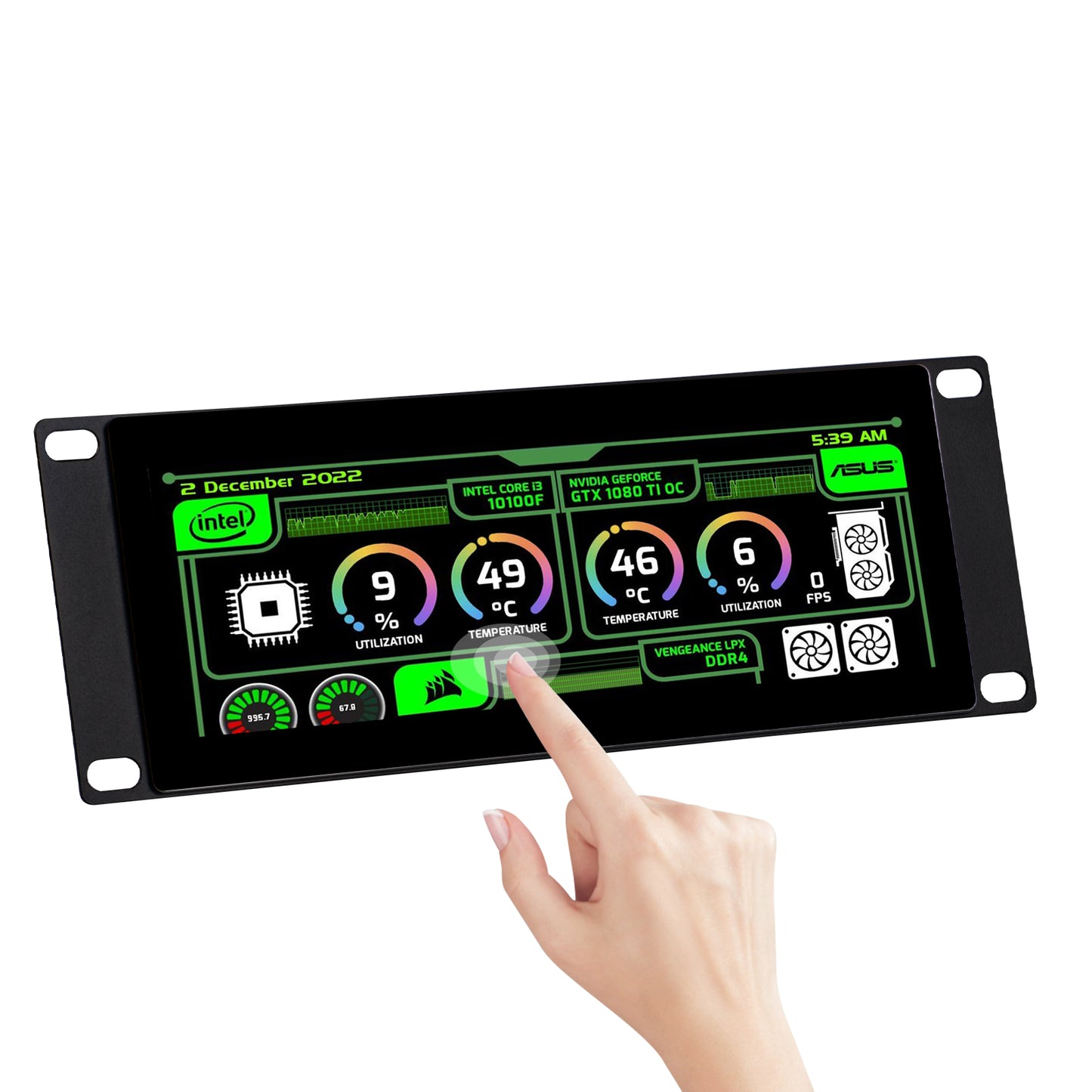

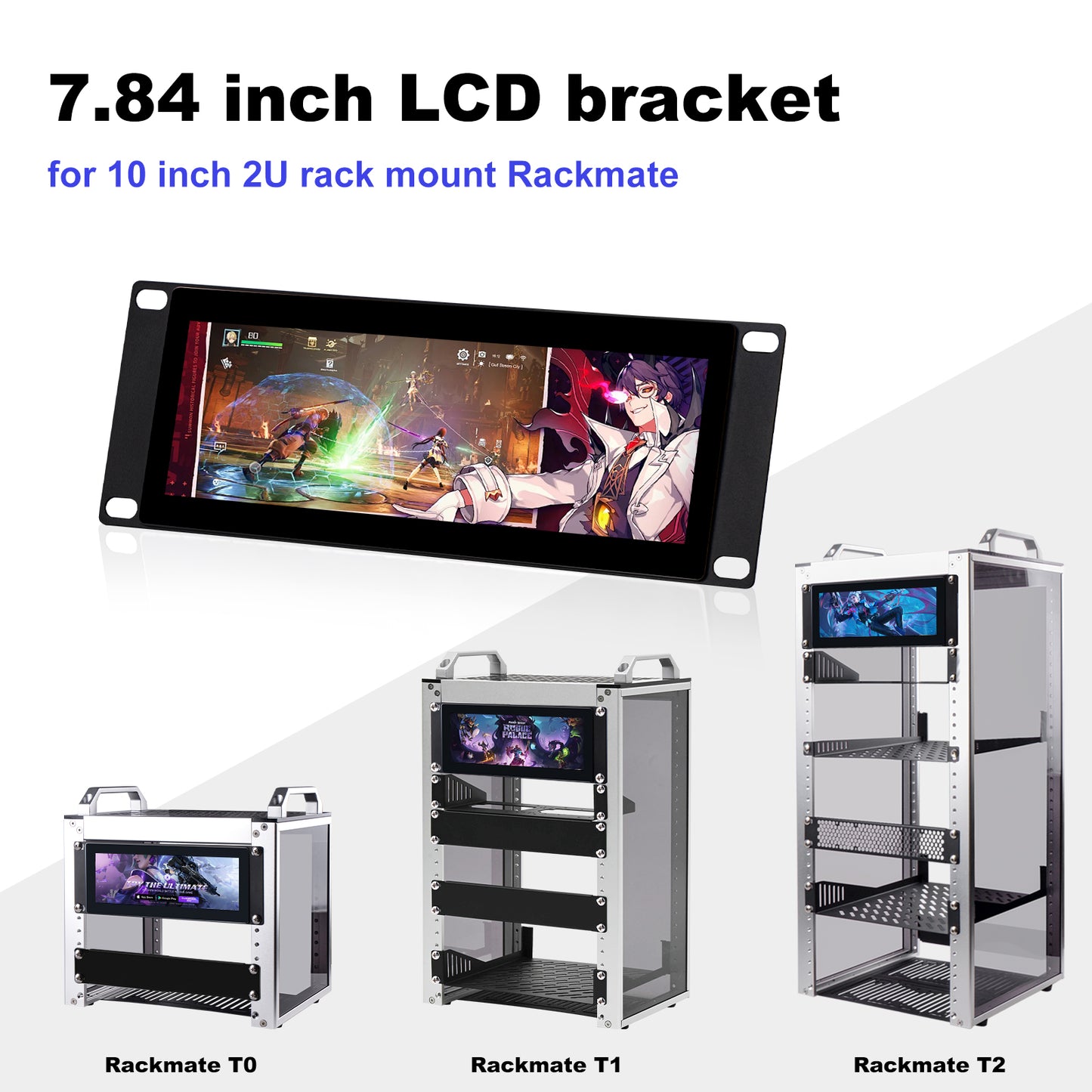

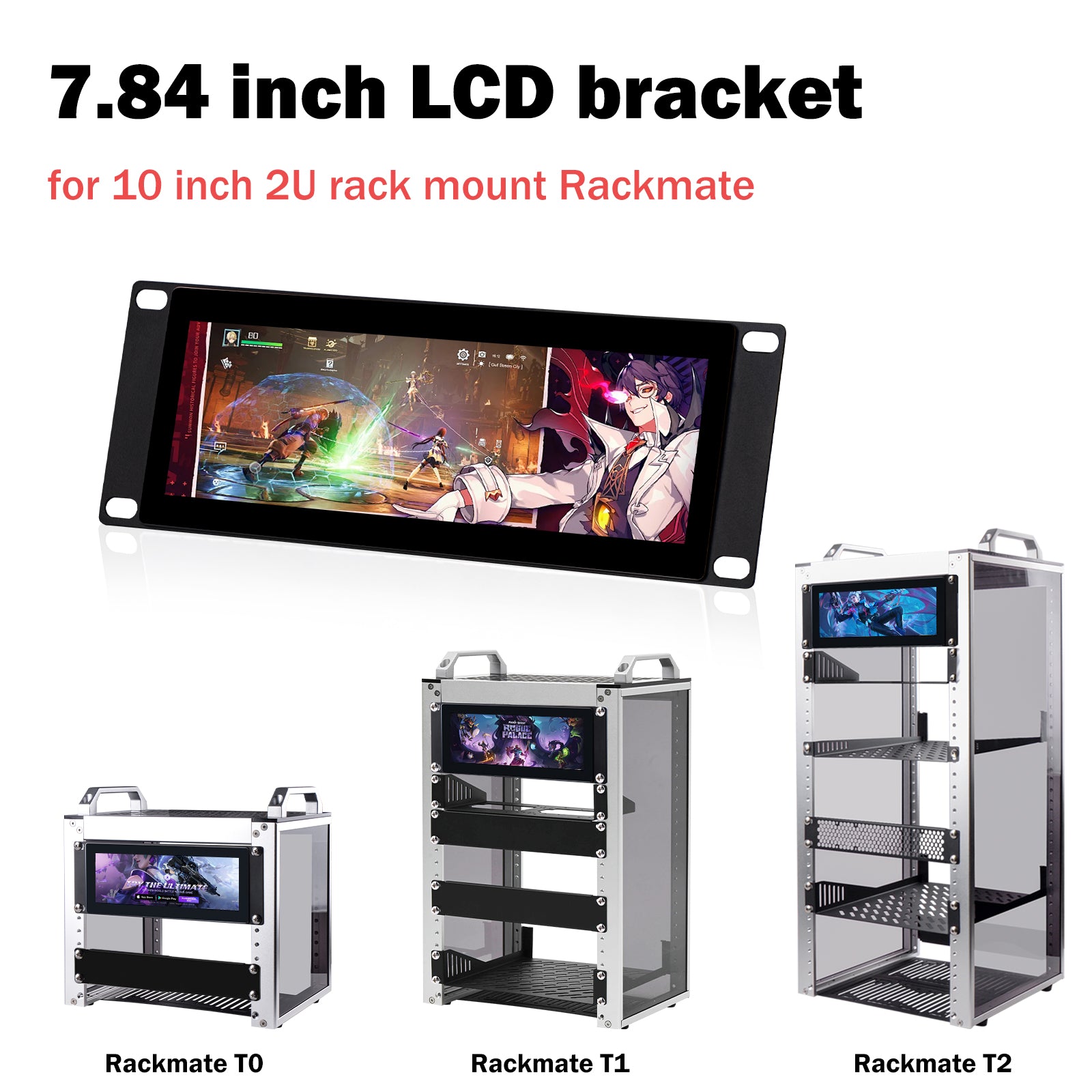

This 7.84-inch LCD screen is designed for 10-inch server 2U rack (Rackmate T0/T1/T2 series). It has high-definition display, stable performance and easy installation. It is suitable for server monitoring and maintenance data management.

Features:

7.84 inch TFT LCD with a resolution of 1280 x 400, 350 cd/m² brightness, and 60 Hz refresh rate.

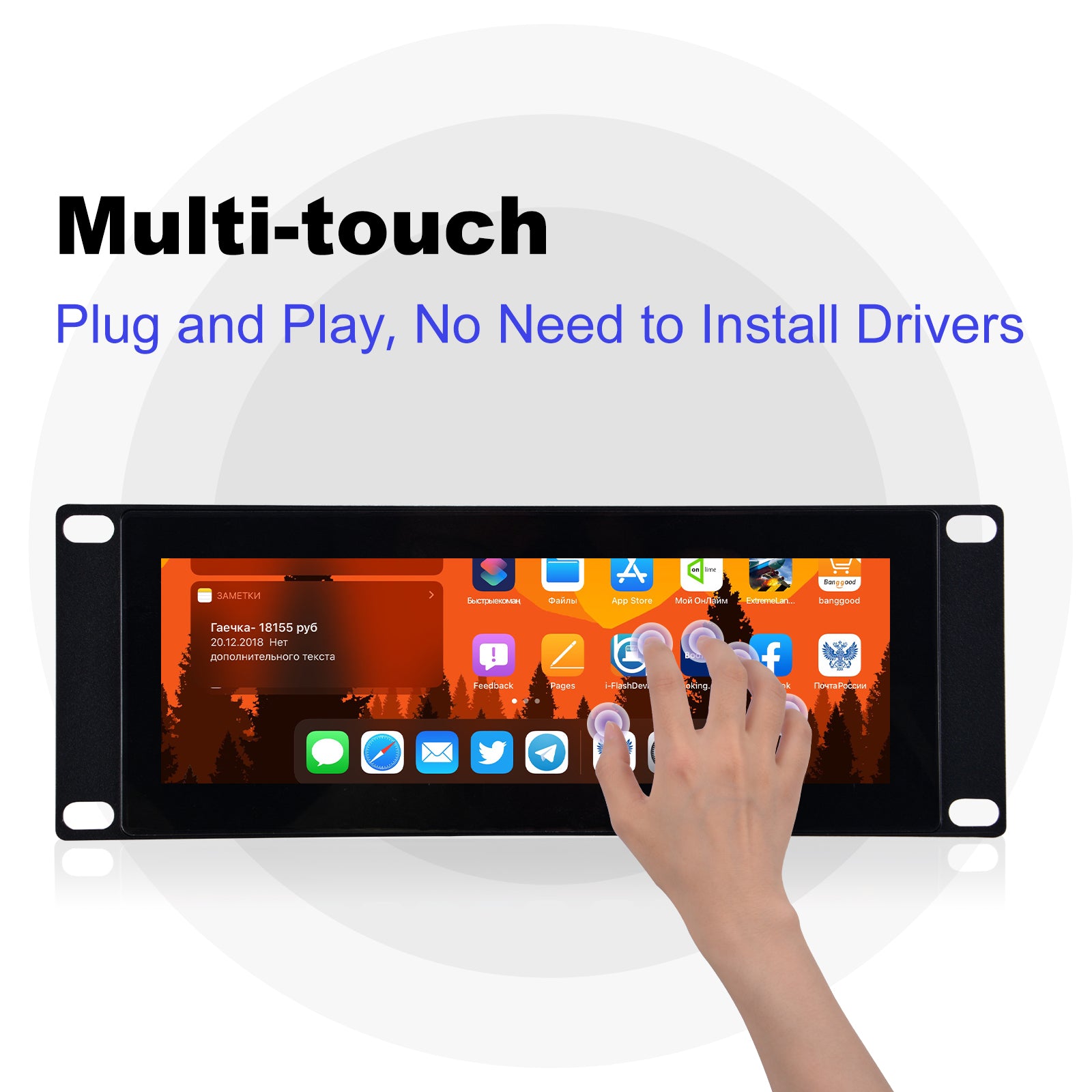

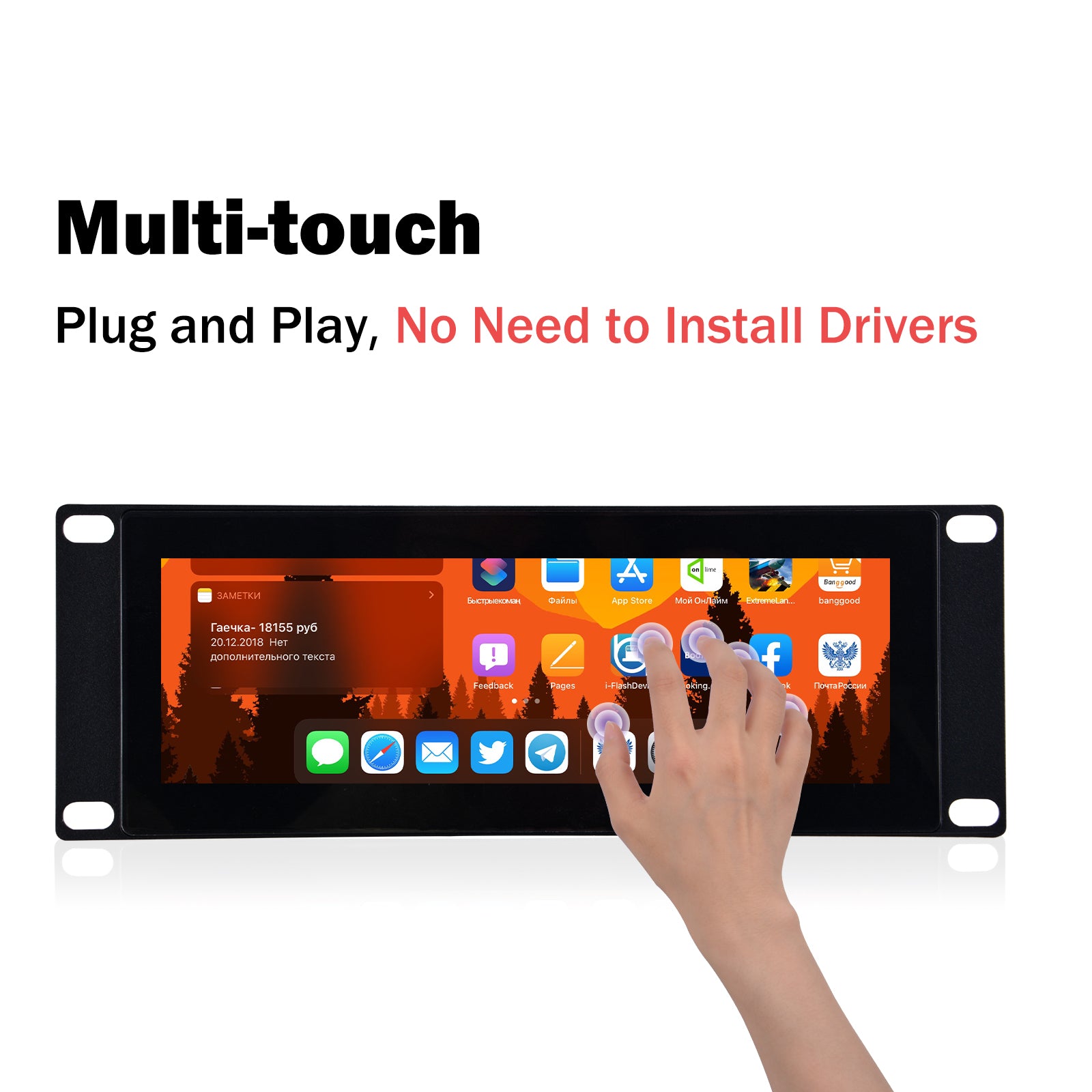

Capacitive multi-touch screen — plug and play, no extra driver installation required.

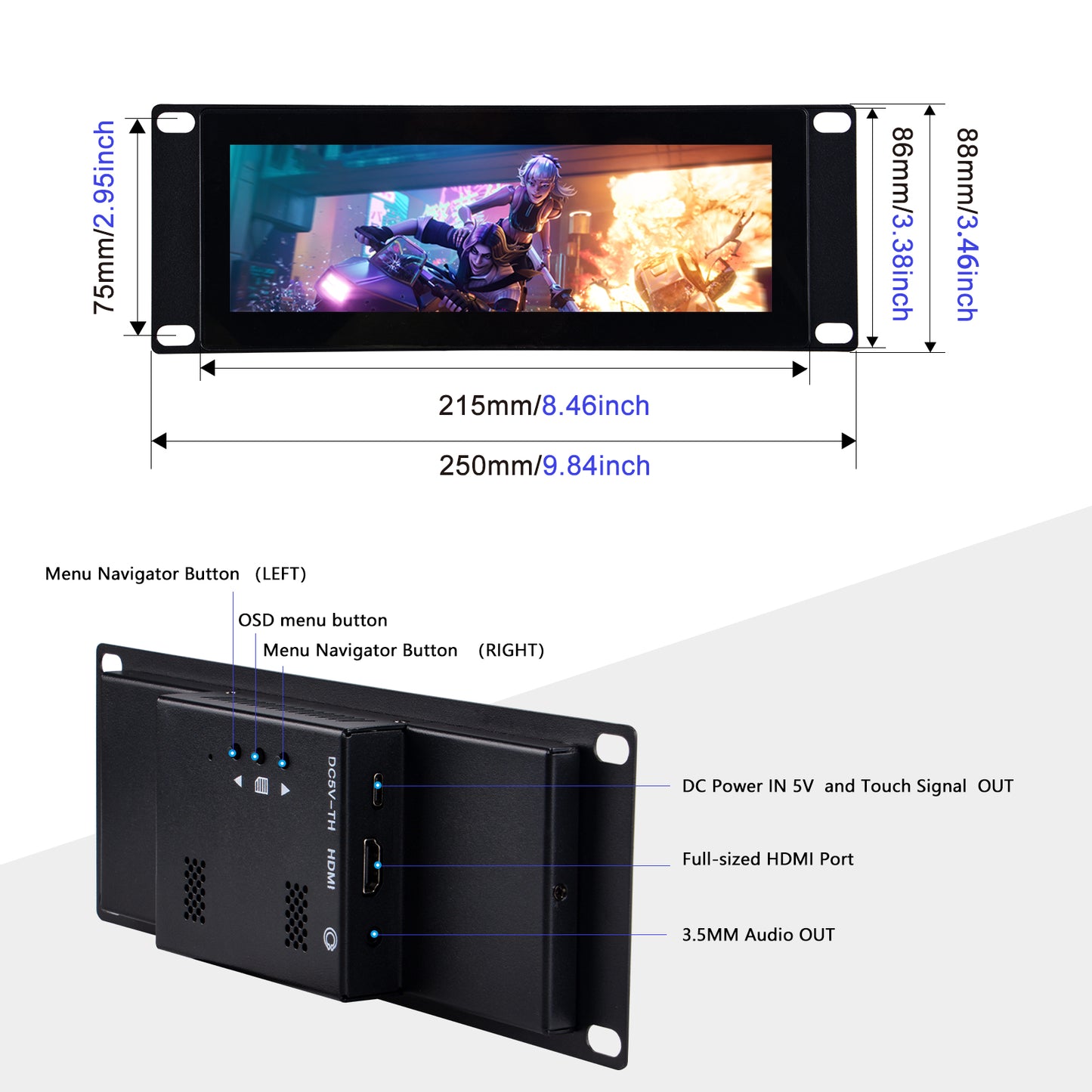

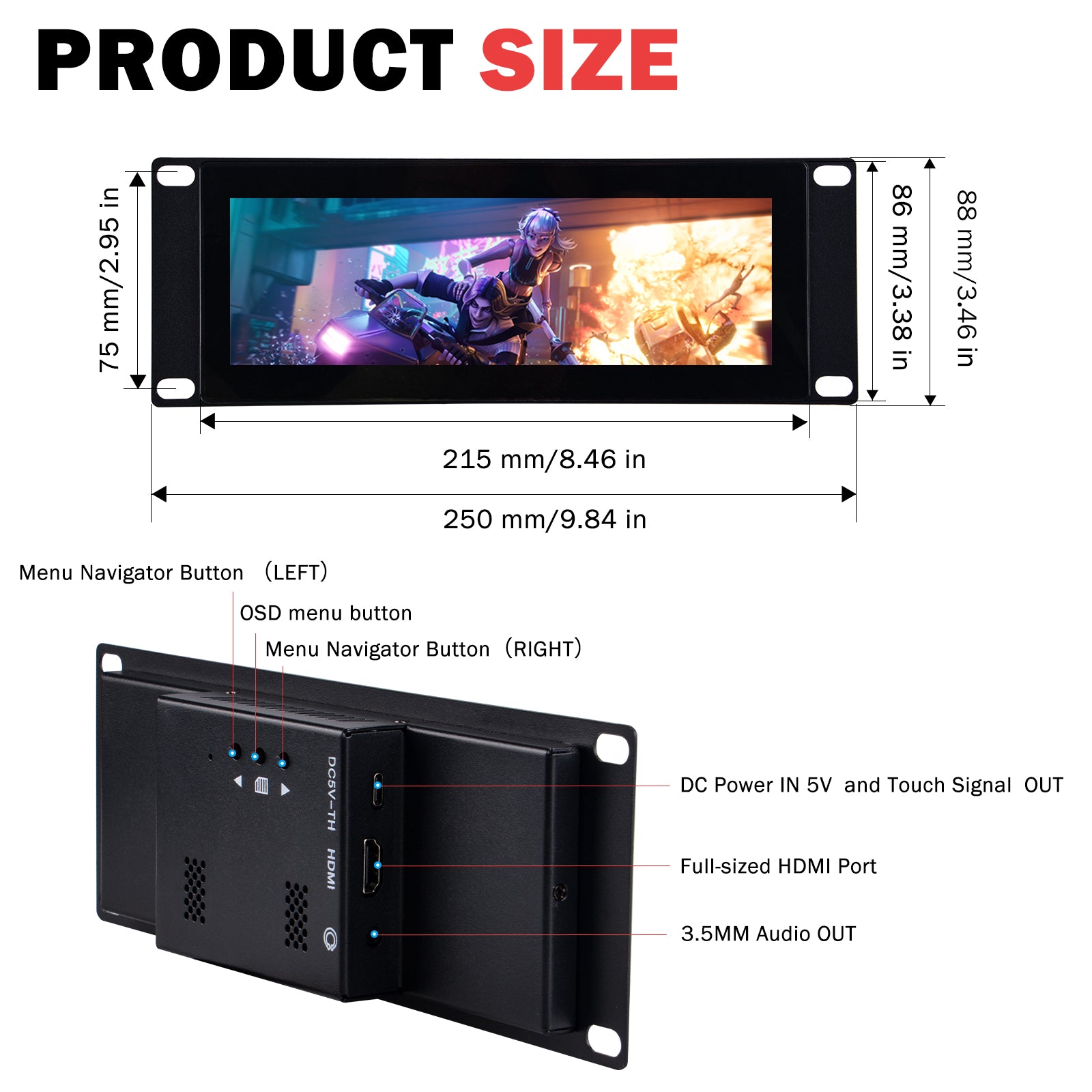

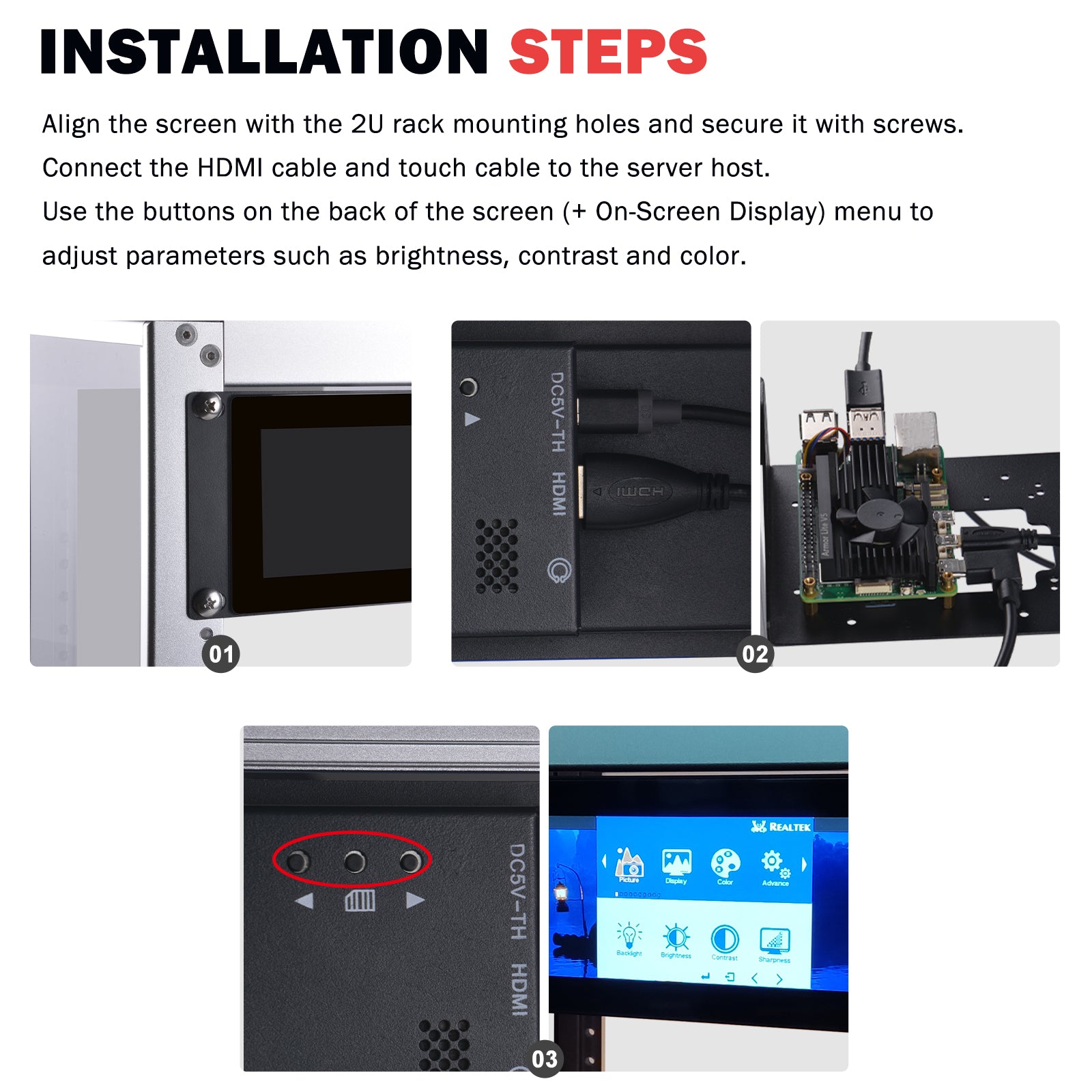

HDMI video input + USB touch-signal output for easy connection to a server host or SBC.
3.5 mm audio output for connecting external speakers or headphones.
DC 5V power input via a standard USB-C power/touch combo port.

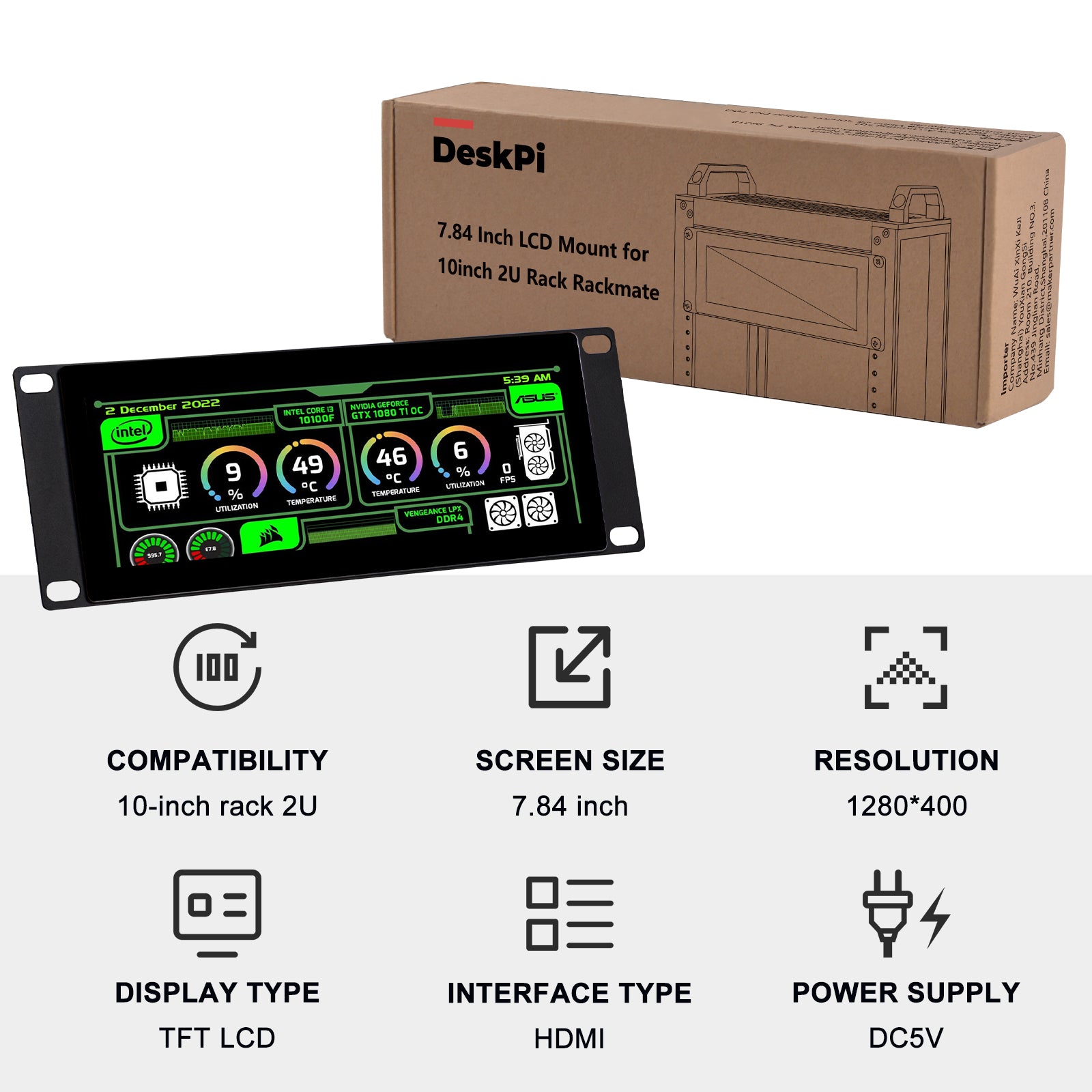

Specifications:

Screen size: 7.84 inch
Resolution: 1280 x 400, 350cd/m², 60Hz refresh rate
Display type: TFT LCD
Touch: with touch
Interface type: HDMI
Power supply: DC 5V

Display Resolution Note

⚠️ macOS users: the screen image may appear stretched because macOS cannot output 1280 x 400 natively. The minimum supported resolution on macOS is typically 1280 x 720.

On a Mac, the display will usually be driven at a 16:9 resolution (such as 1280 x 720) and then scaled or letterboxed, which can cause horizontal stretching. For the best picture quality, set a custom resolution of 1280 x 400 via a third-party display utility (for example, SwitchResX or RDM) or adjust the overscan/scaling options in System Settings > Displays.
