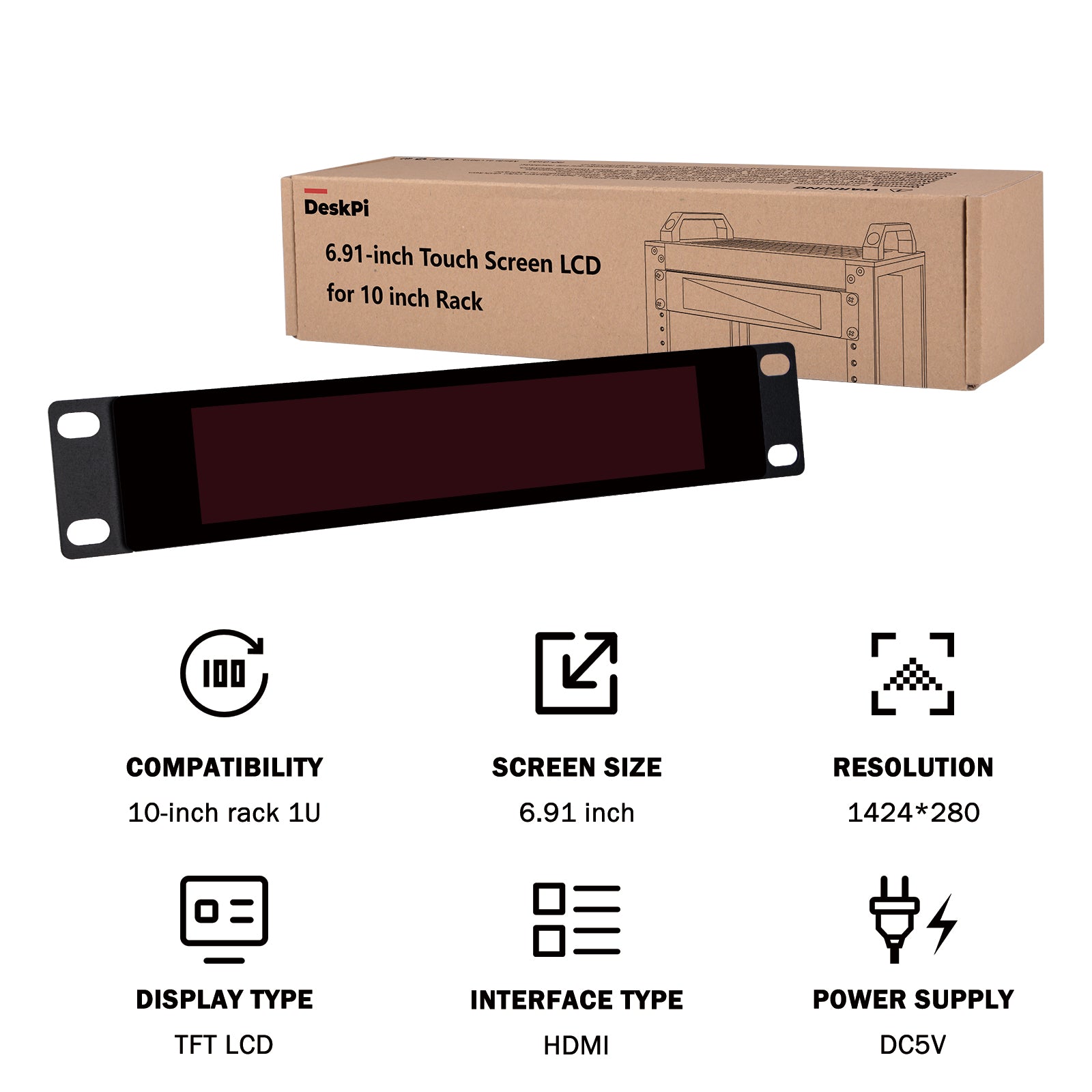

DeskPi 6.91-inch Touch Screen 1424X280 TFT LCD Display 10 inch 1U Rackmount Monitor for DeskPi RackMate T0/T1/T2 Server Cabinets

Descriptions:

This is a 6.91-inch display device with a resolution of 1424(H)×280(V). It features a TFT panel with a 5.09:1 aspect ratio, a brightness of 400cd/㎡, and a contrast ratio of 800:1. The display offers 16.7 million colors and a response time of 50ms. It supports capacitive 10-point touch with a surface hardness of ≥6H and a transmittance of >95%. The device is designed for durability, with a point life of >10 million times.

Feature:

• Robust Construction: Made of rolled metal with a sturdy casing, providing shock resistance and interference resistance.

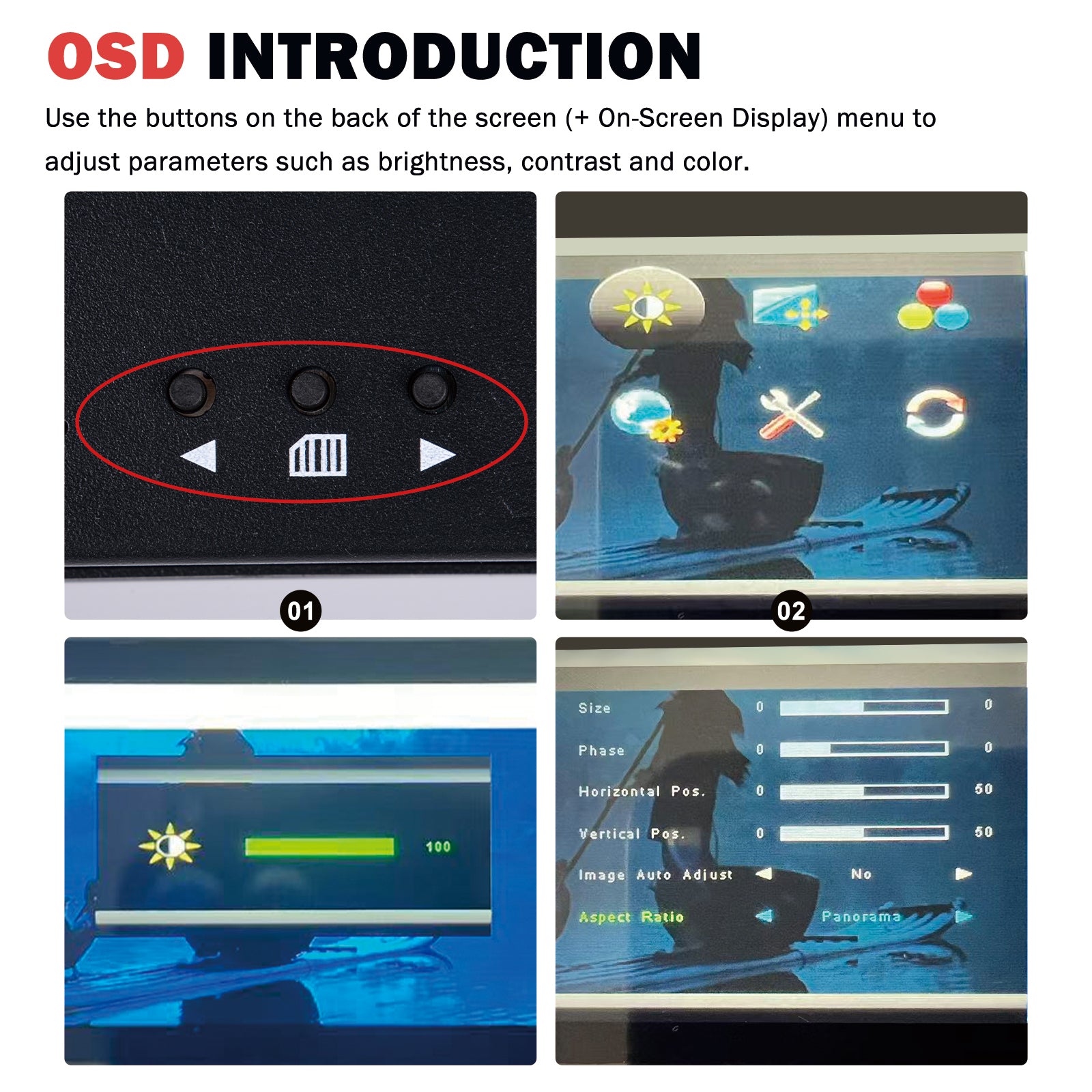

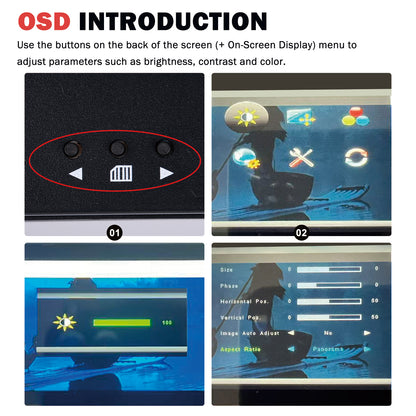

• Smart Functionality: Includes an on-power boot-up feature and a standby mode when no signal is detected.
• Energy Efficiency: Low power consumption with an average power usage of less than 4W.
• Natural Cooling Design: Utilizes an industrial design that allows for natural heat dissipation.

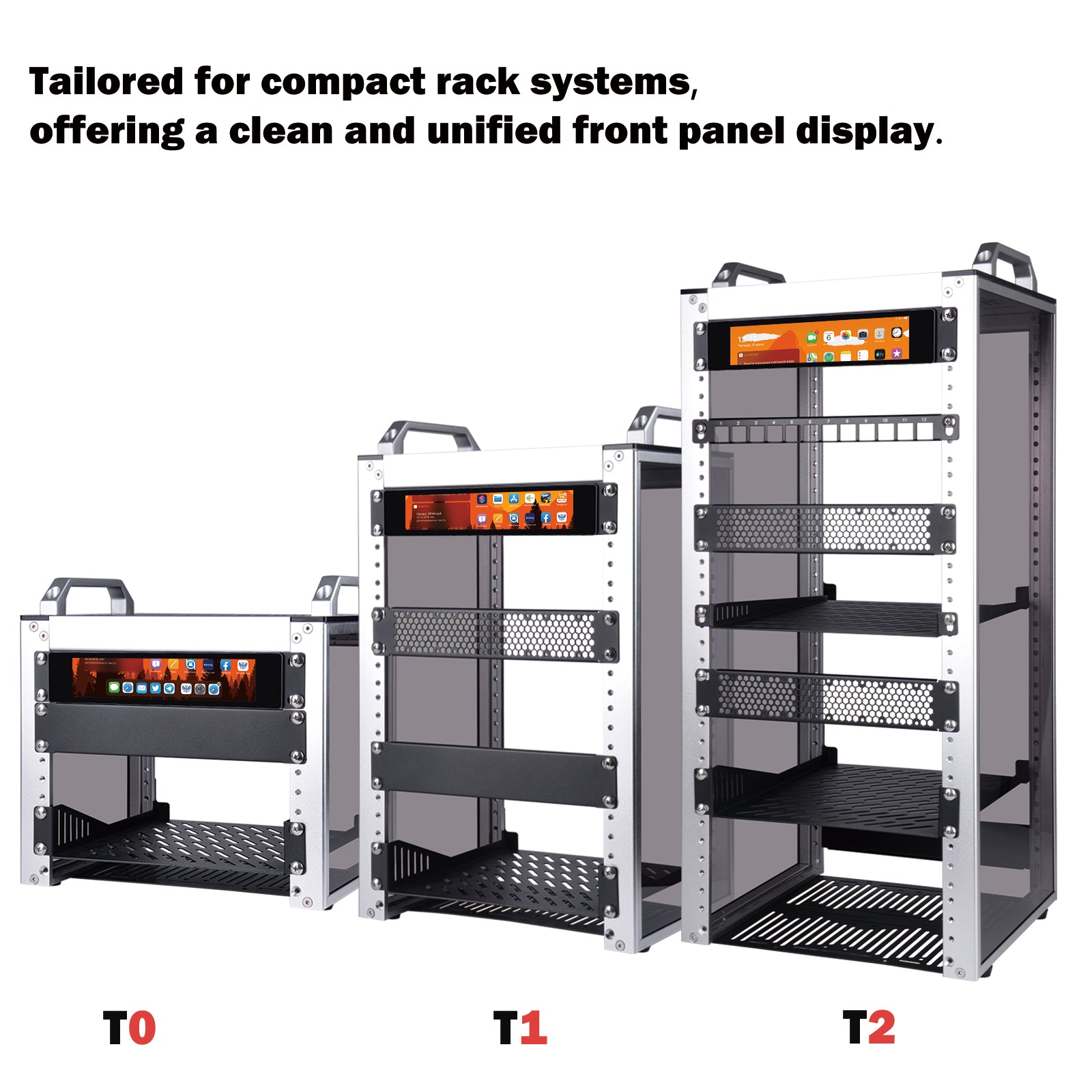

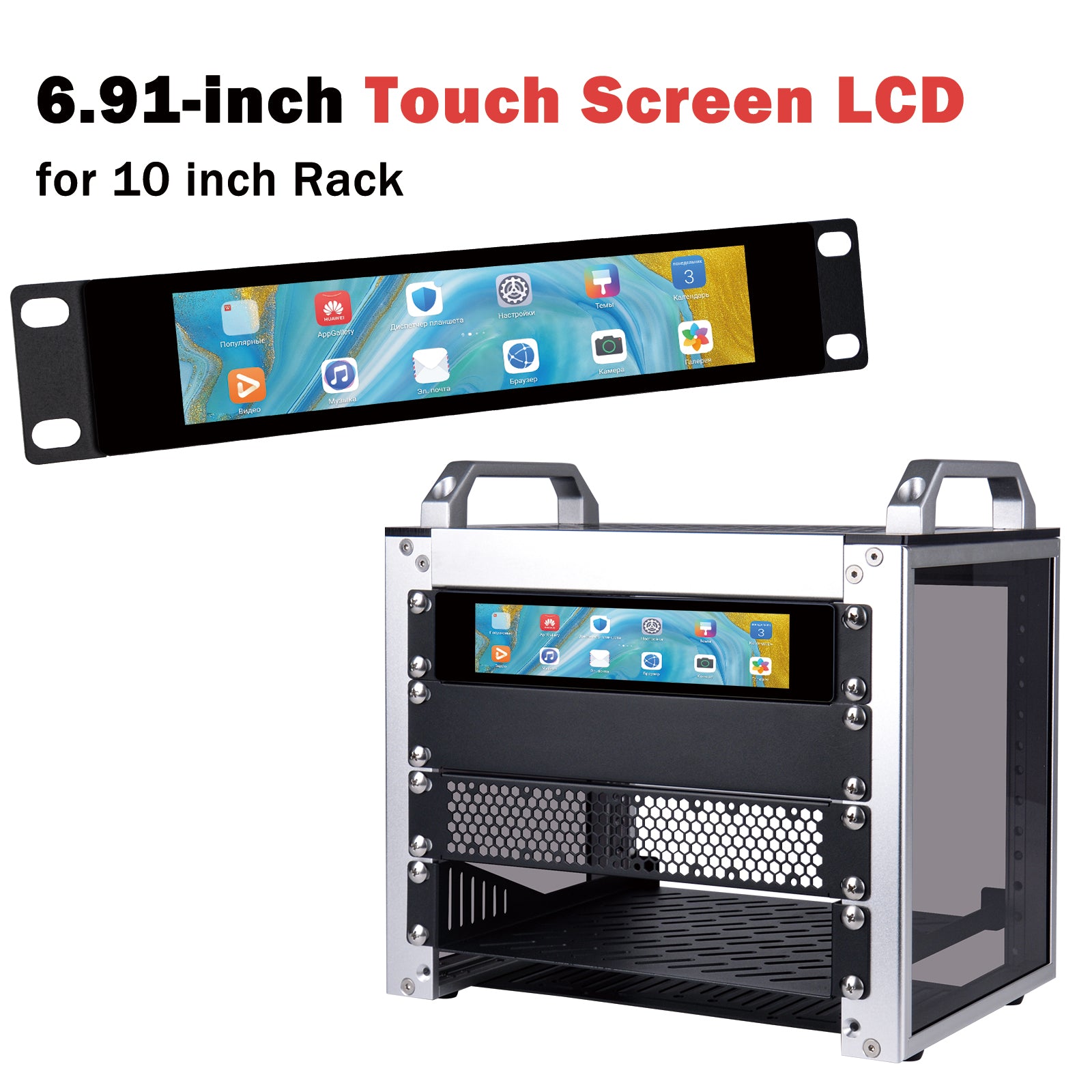

• Compatible with DeskPi RackMate Series: Specifically designed for RackMate T0/T1/T2 Server Cabinets, ensuring perfect integration and ease of installation.

Specifications:

• Screen Size: 6.91 inches
• Resolution: 1424 (H) × 280 (V)
• Aspect Ratio: 5.09:1
• Viewing Angles: 178 degrees
• Brightness: 400 cd/m²
• Contrast Ratio: 800:1
• Response Time: 50 ms (typ.)
• Display Colors: 16.7M (8-bit)

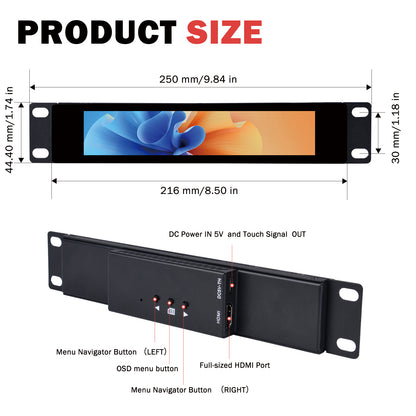

• Active area: 170.88 × 33.6 mm
• Power supply: DC 5 V ± 5 %, 1 A (≤ 4 W average)
• Operating Temperature: -10°C to +50°C

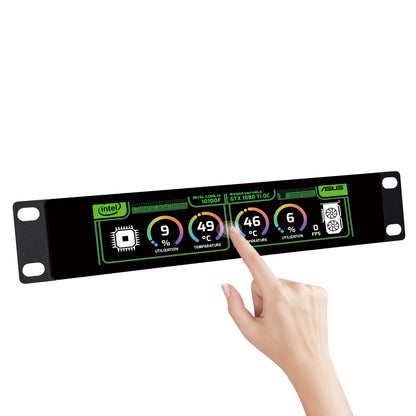

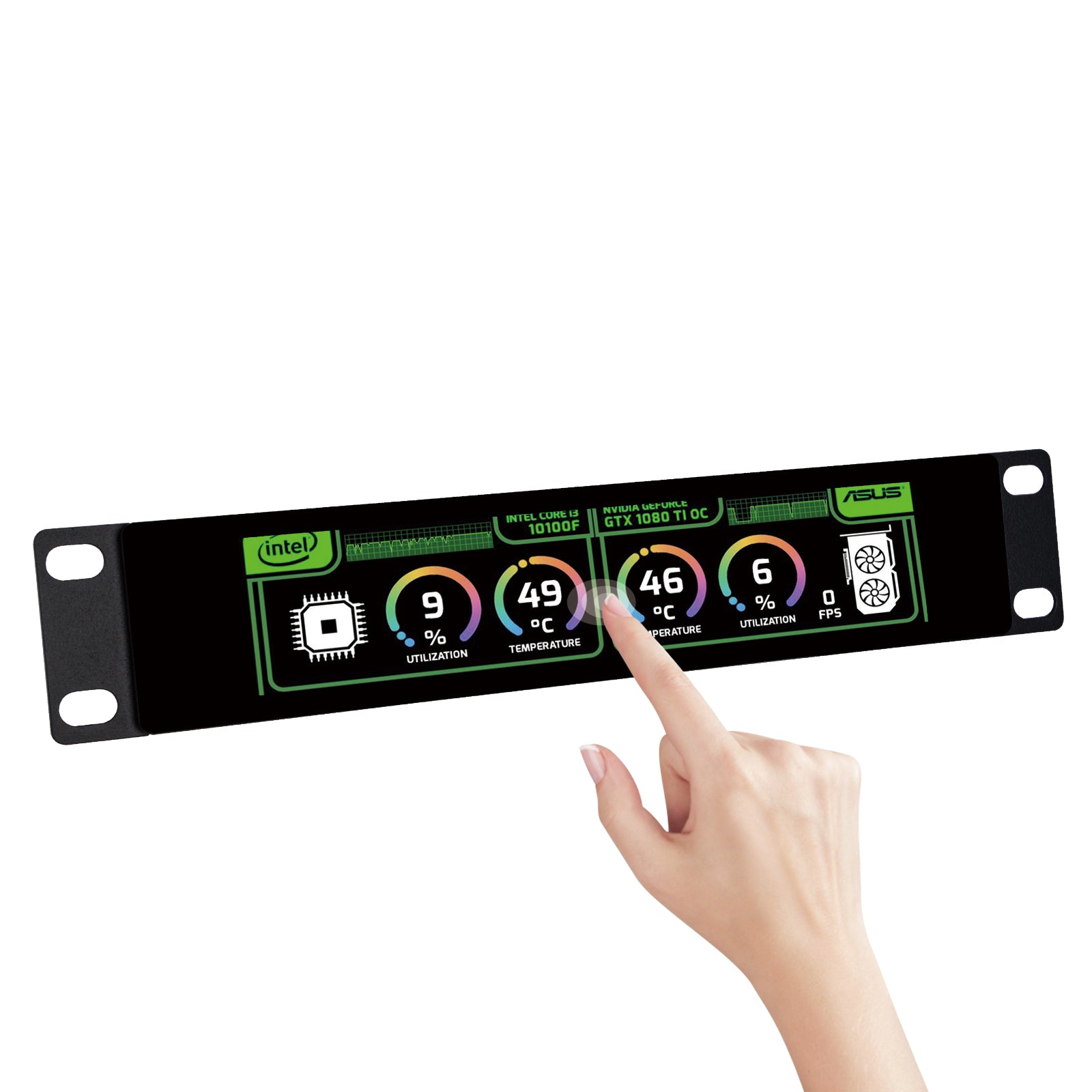

• Touch Technology: Capacitive 10-point touch

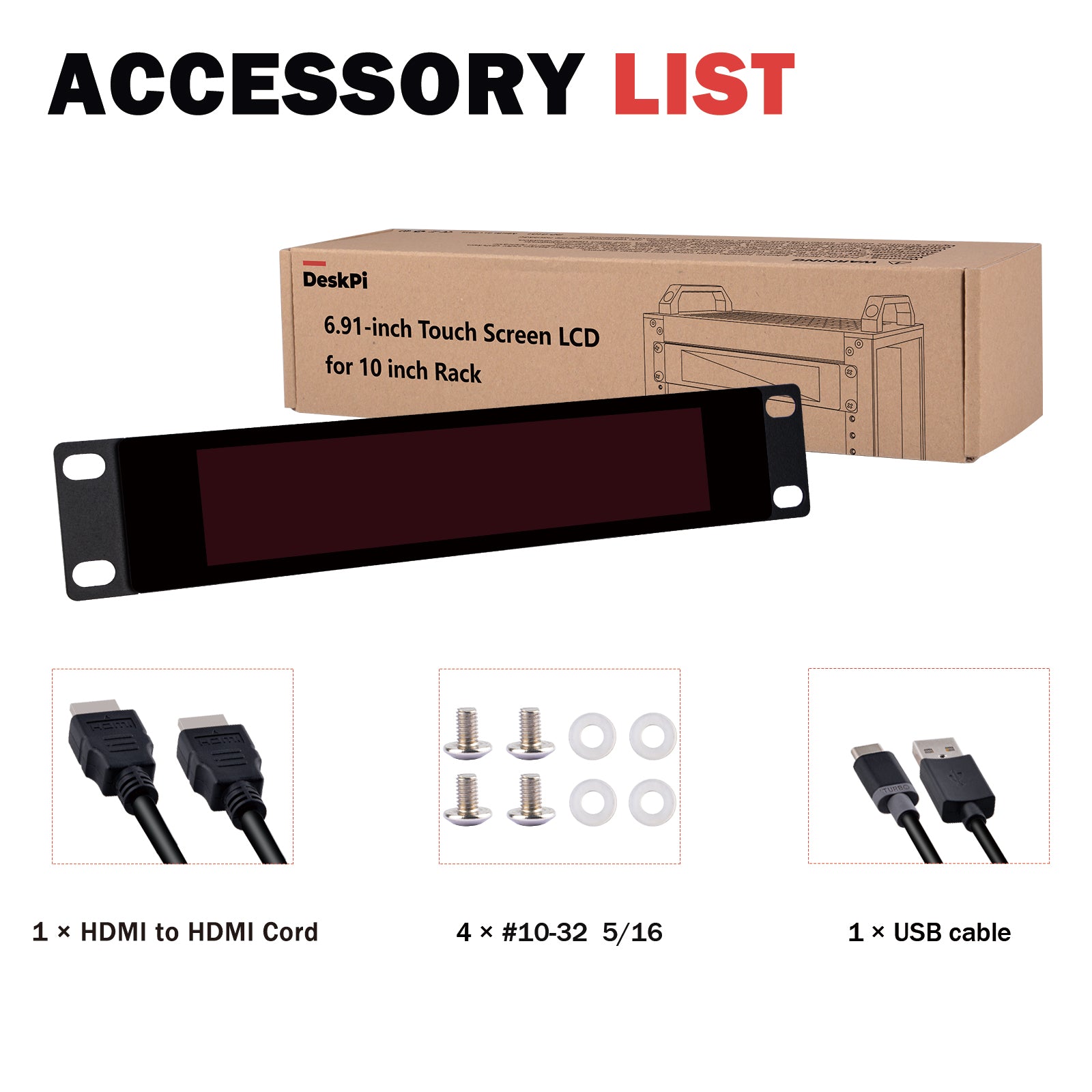

Package Includes:
