Description

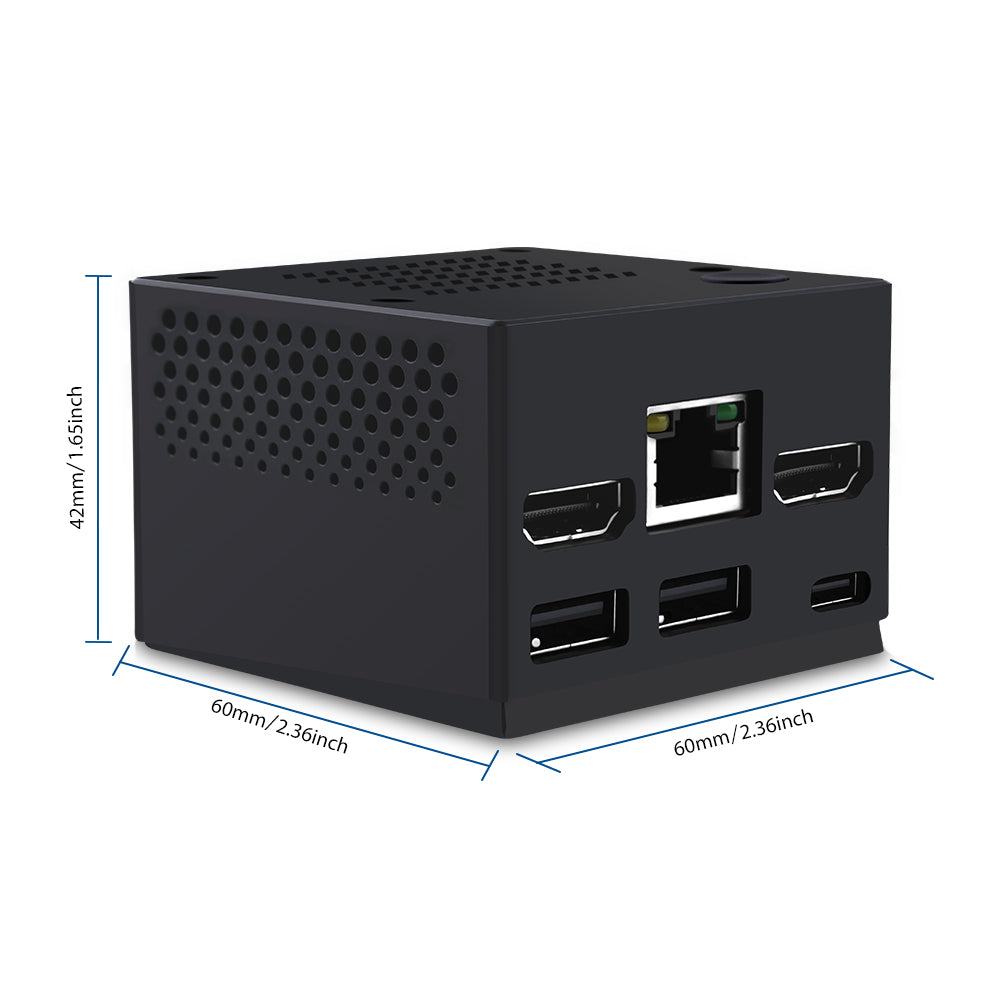

DeskPi Mini Cube for Raspberry Pi CM4 is a case with a miniature appearance and extremely portable features.
Note: It is compatible with Raspberry Pi CM4 and CM5.
The device provides a mini aluminum alloy radiator and integrates a silent fan that supports PWM speed regulation.
The bottom board provides a wealth of interfaces, supporting dual full-size HDMI interfaces, RJ45 Ethernet interfaces, 2x OTG USB port (dwc2 Overlay needs to be configured to enable it), and one PCIe interface supports M.2 NVME SSD M-KEY 2242 external storage.

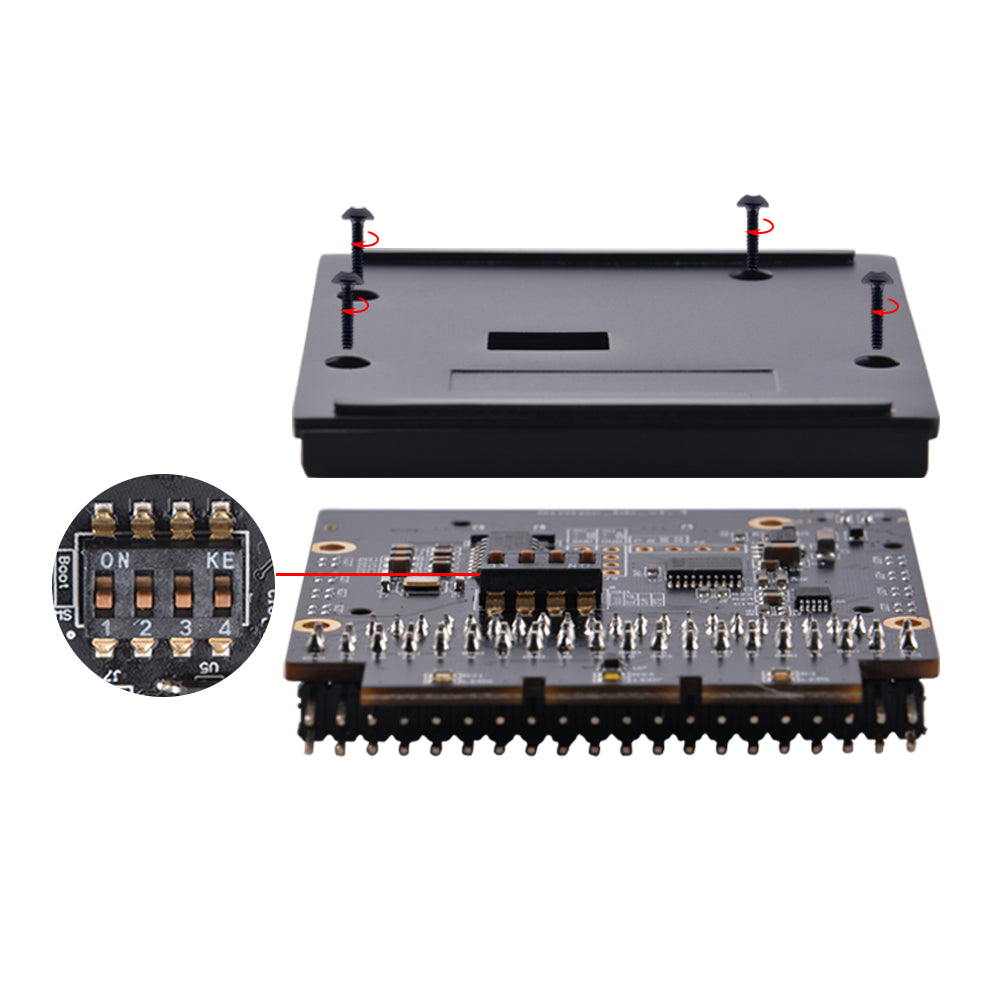

The DIP switch on the back provides the special pins needed to configure the Raspberry Pi CM4 module. (On Compute Module 4 EMMC-DISABLE / nRPIBOOT (GPIO 40) must be fitted to switch the ROM to usbboot mode.)
Otherwise, the SPI EEPROM bootloader image will be loaded instead.
The 40Pin GPIO lead out and reserved RTC clock battery interface.
Features
- Integrated design
- Aluminum alloy radiator with PWM adjustable speed fan
- Power button
- 2 x Full-size HDMI ports
- 2 x OTG USB2.0 port

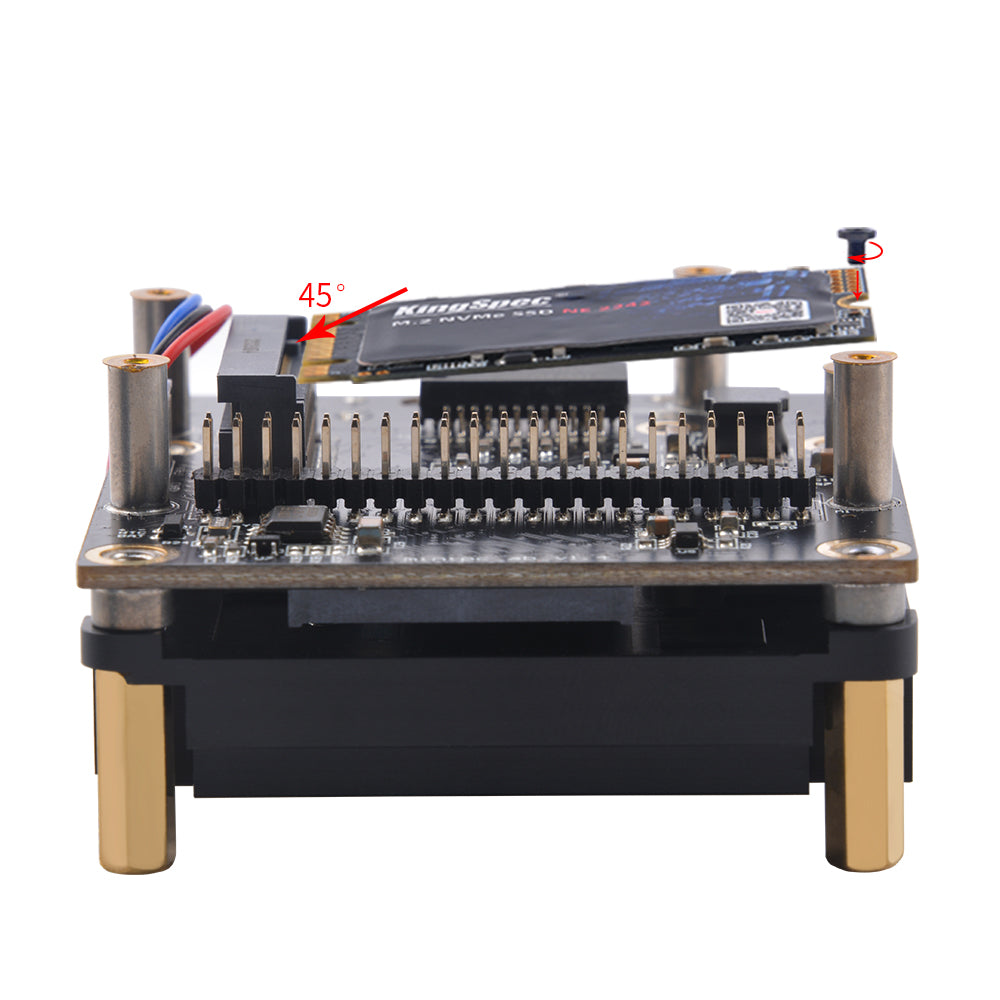

- 1 x PCIe M.2 NVME M-KEY 2242 SSD slot
- 1 x 40 Pin GPIO lead out
- 1 x DIP switch for mode change (CM4 function change)
- 1 x Onboard PCF85063 I2C RTC module
- 5V USB-C Port Power IN
Gallery
-
Product Outlook

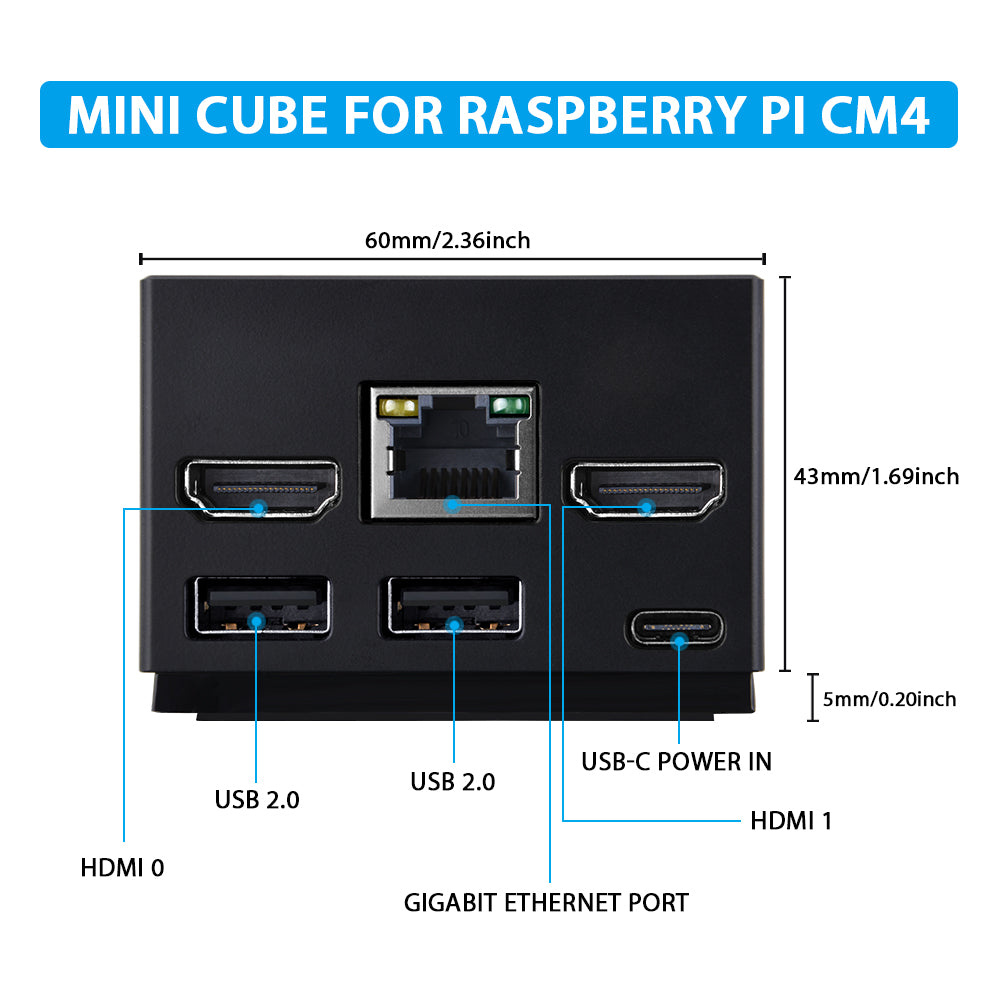

- Ports Definitions

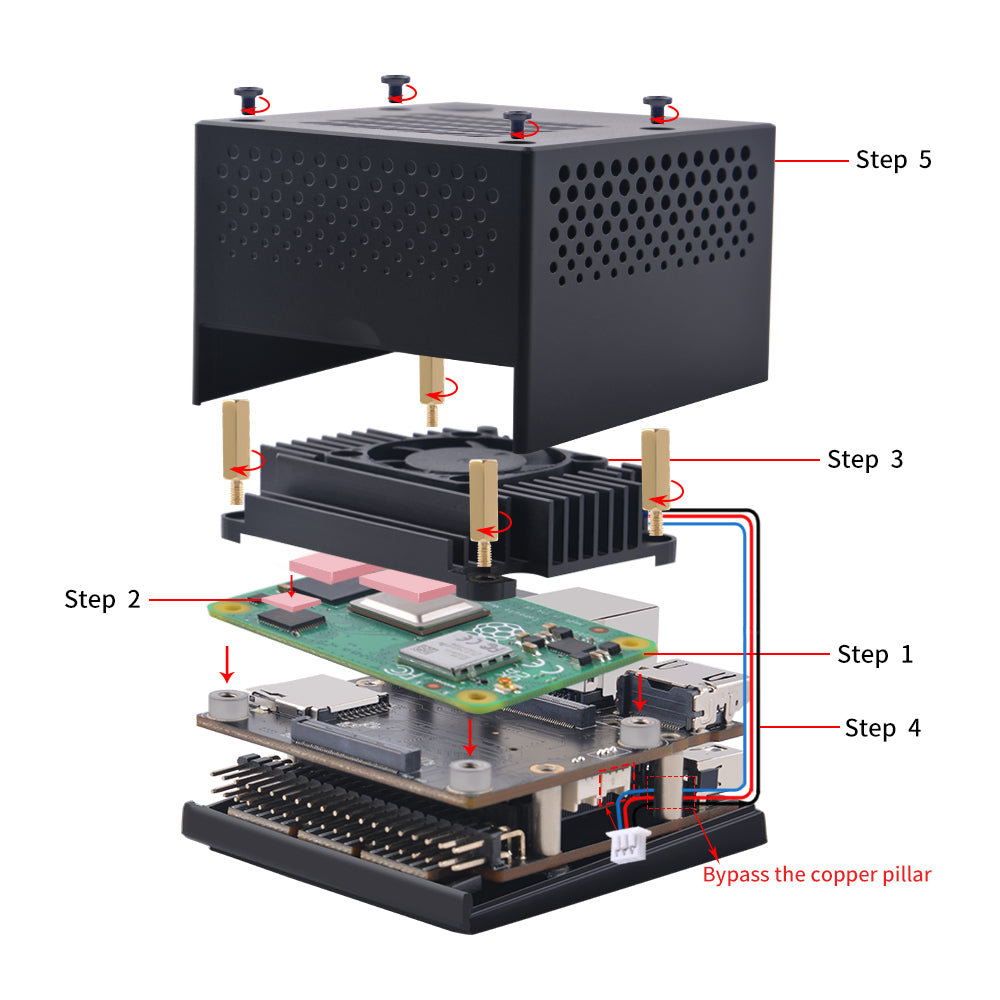

- Inside of Mini Cube
-

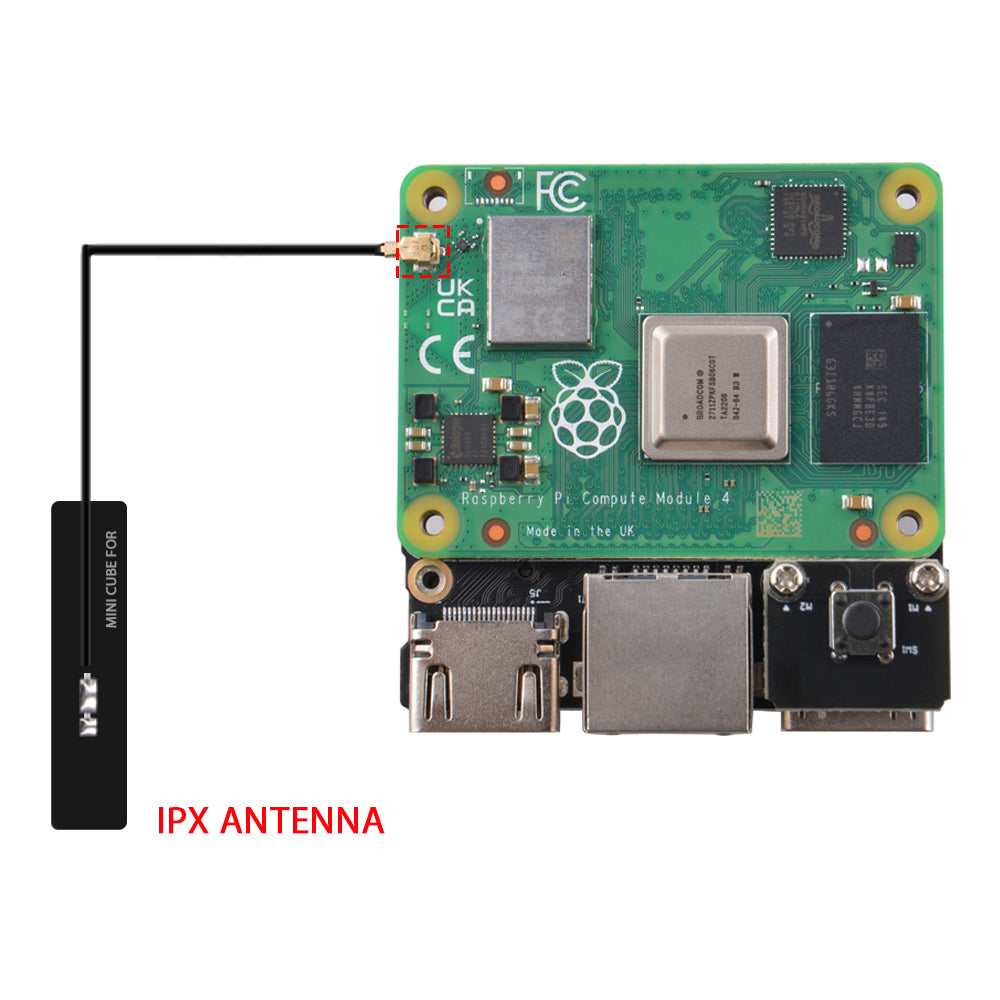

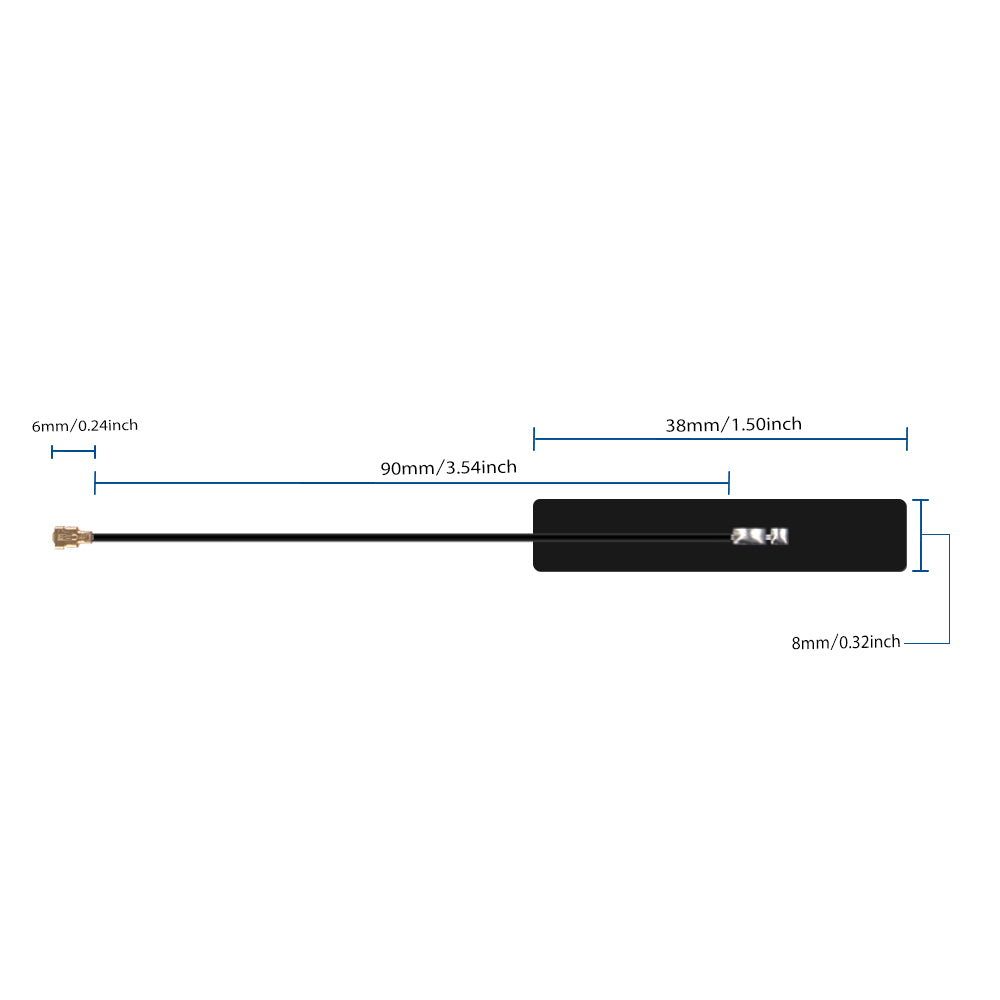

IPX antenna specifications
- Centre Frequency: 2400-2500MHz & 4900-5900MHz
- Connector: IPEX1
- Lead Length:
- Antenna Element Length: mm (+/- 1mm)
- Antenna Element Cable: 1.13 Coaxial cable, with plastic coating.
- Impedance: 5Ohm.
- Gain: About 3 dBi.
Package Includes
- 1 x DeskPi Mini Cube for Raspberry Pi computer module 4
