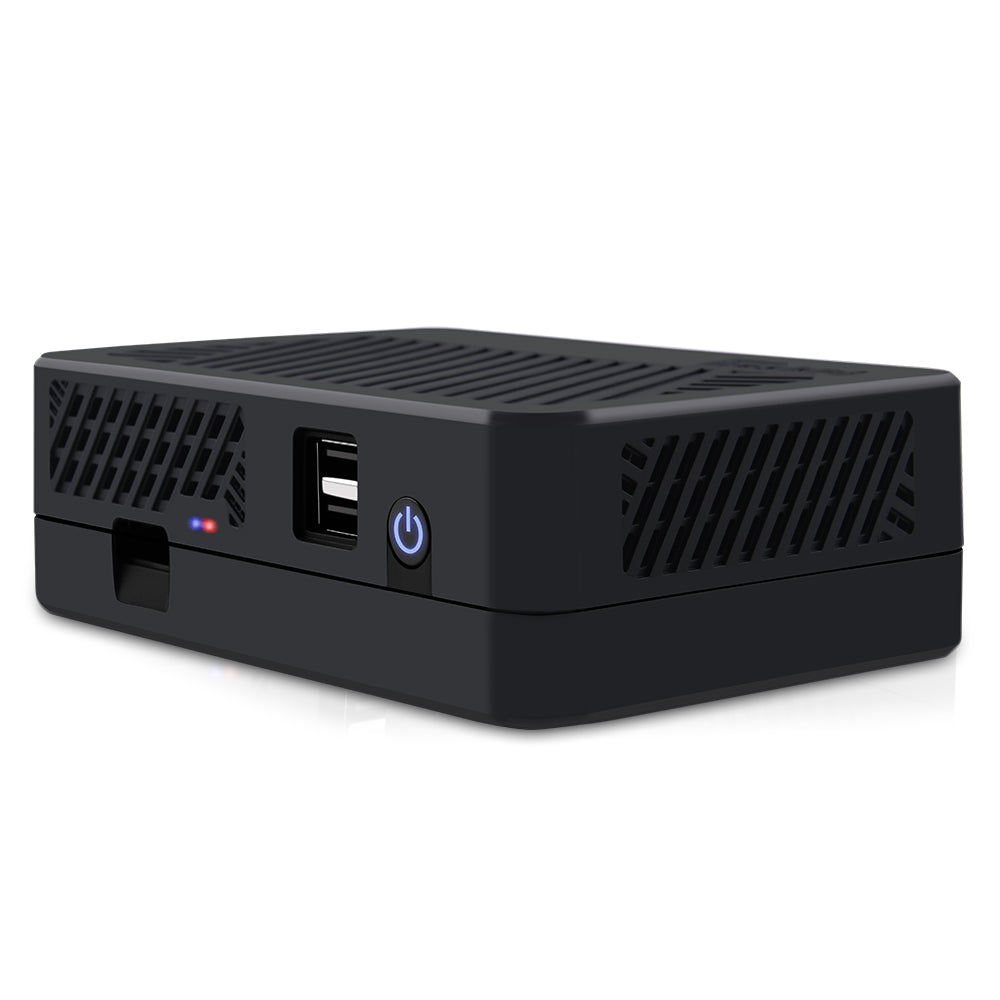

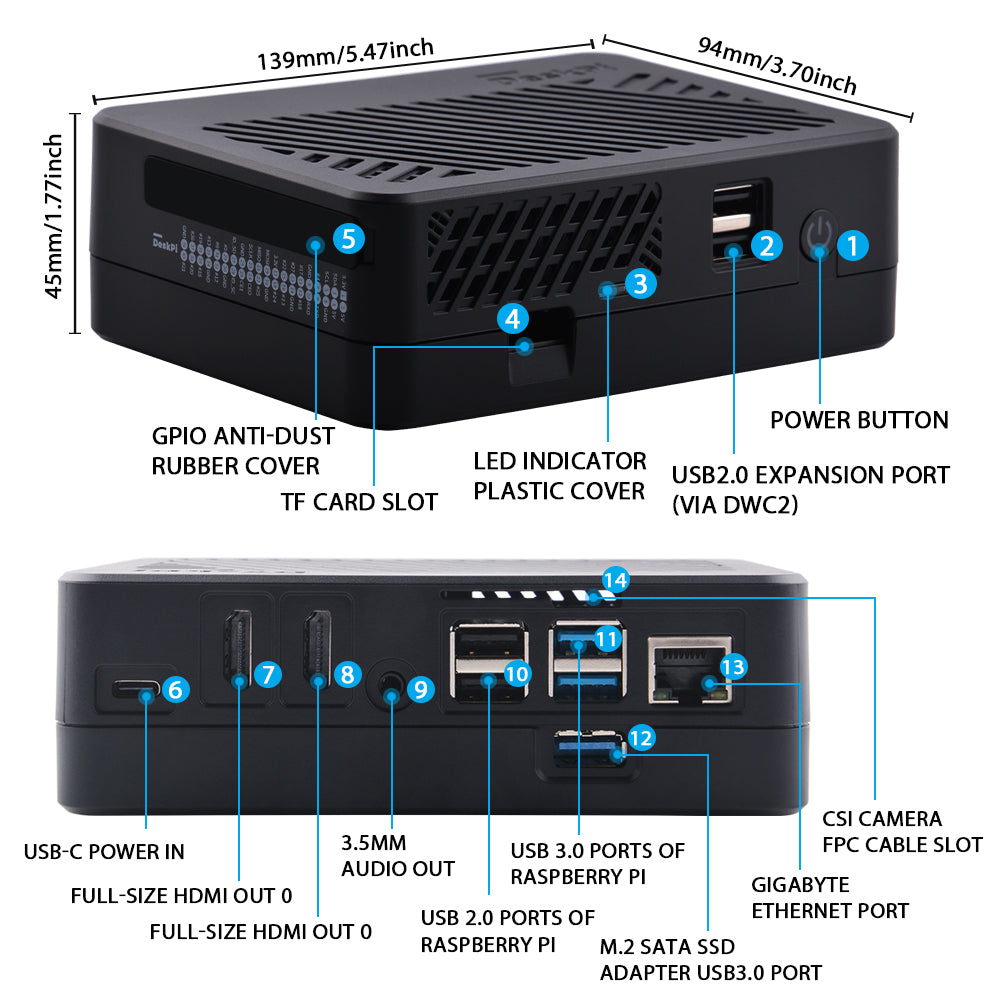

DeskPi Lite M.2 Case with M.2 SATA SSD Expansion Board for Raspberry Pi 4B, with Power Button/ Heatsink with PWM Fan/ Dual Full-Size HDMI/Extra Two USB Ports

WiKi: https://wiki.deskpi.com/deskpi_lite_nas_case/

Description

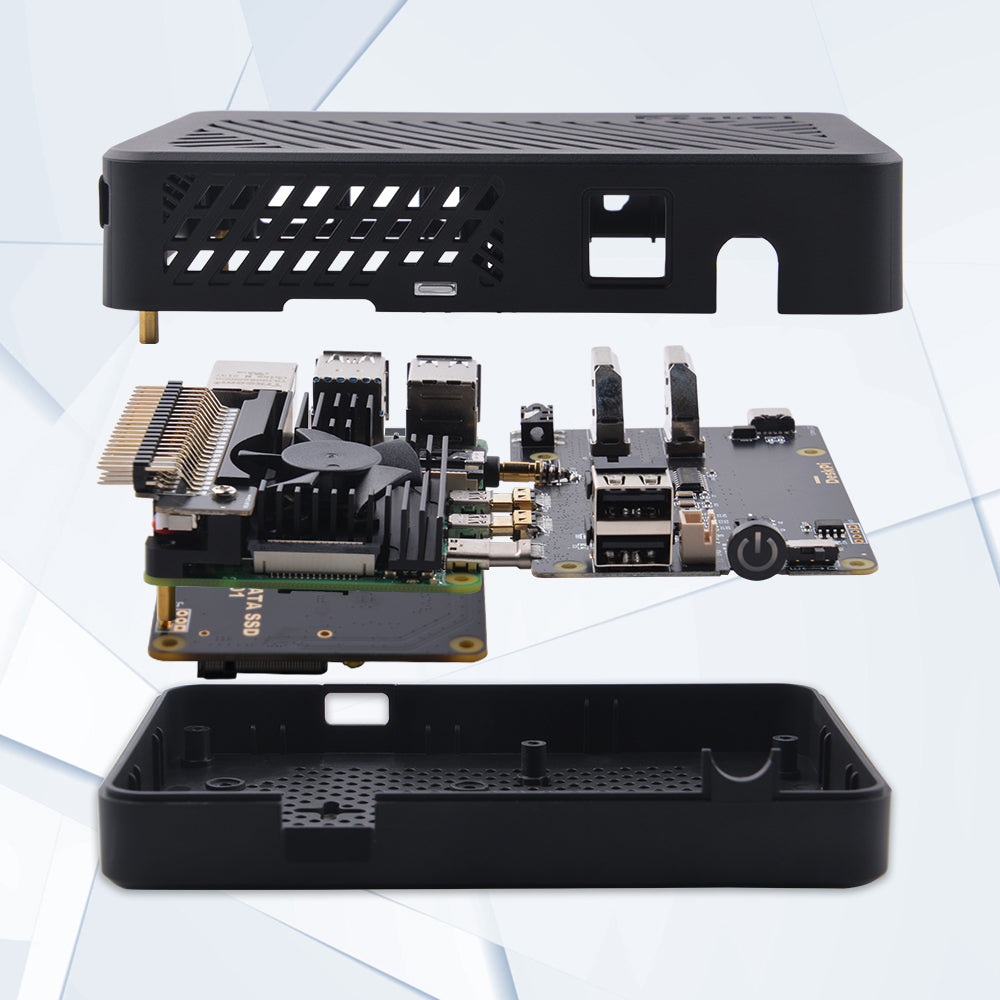

The DeskPi Lite NAS is an ABS case with an integrated M.2 SATA SSD expansion board, a cooling heatsink, and a PWM signal controlled fan. This case provides reliable protection for your NAS components, efficient heat dissipation, and the flexibility to adjust fan speed according to your requirements. It is a practical and functional solution for expanding storage capacity while maintaining optimal performance in your NAS system.

Product Features

• ABS Case: The DeskPi Lite NAS features a sturdy ABS (Acrylonitrile Butadiene Styrene) case that provides durability and protection for your M.2 SATA SSD expansion board and other internal components. ABS is known for its strength and impact resistance, making it an ideal material for this type of case.

• M.2 SATA SSD Expansion Board: The case is designed with an integrated M.2 SATA SSD expansion board, allowing you to easily install and securely mount an M.2 SATA SSD(NOT for NVME or anything else). This expansion board provides additional storage capacity for your NAS setup, enhancing its versatility and performance.

• Cooling Heatsink: To maintain optimal operating temperatures for the M.2 SATA SSD and other components, the DeskPi Lite NAS incorporates a cooling heatsink. The heatsink efficiently dissipates heat generated during extended operation, preventing overheating and ensuring the reliable performance of your NAS system.

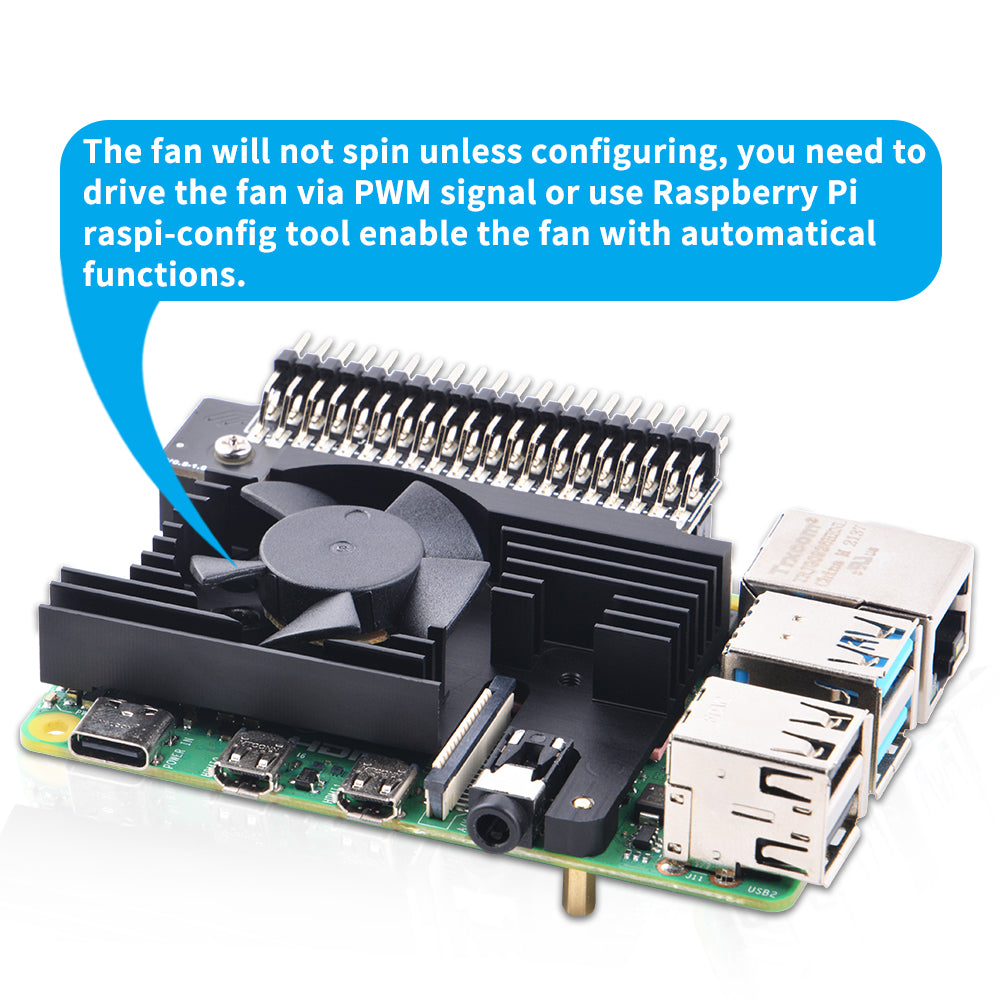

• PWM Signal Controlled Fan: The cooling heatsink is accompanied by a PWM (Pulse Width Modulation) signal controlled fan. This fan is capable of dynamically adjusting its rotational speed based on temperature requirements. By monitoring the system temperature, the fan can automatically increase or decrease its speed to provide effective cooling while minimizing noise levels.

• Adjustable Fan Speed: The PWM signal controlled fan allows you to adjust the fan speed manually, providing flexibility in balancing cooling performance and noise levels according to your preferences. This feature enables you to optimize the cooling efficiency of your DeskPi Lite NAS while maintaining a quieter environment.

• Efficient Airflow: The combination of the cooling heatsinks and the PWM signal controlled fan ensures efficient airflow within the case. This airflow helps to dissipate heat effectively, keeping the M.2 SATA SSD and other components within the optimal temperature range, even during demanding usage scenarios.

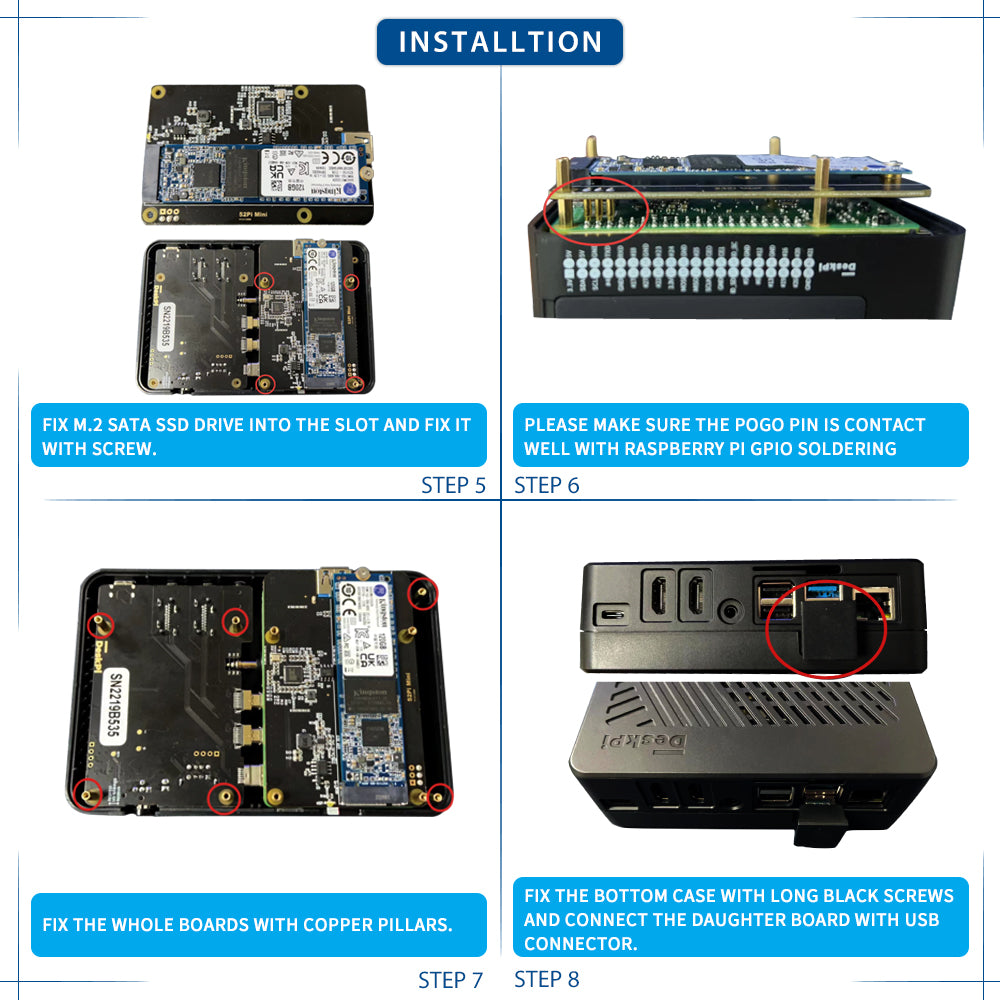

• Easy Installation: The DeskPi Lite NAS is designed for straightforward installation. It typically includes all the necessary mounting hardware and connectors, making it easy to assemble and integrate with your existing NAS setup.

• M.2 SATA SSD Adapter board (Support M.2 SATA SSD B-KEY Only)

  Compatibility

  • Raspberry Pi 4 model B Only

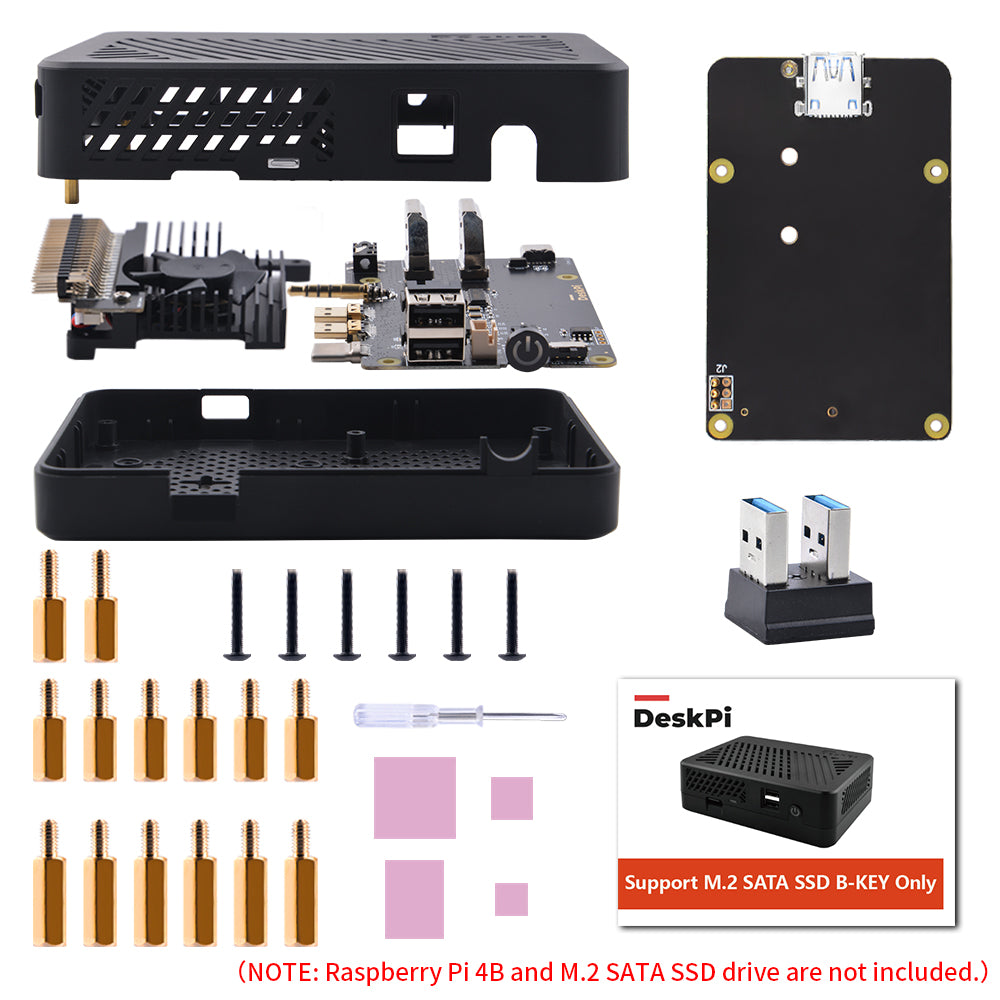

  Box Content

  • 1 x DeskPi Lite NAS Case
  • 1 x M.2 to SATA SSD adapter board
  • 1 x USB3.1 Connector
  • 1 x Instruction Manual

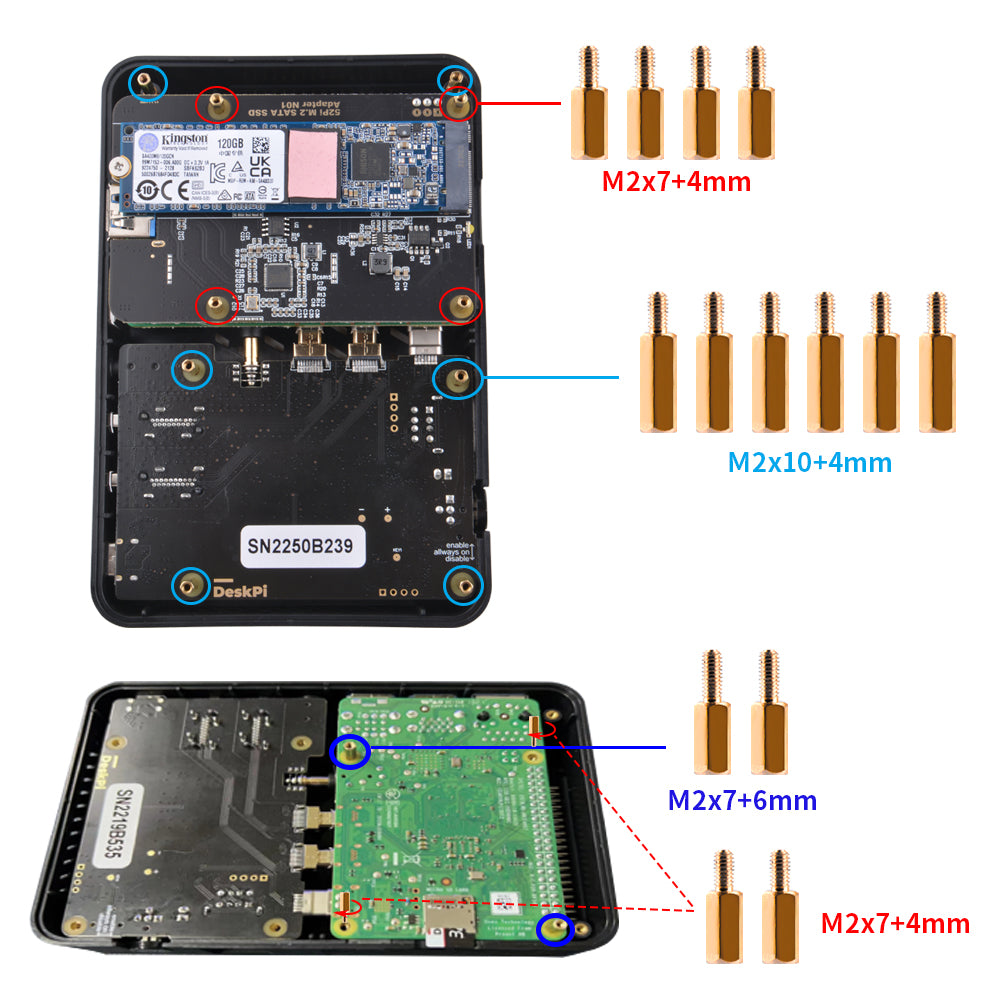

  • 2 x M2x7+6mm Copper pillar (For fixing Heatsink)
  • 6 x M2x7+4mm Copper pillar (For fixing M.2 SATA SSD Adapter board)
  • 6 x M2x10+4mm Copper pillar (For fixing DeskPi Lite daughter board
  • 6 x M2x12 Black Long screw(For fixing whole case)
  • 4 x Thermal pad
