WiKi: https://wiki.deskpi.com/picomate/



Introduction

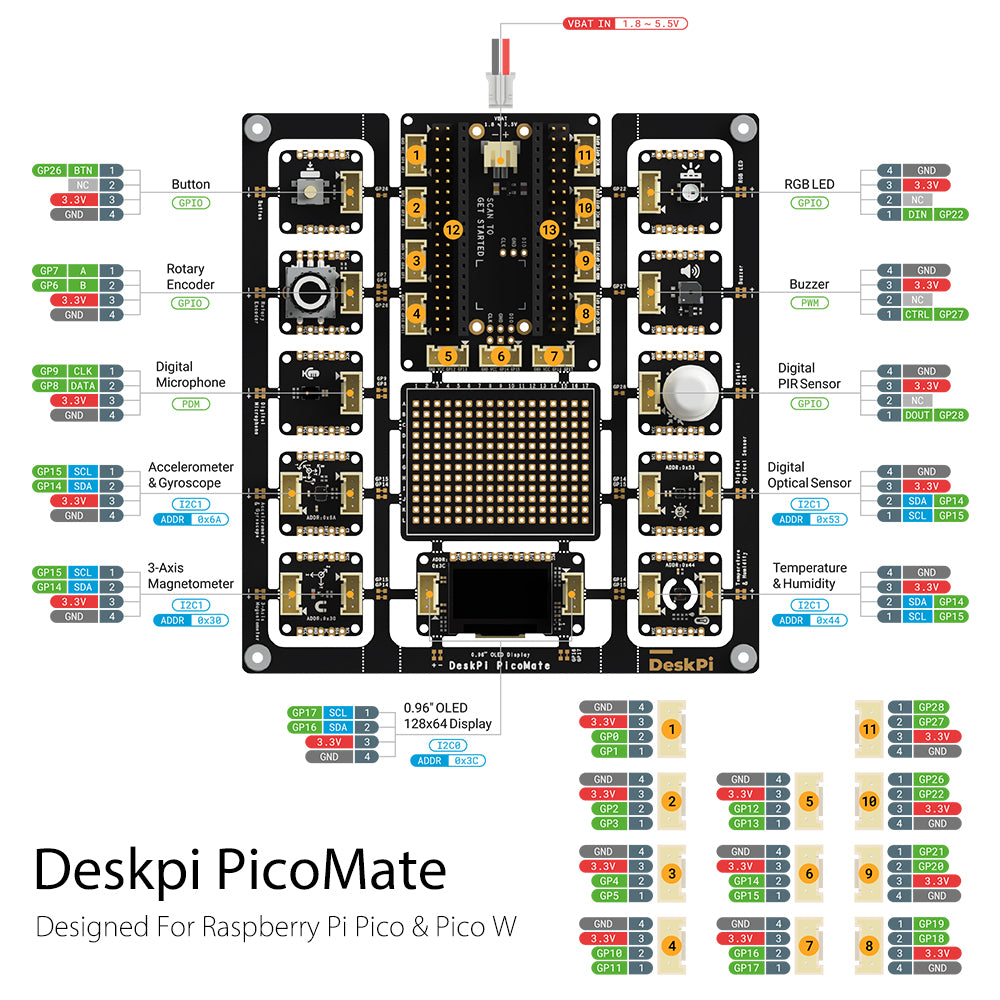

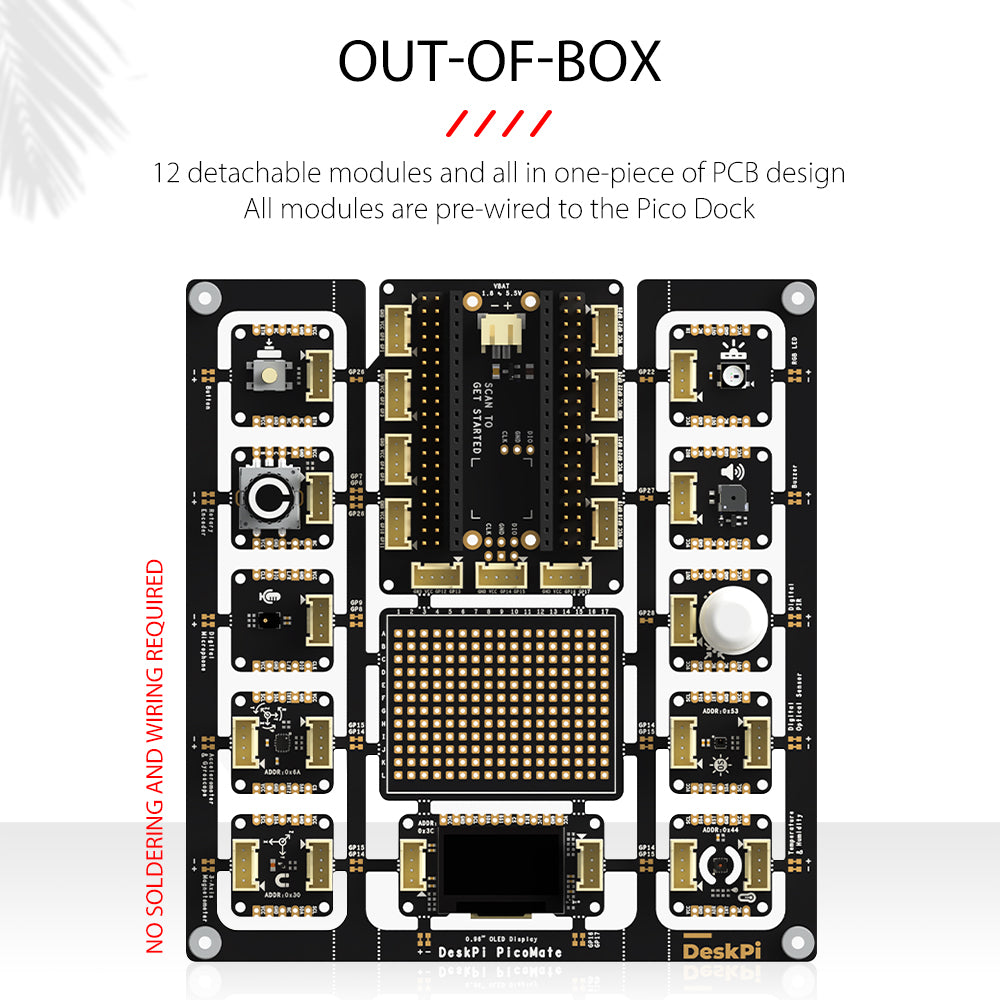

DeskPi PicoMate is an all-in-one and versatile prototyping kit designed for Raspberry Pi Pico and Pico W. It includes one expansion dock for Raspberry Pi Pico and Pico W, 12 detachable modules and all in one-piece of PCB design. All modules are pre-wired to the Pico Dock, no soldering and wiring required and out-of-box. Of course, you can also detach the modules and connect them using the cables included in the box.


Key Features

  • Designed for Raspberry Pi Pico and Pico W
  • All modules are pre-wired, no soldering and wiring required and out-of-box

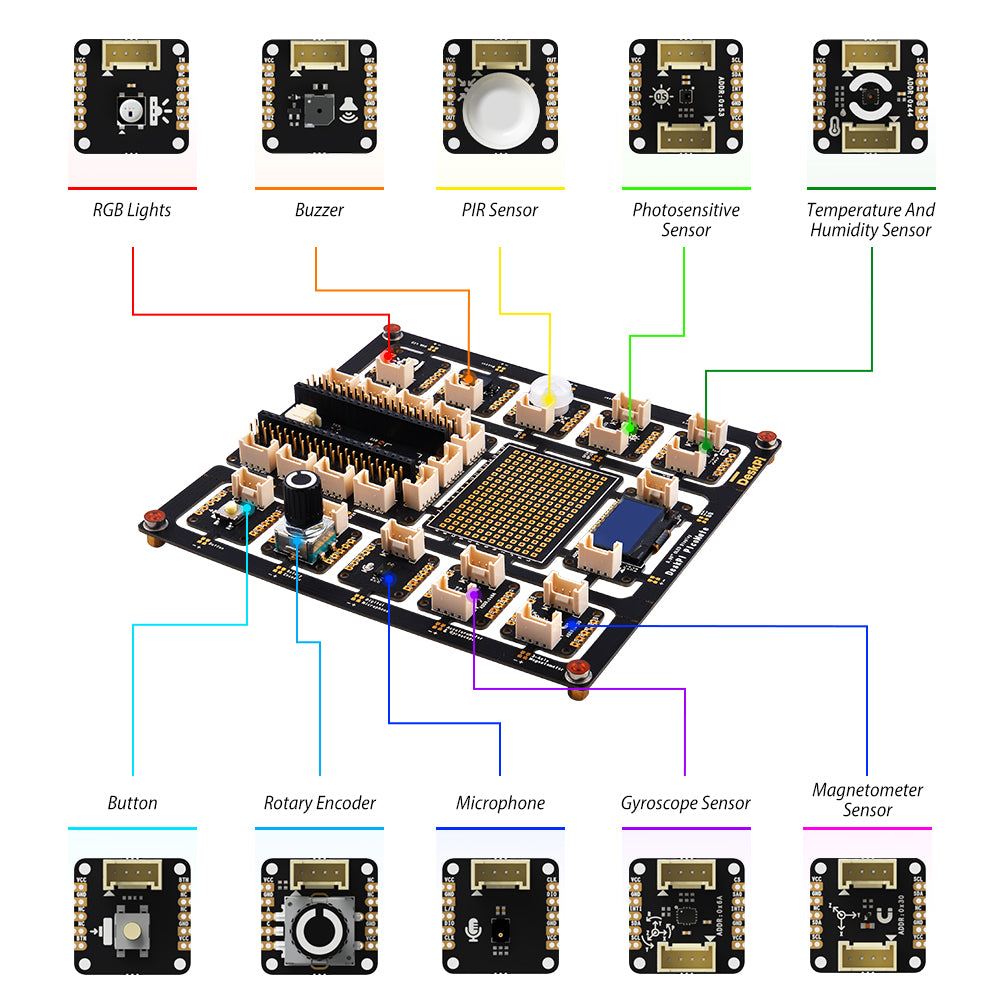

  • 12 detachable and easy-to-use modules:
    • Push Button

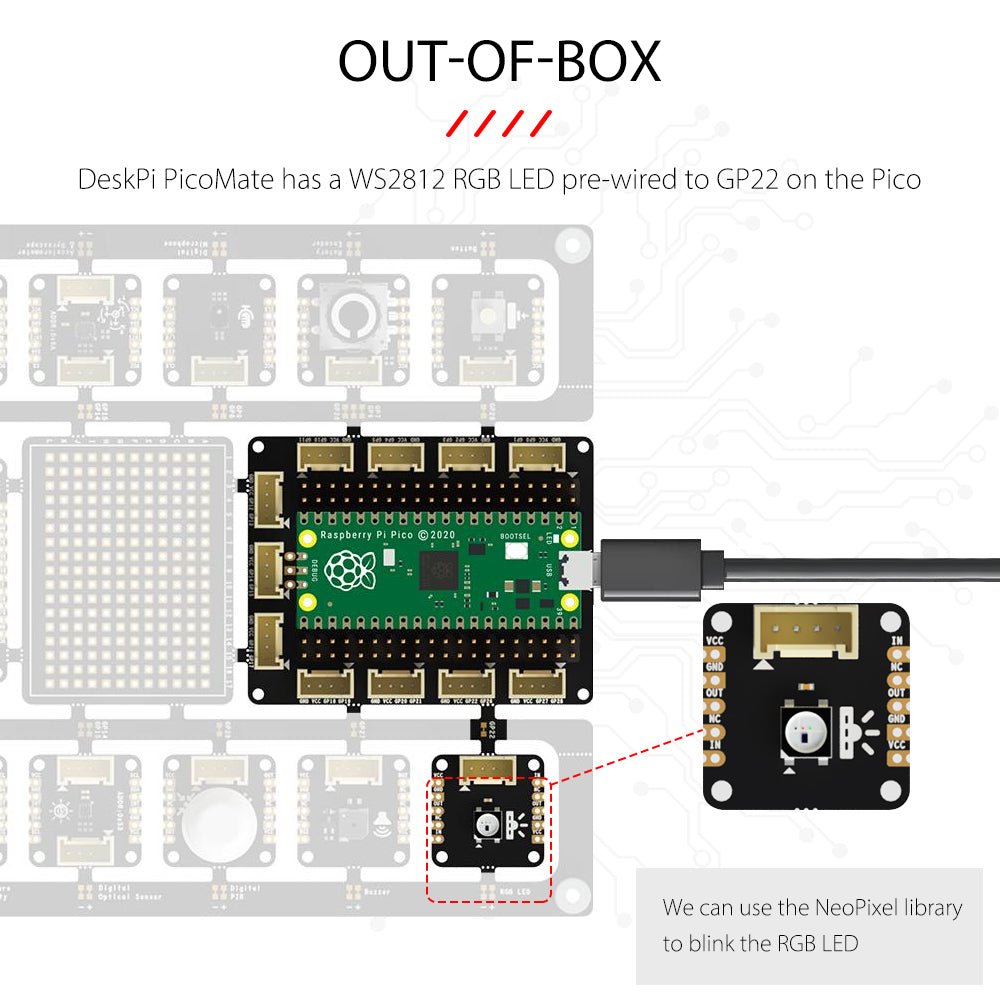

    • WS2812 RGB LED
    • Rotary Encoder
    • Buzzer
    • Digital Microphone (ZTS6531S)
    • Digital PIR Sensor (AS312)
    • 6-Axis IMU Sensor (LSM6DS3TR-C)
    • Digital Optical Sensor (LTR-381RGB-01)
    • 3-Axis Magnetometer (MMC5603NJ)
    • Temperature & Humidity Sensor (SHT30-DIS)
    • 0.96” 128x64 OLED Display (SSD1315)
    • 204 Pins Breakout Board

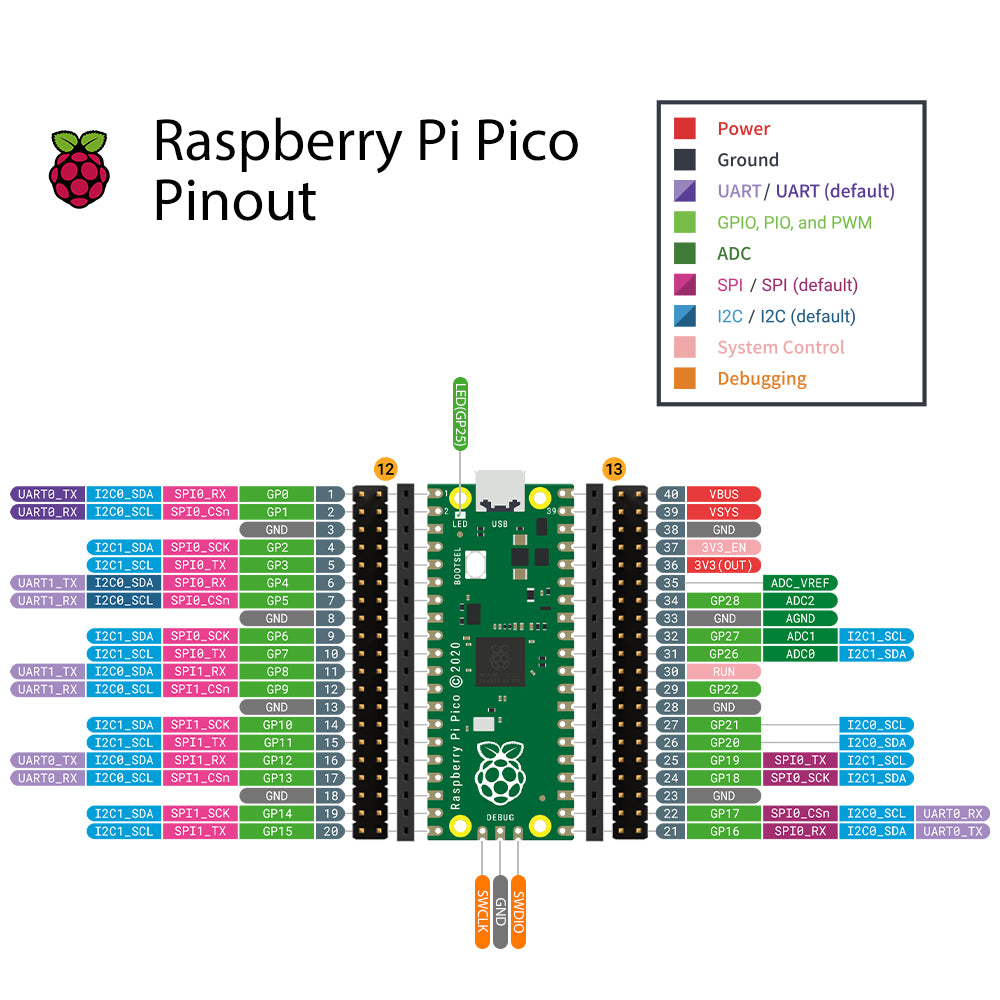

  • All Pico GPIOs available via headers and up to 11 Grove connectors available

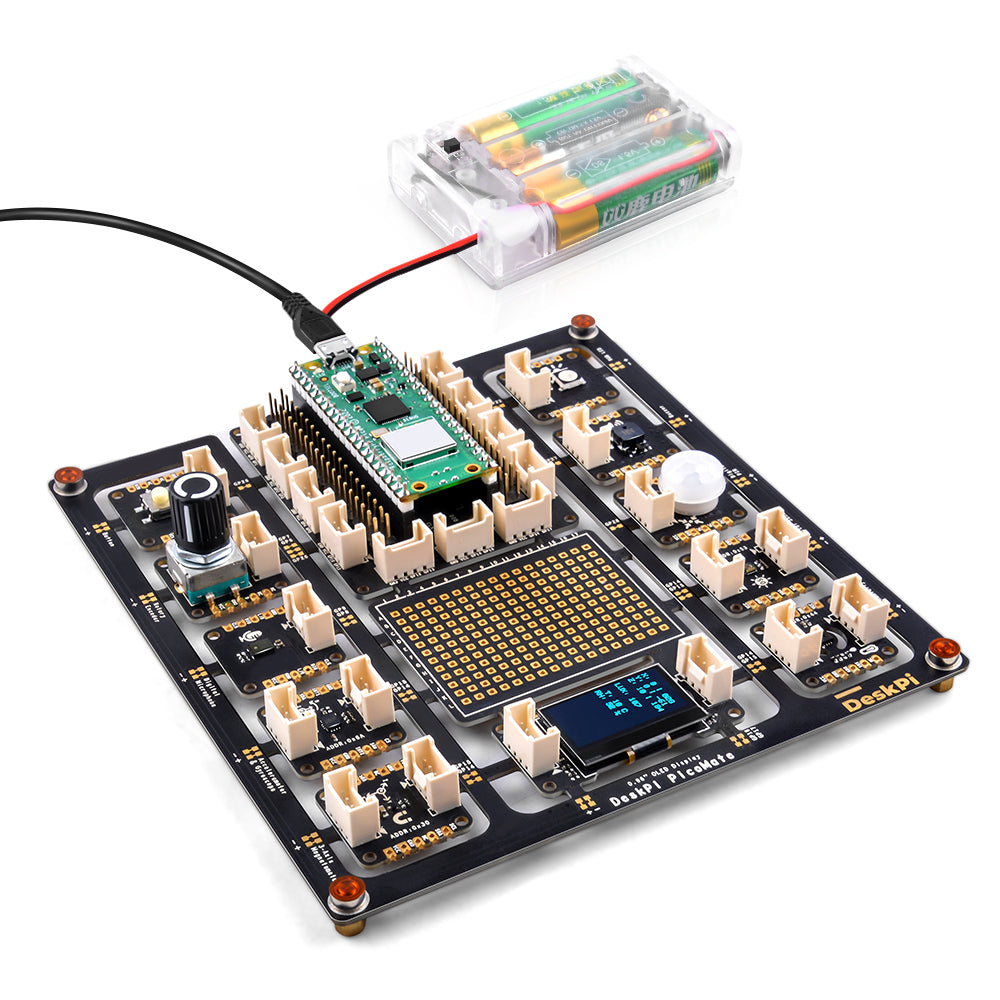

  • Built-in battery connector for on-the-go projects
  • MicroPython libraries support for all modules
  • 3.3V IO operating voltage

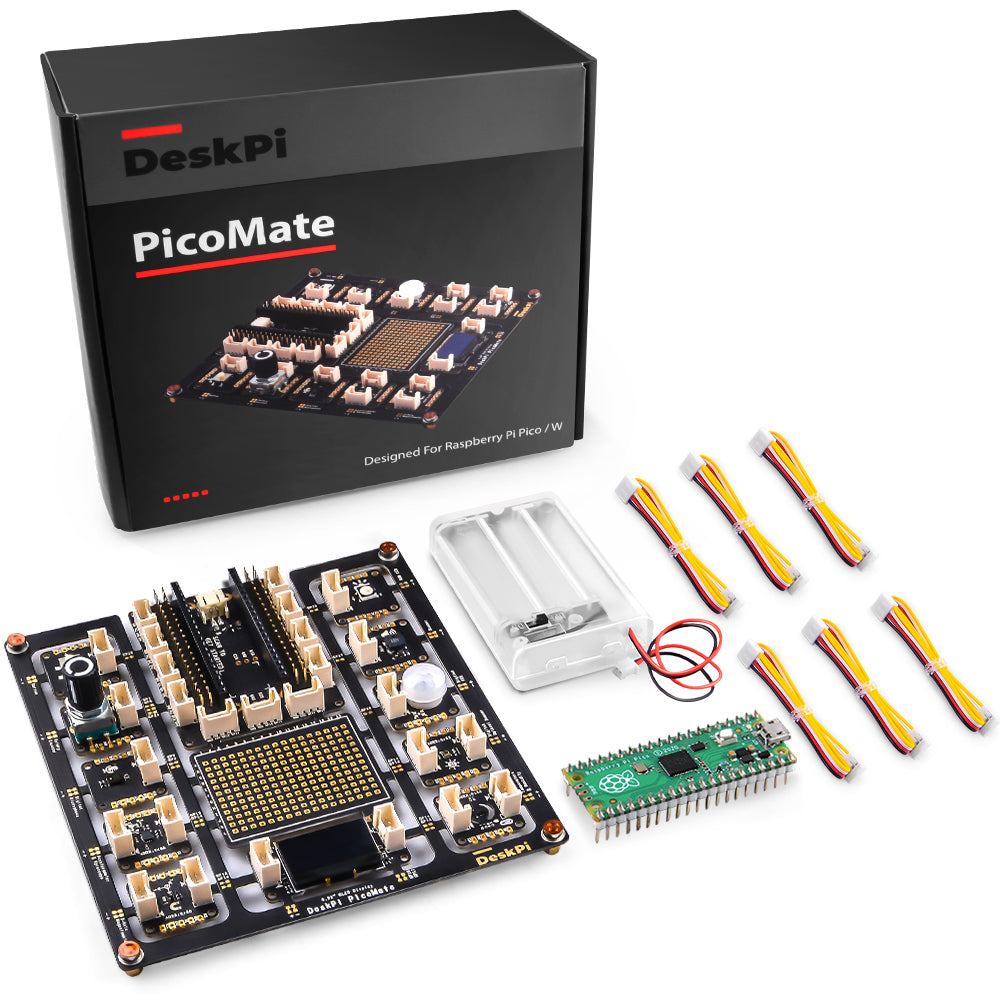

What's included

  • 1x DeskPi PicoMate
  • 1x Raspberry Pi Pico Board with pre-soldered pin headers
  • 1x 3*AA Battery Holder with On/Off Switch
  • 6x Grove Cable
  • 1x Micro USB Cable
  • 1x User Manual
