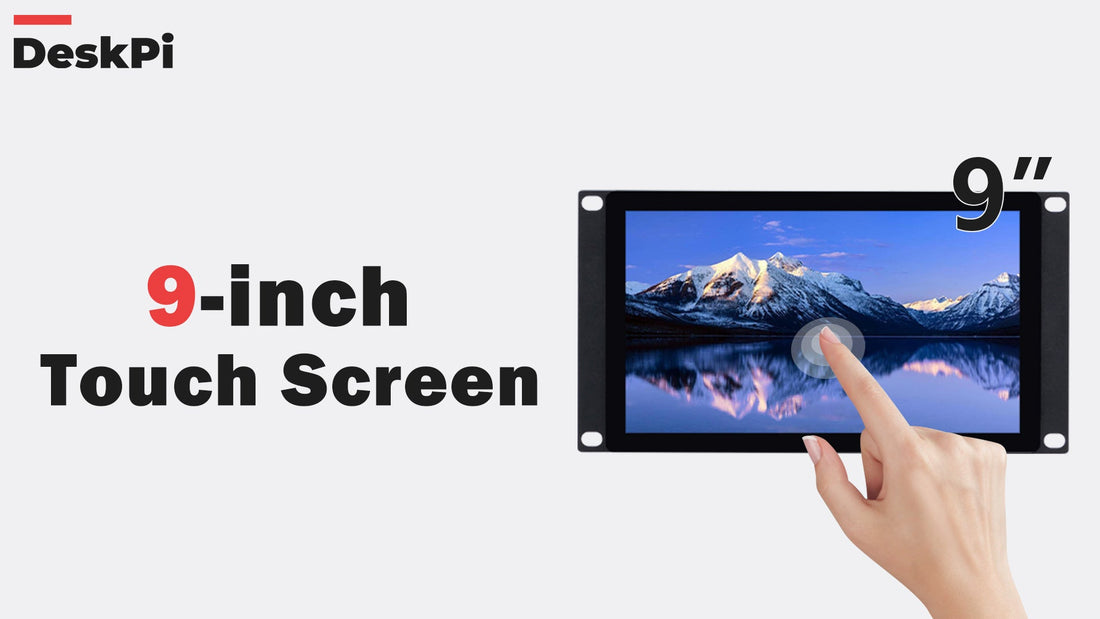

DeskPi 9-inch Touch Screen 1280X720 TFT LCD Display

Product Name: DeskPi 9-inch Touch Screen 1280X720 TFT LCD Display

Product SKU: DP-0100

Product: DeskPi 9 Inch 1280X720 TFT LCD Touch Screen 10 inch 3U Rack Mount Disp – DeskPi Store

Description:

The P9.0 is a 9-inch industrial-grade display with 10-point projected-capacitive (PCAP) multi-touch. Housed in a rugged cold-rolled steel enclosure and cooled by natural convection, it delivers 1280 × 720 resolution, 500 cd/m² brightness and 178° viewing angles. A full set of interfaces (HDMI video, Type-C power & touch, 3.5 mm audio) makes it ideal for kiosk, HMI, embedded and desktop applications. Wall, VESA, or embedded mounting is supported.

Key Features:

• 9" TFT LCD, 16:9, 1280 × 720, 16.7 M colours
• 500 cd/m² brightness, 800:1 contrast, 10 ms response
• 10-point capacitive touch, more than 100 million touches, greater equal 6 H surface hardness, greater than 95 % light transmission
• Cold-rolled steel chassis – shock-proof, EMI-resistant
• Fan-less industrial cooling design
• Auto-power-on when AC present, auto-standby on no-signal
• Multiple installation methods: wall mount, desktop stand, flush-embedded
• Low power consumption less than 10 W average
• Wide operating temperature  -10 °C to +50 °C
• Complete accessory kit: Type-C to USB-A cable, HDMI cable, brackets, screws, user manual



Specifications:

• LCD Panel

Model: Touch P9.0
Screen size: 9 inch diagonal
Resolution: 1280 (H) × 720 (V)  HD
Aspect ratio: 16:9
Brightness: 500 cd/m²
Contrast ratio: 800:1
Display colors: 16.7 M
Response time: 10 ms (typ.)
Viewing angle: 178° (H) / 178° (V)

• Touch Panel

Technology: Projected capacitive, 10-point multi-touch
Surface hardness: greater equal 6 H
Light transmission: greater than 95 %
Click life: greater than 100 million touches
Mainboard
Power consumption:  less than 10 W average
Power input: DC 5 V / 2 A
Connectors:
Type-C1: 5 V and Touch out
Type-C2: 5 V power in
HDMI: video input
AUX 3.5 mm:  stereo audio out

• Mechanical and Environmental

Active display area: 198.912 (H) × 111.888 mm
Bezel dimensions: 250 × 132 × 34.5 mm (±0.2 mm)
Net weight: approximate 800 g
Color: Black
Operating temperature: –10 °C to +50 °C
Storage temperature: –15 °C to +60 °C
Relative humidity: 5 % – 95 % non-condensing
